Overview

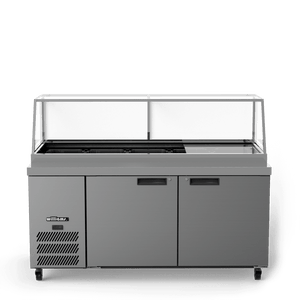

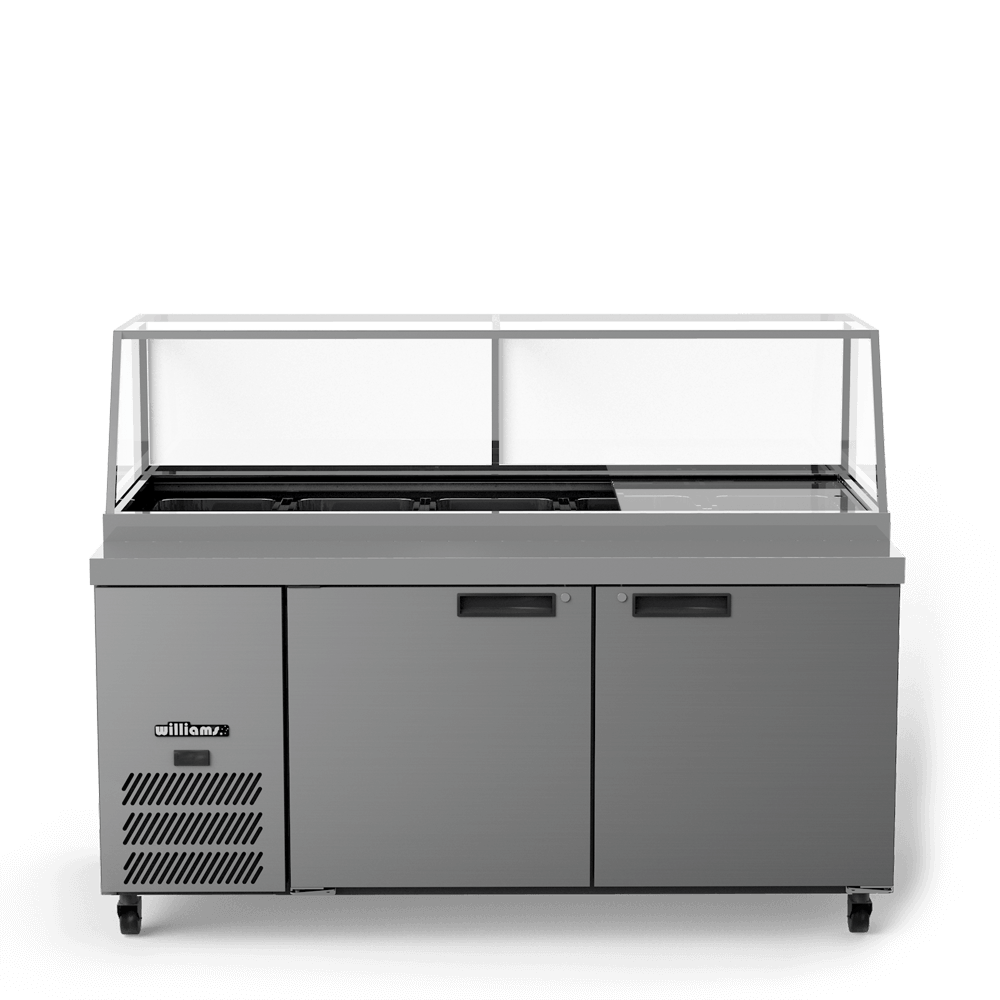

Williams HSP5UBA Banksia 2 Door Refrigerated Prep Counter

The Williams HSP5UBA Banksia is a two-door refrigerated preparation display counter designed and built in Australia to perform reliably in the most demanding commercial kitchen environments. With a 500-litre capacity, 1800 mm width, and a temperature range of +1°C to +4°C, it combines a refrigerated blown-air well for up to 5 x GN 1/1 pans with generous under-counter storage, keeping fresh ingredients both visually accessible and food-safe throughout service.

Engineered with a self-contained R134a refrigeration system housed in a removable cassette, the Banksia simplifies both servicing and day-to-day cleaning. CoolSmart electronic temperature control, automatic defrost, fan-assisted cooling, and a Climate Class 4 (Tropical) rating ensure consistent performance in high-ambient kitchens, while a waste heat recovery vaporiser system eliminates the need for an external drain.

Key Benefits

• Blown air circulates over and under all GN pans simultaneously, maximising food-holding capacity and refrigeration efficiency across the entire well.
• Fully enclosed stainless steel well beneath the food pans prevents ingredient spillage from dropping into the cabinet, supporting hygiene and reducing cleaning time.
• Removable blown-air ducts and a removable refrigeration cassette make thorough cleaning and routine servicing straightforward without specialist tools.
• Waste heat recovery vaporiser system handles condensate internally, removing the need to install or manage an external drain connection.
• CoolSmart electronic thermostat with digital LED display maintains even temperatures and supports energy efficiency, with 1.69 kWh/24h consumption.
• Climate Class 4 (Tropical) rating and high-ambient design ensure reliable operation in the hot, humid conditions typical of busy Australian commercial kitchens.
• Square glass canopy with rear sliding polycarbonate covers and a raised customer display keeps ingredients visible and accessible while protecting them during service.
• Swivel and brake castors with threaded fittings allow straightforward repositioning on the floor or simple changeover to legs for plinth mounting with face-mounted hinges.
• HACCP-compliant construction and international quality standards provide confidence for food safety audits and regulatory compliance.

Key Features

• Australian designed and manufactured to international quality and HACCP compliance standards.
• Accommodates 5 x GN 1/1 pans in a raised customer display well with blown-air refrigeration over and under all pans.
• Square glass canopy with rear sliding polycarbonate covers for ingredient visibility and protection.
• Fully enclosed 4622-grade stainless steel worktop and well surround beneath food pans.
• 10 mm thick polypropylene cutting board included.
• One plastic-coated shelf per door section; two shelves total.
• CoolSmart electronic thermostat with digital LED display for precise, energy-efficient temperature management.
• Automatic defrost with fan-assisted (forced air) cooling system.
• Self-contained refrigeration system housed in a removable cassette for easy access during servicing and maintenance.
• Waste heat recovery vaporiser system eliminates the need for an external condensate drain.
• Anti-corrosive evaporator coil coating for extended service life.
• Removable blown-air ducts to facilitate thorough cleaning.
• Two solid, self-closing doors with face-mounted hinges suitable for plinth mounting.
• Swivel and brake castors with threaded fittings allowing leg changeover if required.
• 304 stainless steel construction throughout.
• LED interior lighting.
• R134a refrigerant; Climate Class 4 (Tropical) rating.
• Temperature range +1°C to +4°C; energy consumption 1.69 kWh/24 hours.

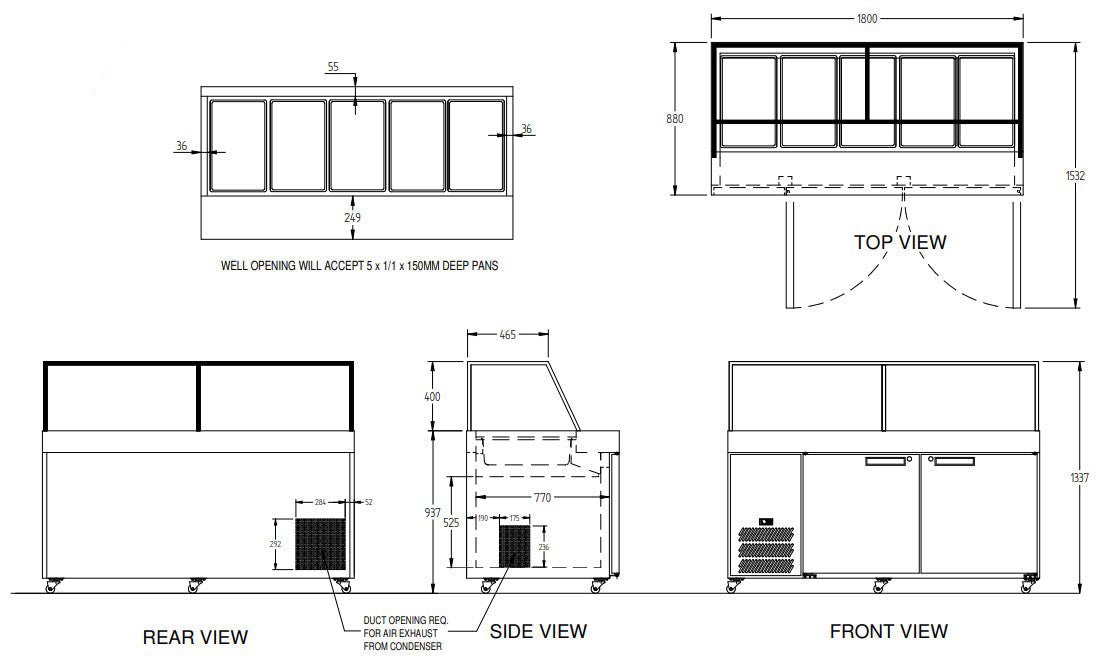

• 500-litre capacity; 1800 mm wide x 880 mm deep x 937 mm high; 160 kg.
• 240 V single-phase, 10 A supply; 5.0 A power draw.
• 24-month warranty (self-contained unit).

Specifications

• Width (mm): 1800
• Depth (mm): 880
• Height (mm): 937
• Weight (kg): 160
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 500
• Amps (A): 10
• Voltage (V): 240V single phase
• Power Rating: 5.0amps
• Warranty (months): 24 months (self-contained)
• Country of Origin: Australia
• Energy Consumption (kWh/24h): 1.69
• Temperature Range: +1/+4°C
• Refrigerant: R134a
• Compressor Location: Self-contained
• Refrigeration Type: Prep Counter Fridge
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Material: 304 Stainless Steel
• Door Type: Solid
• No. of Shelves: 2
• No. of Doors: 2
• Temperature Control: CoolSmart Electronic Thermostat
• Interior Lighting: LED
• Display Type: Digital LED
