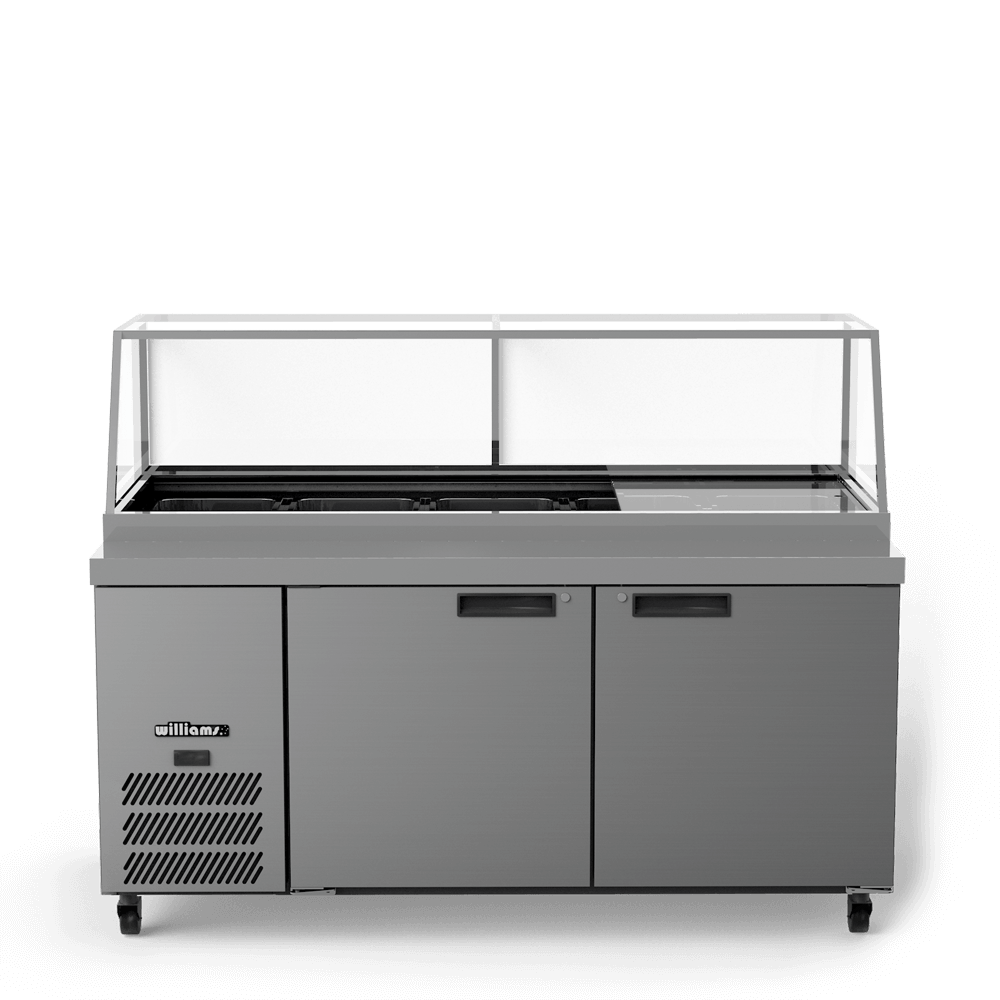

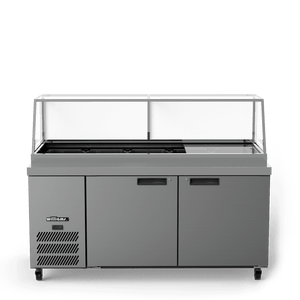

Williams HSP5UBASS Banksia 2 Door Stainless Steel Solid Door Prep Counter Fridge

The Williams HSP5UBASS Banksia is an Australian-designed and built refrigerated ingredient prep counter featuring a raised customer display, square glass canopy with rear sliding polycarbonate covers, and a blown air well accommodating 5 x GN 1/1 pans. Engineered to perform in the most demanding commercial kitchen environments, it combines a fully enclosed stainless steel pan well with refrigerated blown air circulating both over and under all pans to maximise food holding capacity and refrigeration efficiency.

Beneath the prep surface, two solid self-closing doors open to a large under-counter storage cabinet, each section fitted with one plastic-coated shelf. The forced air refrigeration system is housed in a removable cassette for straightforward servicing, while the waste heat recovery vaporiser eliminates the need for an external drain. Built to HACCP-compliant international quality standards and rated for high-ambient tropical environments, this unit is well suited to high-volume kitchens where ingredient freshness, hygiene and fast access are critical.

Key Benefits

• Blown air refrigeration above and below every pan keeps all ingredients consistently cold and food-safe throughout service, reducing waste and spoilage.
• Raised display with glass canopy and sliding polycarbonate rear covers presents fresh toppings clearly to staff and customers while maintaining temperature control.
• Fully enclosed stainless steel well beneath the food pans prevents spillage from contaminating the cabinet below, simplifying clean-up and supporting hygiene compliance.
• Removable blown air ducts and a removable refrigeration cassette make routine cleaning and servicing quick, minimising downtime in busy operations.
• Waste heat recovery vaporiser system handles condensate internally, removing the need to plumb in an external drain and allowing flexible placement.
• CoolSmart electronic controller with digital LED display maintains even temperatures efficiently, supporting energy savings and consistent food-safe storage.
• Swivel and brake castors with threaded fittings allow easy repositioning on the floor and straightforward conversion to fixed legs if a plinth-mounted installation is preferred.
• High-ambient Climate Class 4 (Tropical) rating ensures reliable operation in hot, humid kitchen conditions without performance loss.
• Manufactured in Australia from 304 stainless steel with a 4622 grade stainless worktop, backed by a 24-month warranty on the self-contained refrigeration system.

Key Features

• Australian-designed and manufactured unit built to HACCP-compliant international quality standards
• Raised customer ingredient display with square glass canopy and rear sliding polycarbonate covers
• Blown air well accommodating 5 x GN 1/1 pans with refrigerated air circulating both over and under all pans
• Fully enclosed stainless steel well beneath food pans prevents food from falling into the cabinet
• 4622 grade stainless steel worktop
• 10 mm thick polypropylene cutting board included
• Two solid self-closing doors with face-mounted hinges for plinth mounting compatibility
• One plastic-coated shelf per door section
• Forced air refrigeration system housed in a removable cassette for easy access and servicing
• Removable blown air ducts for thorough, straightforward cleaning
• Waste heat recovery vaporiser system eliminates the need for an external condensate drain
• Anti-corrosive coating on evaporator coil for extended service life
• CoolSmart electronic thermostat with digital LED display for precise, energy-efficient temperature management
• Temperature range +1°C to +4°C with automatic defrost
• Fan-assisted (forced air) cooling system
• Climate Class 4 (Tropical) rated for high-ambient kitchen environments
• R290 refrigerant with self-contained compressor
• LED interior lighting
• 304 stainless steel construction throughout
• Swivel and brake castors with threaded fittings allowing simple changeover to legs if required
• 500 litre total capacity
• 240 V single phase, 10 A connection; 5.0 A operating draw
• Energy consumption 1.69 kWh per 24 hours

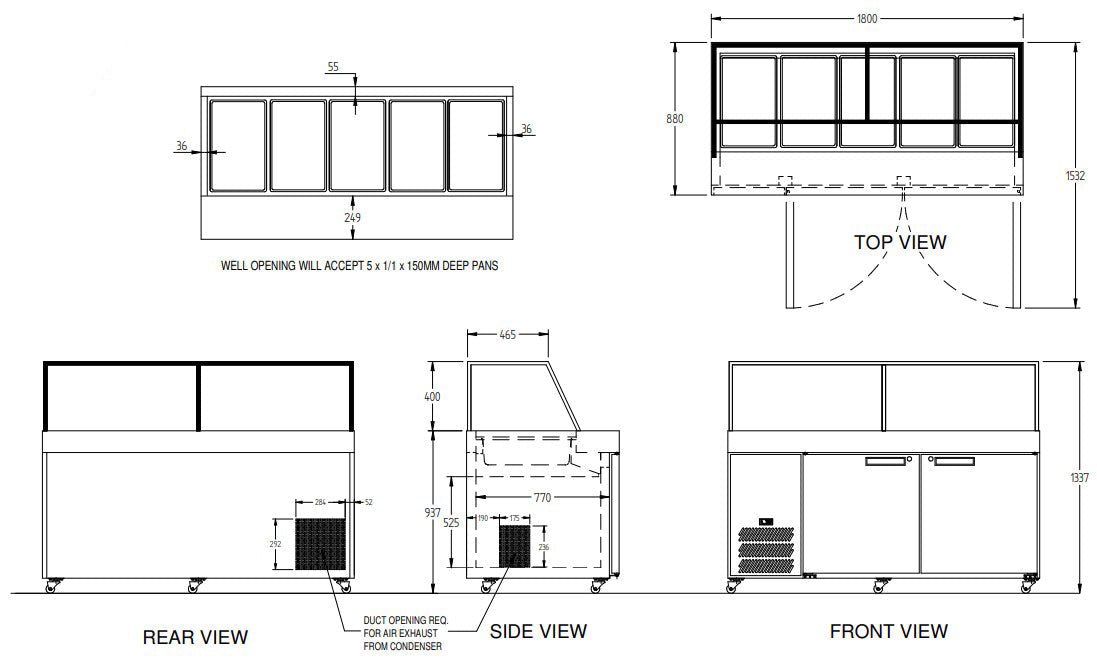

• Dimensions: 1800 mm wide x 880 mm deep x 937 mm high; weight 160 kg

Specifications

• Width (mm): 1800
• Depth (mm): 880
• Height (mm): 937
• Weight (kg): 160
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 500
• Amps (A): 10
• Voltage (V): 240V single phase
• Power Rating: 5.0amps
• Warranty (months): 24 months (self-contained)
• Country of Origin: Australia
• Energy Consumption (kWh/24h): 1.69
• Temperature Range: +1/+4°C
• Refrigerant: R134a
• Compressor Location: Self-contained
• Refrigeration Type: Prep Counter Fridge
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Material: 304 Stainless Steel
• Door Type: Solid
• No. of Shelves: 2
• No. of Doors: 2
• Temperature Control: CoolSmart Electronic Thermostat
• Interior Lighting: LED
• Display Type: Digital LED
