Overview

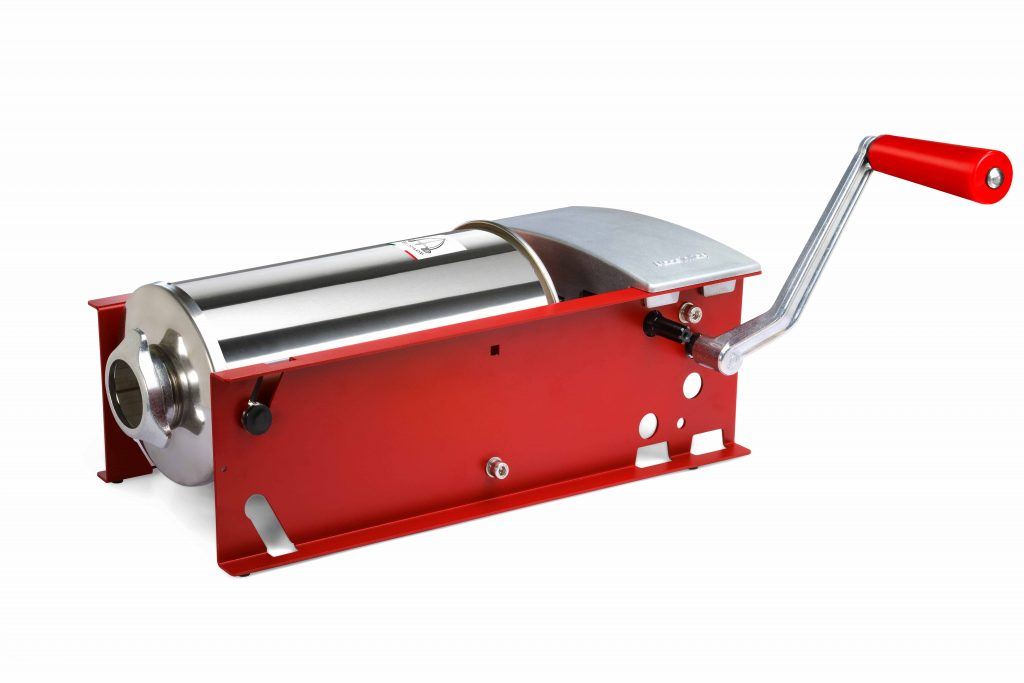

Tre Spade SFT0005 Sausage Filler 5L

The Tre Spade SFT0005 is a 5 litre manual sausage filler built for butchers, smallgoods producers and deli operators who need reliable, high-volume hand filling in a compact footprint. Manufactured in Italy, the unit combines a stainless steel cylinder with a carbon-steel gear rack and an aluminium gear block to deliver smooth, consistent piston travel with every stroke.

The cylinder features watertight, easy-to-clean welded seams, and the piston is made from Moplen fitted with vents and a silicone gasket to maintain a clean, reliable seal throughout the fill cycle. Four funnel sizes are included straight out of the box, making the filler ready to work with a wide range of natural and synthetic casings from thin breakfast sausages through to larger salami-style links.

Key Benefits

• 5 litre capacity suits batch production for butchers and smallgoods makers without the need for electric equipment.
• Watertight welded cylinder seams simplify clean-down and help meet food safety hygiene requirements.
• Carbon-steel gear rack paired with anti-wear metal gears delivers controlled, smooth piston travel to reduce air pockets in finished sausages.
• Self-lubricating bushes in the aluminium gear block reduce maintenance requirements and extend service life.
• Moplen piston vents help expel trapped air during filling, improving casing fill consistency.
• Silicone gasket ensures a positive seal between the piston and cylinder wall, minimising product waste and mess.
• Four included funnel sizes (10, 20, 30 and 40 mm) provide immediate versatility across different casing diameters.
• Compact dimensions and a 7 kg weight make the unit easy to position and store on a busy bench.

Key Features

• Manual operation, 5 litre stainless steel cylinder
• Watertight welded cylinder seams for easy cleaning and hygiene compliance
• Gear rack constructed from carbon steel for durability and smooth drive
• Anti-wear metal gears for long service life under repeated use
• Aluminium gear block fitted with self-lubricating bushes to reduce maintenance
• Moplen piston with integrated vents to expel air during the fill cycle
• Silicone gasket on the piston for a clean, reliable cylinder seal
• Supplied with 10 mm, 20 mm, 30 mm and 40 mm filling funnels
• Manufactured in Italy
• Manufacturer code: 20000

Specifications

• Width (mm): 520
• Depth (mm): 210
• Height (mm): 160
• Weight (kg): 7
• Packed Width (mm): 540
• Packed Depth (mm): 210
• Packed Height (mm): 220
• Shipping Cubic: 0.024948
• Shipping Weight: 7
• Warranty (months): 12 Months Warranty
• Country of Origin: Italy
