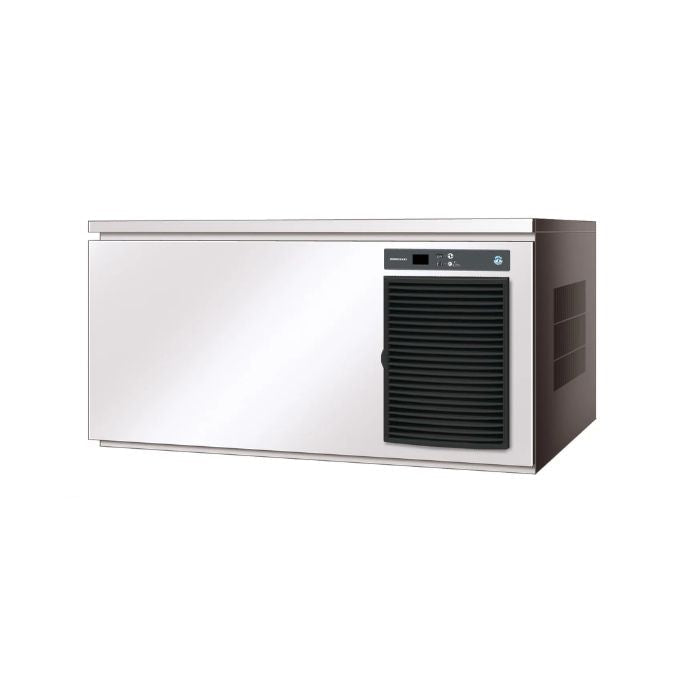

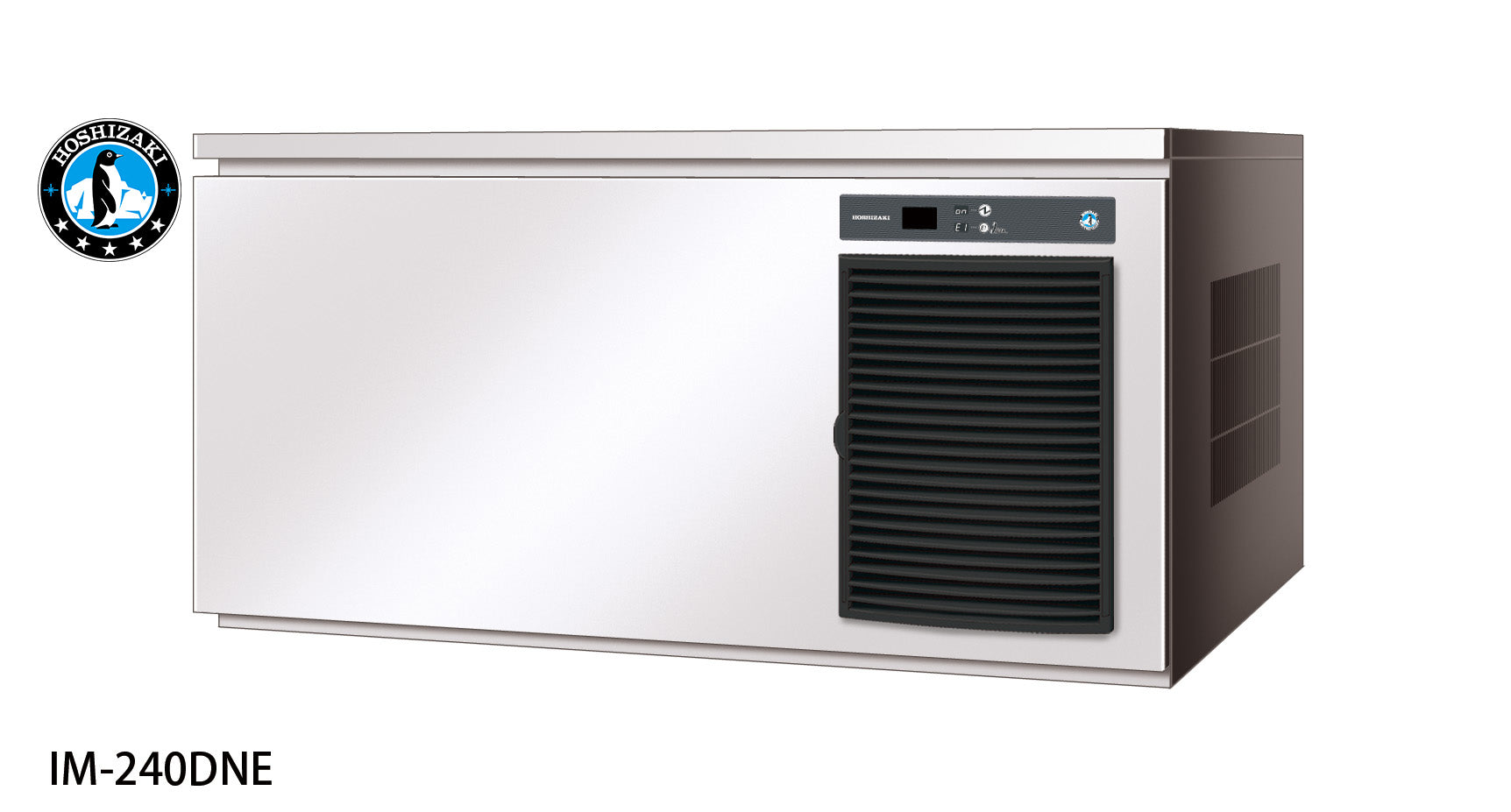

Hoshizaki IM-240DNE Modular Cube Ice Machine Head 205kg/Day

The Hoshizaki IM-240DNE is a modular ice machine head producing up to 205kg of crystal-clear cube ice per day, designed for high-volume commercial kitchens, bars, and hospitality venues. Each ice cycle draws fresh water through a unique closed-cell water circuit, yielding exceptionally hard, precisely shaped cubes (28x28x32mm) with outstanding clarity and slow melt rates — qualities that are especially valued in premium cocktails and beverage service where drink integrity matters.

Built from durable stainless steel and rated to operate in ambient temperatures up to 43°C, this stackable modular unit is engineered for reliability in demanding Australian conditions. A micro computer controller and intelligent control circuit continuously optimise the ice-making process for peak efficiency, while multiple inbuilt safety features and easily accessible air filters reduce the likelihood of service callouts and keep ongoing maintenance straightforward. The ice storage bin, top kit, and water filter are sold separately.

Key Benefits

• Produces up to 205kg of ice per day at 15°C water temperature, ensuring a consistent and plentiful supply even during peak service periods.
• Hard, crystal-clear cube ice melts slowly, keeping drinks colder for longer and protecting the flavour profile of premium cocktails and beverages.
• Intelligent control circuit actively conserves power and water consumption, reducing operating costs over the life of the machine.
• Stackable modular design allows flexible installation and the ability to pair with compatible storage bins (such as the B-801SA with IMD Top Kit) to suit varying venue layouts and ice storage needs.
• Rated to 43°C ambient temperature, making it suitable for hot commercial kitchens and tropical Australian climates without compromising performance.
• Inbuilt safety protections — including a freeze cycle back-up timer, defrost back-up, low voltage protection, and high amp protector — safeguard the unit and minimise unplanned downtime.
• Auto rinse and flush cycle maintains internal hygiene automatically, reducing manual cleaning frequency and supporting food safety compliance.
• Easily accessible and cleanable air filters can be serviced in-house, avoiding costly technician callouts for routine maintenance.
• Single-phase 10-amp power connection simplifies installation without the need for specialised electrical infrastructure.

Key Features

• Modular ice machine head only — ice storage bin, top kit, and water filter sold separately; compatible bin B-801SA requires 1x IMD Top Kit.
• Ice production capacity: 205kg per day at 21°C air temperature and 15°C water temperature; 160kg per day at 32°C air temperature and 21°C water temperature.
• Cube ice size: 28x28x32mm — hard, crystal-clear cubes with slow dilution properties.
• Micro computer controller manages the entire ice-making cycle for optimum performance across varying environmental conditions.
• New intelligent control circuit dedicated to reducing power and water consumption.
• 7-segment operational display panel for straightforward monitoring and ease of use.
• Unique closed-cell water circuit provides ultimate contamination protection, with each cycle produced using fresh water.
• Auto rinse and flush cycle for automated internal hygiene maintenance.
• Inbuilt safety features: freeze cycle back-up timer, defrost back-up, low voltage protector, and high amp protector.
• Easily accessible and cleanable air filters to minimise maintenance costs and service callouts.
• Rated to 43°C ambient temperature for reliable operation in tropical and high-heat environments.
• Durable stainless steel exterior construction for longevity in commercial environments.
• Stackable and modular design for flexible venue configuration.
• Single-phase, 10-amp power supply.
• Dimensions: 1084mm (W) x 700mm (D) x 500mm (H).
• 3-year parts and labour warranty on the entire unit; 5-year parts-only warranty on the compressor and air-cooled condenser coil.

Specifications

• Weight (kg): 300
• Shipping Weight: 106
• Packed Width (mm): 1084.0
• Packed Height (mm): 500.0
• Packed Depth (mm): 700.0
• Shipping Cubic: 0.379400000m3
• Ice Type: Cube Ice
• Ice Size: 28
• Ice Production: 205
