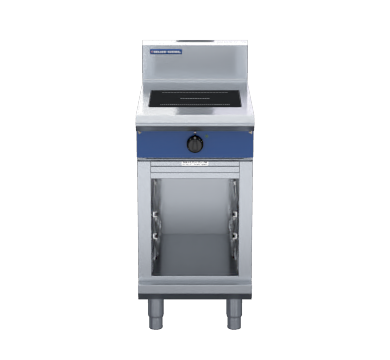

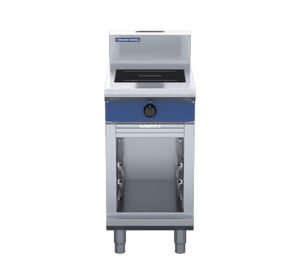

Blue Seal IN511R3-CB Evolution Series 450mm Single Zone Induction Cooktop – Cabinet Base

The Blue Seal IN511R3-CB is a freestanding single-zone electric induction cooktop from the Evolution Series, built in New Zealand for the demands of a professional commercial kitchen. It features a 270mm diameter, 3.5kW round induction zone beneath a 6mm thick ceramic glass cooking surface, delivering fast, precise and responsive heat while keeping the surrounding surface cool and safe to touch.

Mounted on a heavy-duty stainless steel cabinet base with a hinged door, the unit provides practical under-counter storage alongside the cooktop itself. Automatic pan detection, infinitely variable power control via a large knob, and visual indicator lights make operation straightforward and safe, while the smooth ceramic glass surface and accessible design simplify cleaning, installation and servicing.

Key Benefits

• Induction heating responds almost instantly to power adjustments, reducing cook times and improving consistency across service periods.
• Automatic pan detection switches the induction zone off the moment a pan is removed, eliminating energy waste and reducing burn risks.
• The ceramic glass surface stays comparatively cool around the active zone, creating a safer working environment and a cooler overall kitchen.
• Infinitely variable power control gives chefs fine-grained command over heat output for precise, repeatable results across a wide range of cooking tasks.
• The integrated cabinet base with hinged door adds accessible, lockable storage directly beneath the cooktop, making efficient use of floor space.
• Stainless steel legs with two adjustable feet at the front and two rear rollers allow easy levelling and repositioning without heavy lifting.
• A 165mm stainless steel splashback protects the rear wall from spills and simplifies end-of-service clean-up.
• Smooth, sealed ceramic glass and minimal crevices throughout the unit make daily cleaning quick and thorough.
• Heavy-duty 304 stainless steel construction is designed to withstand the rigours of continuous commercial use.

Key Features

• Single cooking zone freestanding electric induction cooktop with integrated cabinet base
• 1 x 3.5kW round induction heating zone, 270mm diameter
• 6mm thick ceramic glass cooking surface, 450 x 480mm cooking area
• Automatic pan detection – induction zone deactivates immediately when cookware is removed
• Large, easy-to-use control knob with infinitely variable power settings for the induction zone
• Heating ON and pan detection/error indicator lights for clear visual feedback
• 1.2mm stainless steel splashback, 165mm high
• Cabinet base with single hinged door for under-counter storage
• Stainless steel legs with 2 adjustable feet at the front and 2 rollers at the rear for easy manoeuvring
• Forced-air (fan-cooled) cooling system
• Digital induction control with variable power control
• 304 stainless steel construction throughout
• Freestanding, single-phase installation: 230–240V, 1P+N+E, 15A, 3.5kW, 50/60Hz
• Heavy-duty build designed for straightforward installation, cleaning and servicing
• Country of origin: New Zealand

Specifications

• Width (mm): 450
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Cooling Type: Forced Air | Fan Cooled
• Installation Type: Freestanding
• Control Type: Digital Induction Control
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Surface: 6mm Ceramic Glass
• Cooking Surface Area (mm): 450 x 480
• Number of Burners: 1
• Power Rating: 1P+N+E 15A / phase|230-240V|3.5kW|50/60Hz
• Power Supply: 400-415 Vac | 3P+E | 50/60 Hz
• Voltage/Phase: 230-240V Single Phase 15A
