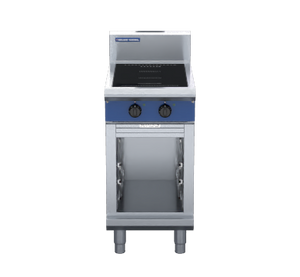

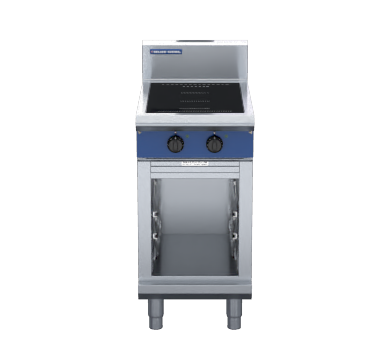

Blue Seal IN512F-CB Evolution Series 450mm Double Zone Induction Cooktop – Cabinet Base

The Blue Seal IN512F-CB is a freestanding double-zone induction cooktop from the Evolution Series, built in New Zealand from 304 stainless steel and mounted on a single-door hinged cabinet base. Designed for the demands of busy commercial kitchens, it delivers 10kW of total induction power across two full-area square zones on a 6mm thick ceramic glass cooking surface, with all the responsiveness and energy efficiency that induction technology offers.

Powered by a 400–415V three-phase supply, this unit features infinitely variable power controls operated via large, easy-to-use knobs, automatic pan detection that cuts power when cookware is removed, and visual indicator lights for heating status, pan detection and error alerts. Forced-air fan cooling, heavy-duty construction, and a design focused on straightforward cleaning, installation and servicing make the IN512F-CB a practical long-term investment for professional cooking operations.

Key Benefits

• Induction heating delivers rapid, precise temperature response, reducing heat-up times and giving chefs tighter control over cooking results.
• Automatic pan detection cuts power to each zone the moment cookware is removed, saving energy and reducing the risk of accidental burns on the cooking surface.
• Infinitely variable power control on each zone independently allows simultaneous cooking at very different heat levels without compromise.
• The cool-to-the-touch ceramic glass surface lowers the ambient temperature of the kitchen and reduces the risk of contact burns compared to gas or radiant electric cooking.
• Forced-air fan cooling protects internal components and helps maintain consistent performance during extended service periods.
• The integrated cabinet base with hinged single door provides accessible underbench storage, keeping the work area organised without requiring a separate equipment stand.
• Stainless steel legs with two adjustable front feet and two rear rollers allow the unit to be levelled on uneven floors and repositioned easily during cleaning or reconfiguration.
• A 165mm stainless steel splashback (1.2mm thickness) protects the wall behind the unit and simplifies end-of-service wipe-down.
• Straightforward installation, cleaning and service access reduce downtime and ongoing maintenance costs in a commercial setting.

Key Features

• Double cooking zone configuration: 2 x 5kW full-area square induction zones, each 270mm diameter square format
• Total output: 10.0kW across both zones
• 6mm thick ceramic glass cooking surface for durability and ease of cleaning
• Automatic pan detection on each zone: induction switches off immediately when pan is removed
• Large control knobs with infinitely variable power control, one per induction zone
• Indicator lights for: heating ON, pan detection, and error status
• Forced-air fan cooling system to protect electronics during sustained operation
• Cabinet base with single hinged door providing enclosed underbench storage
• 165mm high stainless steel splashback (1.2mm thickness)
• Stainless steel adjustable legs: 2 adjustable feet at the front, 2 rollers at the rear for easy repositioning
• Constructed from 304 stainless steel throughout
• Freestanding installation type
• Digital induction control with variable power settings
• Three-phase electrical supply: 400–415V, 3P+E, 14A per phase, 50/60Hz
• Country of origin: New Zealand
• Racking kit not included

Specifications

• Width (mm): 450
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Cooling Type: Forced Air | Fan Cooled
• Installation Type: Freestanding
• Control Type: Digital Induction Control
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Surface: 6mm Ceramic Glass
• Cooking Surface Area (mm): 900 x 480
• Number of Burners: 2
• Power Rating: 10.0kW|3P+E 14A / phase|400-415V|50/60Hz
• Power Supply: 400-415 Vac | 3P+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+E
