Overview

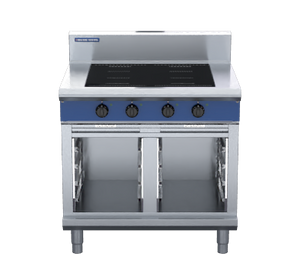

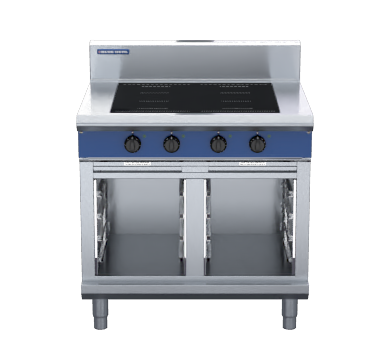

Blue Seal IN514F-CB Evolution Series 900mm Induction Cooktop – Cabinet Base

The Blue Seal IN514F-CB is a 900mm four-zone electric induction cooktop from the Evolution Series, mounted on a cabinet base for a streamlined, freestanding installation. Each of the four zones delivers 5kW of full-area induction power across a 270mm square cooking surface, totalling 20kW of output — giving commercial kitchens the speed and responsiveness needed during high-volume service.

Built in New Zealand from heavy-duty 304 stainless steel, the IN514F-CB features a 6mm thick ceramic glass cooking surface that is quick to wipe down between uses. Forced-air cooling, automatic pan detection, and infinitely variable power controls per zone combine to make this unit a practical, safe, and energy-efficient choice for busy professional kitchens.

Key Benefits

• Instant, precise induction heat across four independent zones allows chefs to adjust cooking intensity on the fly, supporting consistent results even during peak service.
• Automatic pan detection switches off any zone the moment cookware is removed, reducing energy waste and eliminating the risk of an unattended hot surface.
• Induction technology keeps the ambient kitchen temperature lower compared to gas or radiant electric cooking, improving comfort and safety for kitchen staff.
• Infinitely variable power control via a large, easy-to-use knob on each zone gives fine-grained command over heat without the guesswork of stepped settings.
• The 6mm ceramic glass surface has no burners, grates or crevices to trap food debris, making end-of-service cleaning fast and straightforward.
• Cabinet base configuration with a single hinged door provides enclosed underbench storage, keeping the kitchen floor clear and the overall footprint tidy.
• Stainless steel legs with two adjustable feet at the front and two rear rollers make levelling and repositioning simple without requiring tools.
• Heating-on, pan-detection and error indicator lights give clear visual feedback at a glance, helping staff identify and resolve issues quickly.
• Forced-air cooling protects the electronics and extends the working life of the unit, even under continuous commercial use.

Key Features

• Four 5kW full-area square induction zones, each 270mm diameter, for a combined output of 20kW
• 6mm thick ceramic glass cooking surface for durability and easy cleaning
• Automatic pan detection: each zone deactivates immediately when cookware is lifted
• Individual large control knob per zone with infinitely variable power settings
• Heating-on, pan-detection and error indicator lights for each zone
• Forced-air (fan) cooling system to protect internal components during sustained operation
• Heavy-duty 304 stainless steel construction throughout
• 165mm stainless steel splashback (1.2mm stainless steel)
• Cabinet base with single hinged door providing enclosed underbench storage
• Stainless steel legs with two adjustable feet at the front and two rear rollers for easy levelling and repositioning
• Freestanding, freestanding-mount installation type
• Digital induction control with variable power management
• 3-phase electrical supply: 400–415V, 3P+E, 28A per phase, 50/60Hz
• Racking kit not included
• Manufactured in New Zealand
• Designed for straightforward installation and service access

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Cooling Type: Forced Air | Fan Cooled
• Installation Type: Freestanding
• Control Type: Digital Induction Control
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Surface: 6mm Ceramic Glass
• Cooking Surface Area (mm): ø270 per zone
• Number of Burners: 4
• Power Rating: 20kW|3P+E 28A / phase|400-415V|50/60Hz
• Power Supply: 400-415 Vac | 3P+E | 50/60 Hz
• Voltage/Phase: 400-415V | 3 Phase
