Overview

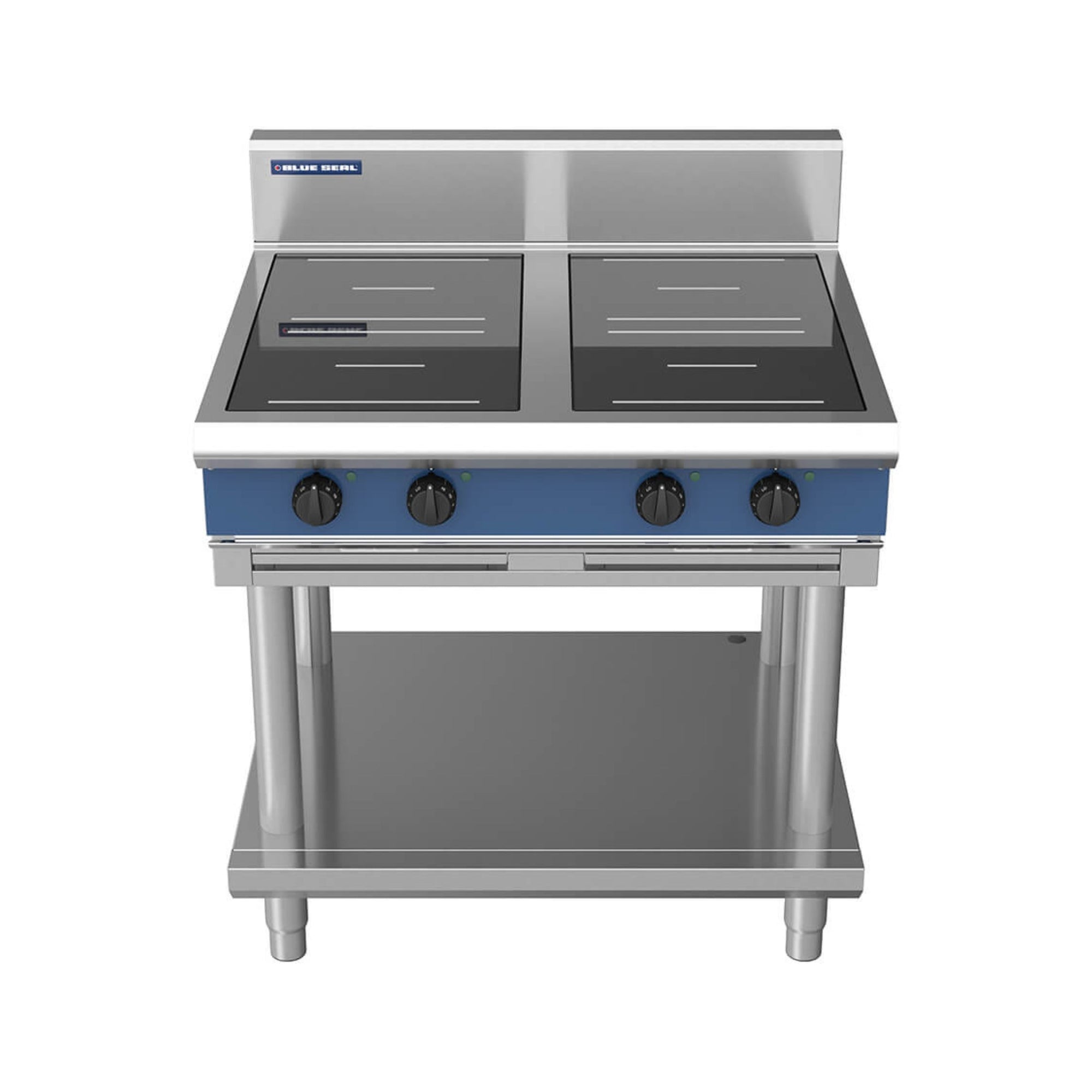

Blue Seal IN514R3-LS Evolution Series 900mm 4-Zone Induction Cooktop on Leg Stand

The Blue Seal IN514R3-LS is a 900mm commercial induction cooktop from the Evolution Series, built in New Zealand from 304 stainless steel and supplied as a freestanding unit supported by a heavy-duty stainless steel leg stand. It houses four round 3.5kW cooking zones, delivering a combined 14kW of induction power, each with a 270mm diameter cooking position set into a 6mm thick ceramic glass surface. Suited to restaurants, hotels, cafés and high-volume hospitality kitchens, the cooktop transfers heat directly to induction-compatible cookware, keeping the surrounding kitchen environment cooler and safer than traditional cooking methods.

Each zone is governed by a large control knob offering infinitely variable digital power adjustment, and automatic pan detection shuts any zone down the moment cookware is lifted away, eliminating wasted energy and improving safety. Forced-air fan cooling safeguards internal components throughout sustained high-output service. The leg stand configuration opens up the area beneath the unit for straightforward floor cleaning, good airflow and flexible placement, and the IN514R3-LS integrates seamlessly with other Blue Seal Evolution Series equipment to form a cohesive, suite-matched kitchen layout.

Key Benefits

• Induction technology directs heat straight into cookware, delivering faster cooking response and dramatically lower ambient heat output to keep kitchen staff cooler and more comfortable.
• Automatic pan detection cuts power to each zone the instant cookware is removed, enhancing safety and preventing unnecessary energy use throughout service.
• Infinitely variable power control on every zone supports precise, repeatable heat adjustment so all four positions can be managed consistently at the same time.
• The 6mm thick ceramic glass cooking surface is engineered for demanding commercial use, withstands thermal shock and can be wiped down quickly between service periods.
• Forced-air fan cooling protects internal components during extended high-output operation, supporting long-term reliability in busy kitchen environments.
• The open leg stand keeps the floor area beneath the unit fully accessible for cleaning, encourages airflow around the base and allows flexible positioning without a fixed underbench cabinet.
• Two adjustable front feet and two rear rollers make levelling simple and allow the unit to be repositioned without lifting.
• Full modular compatibility with the Blue Seal Evolution Series, including the integrated 165mm splashback, enables a professional, suite-matched kitchen configuration.

Key Features

• Four round 3.5kW induction cooking zones arranged on a heavy-duty stainless steel leg stand, 14kW total output
• 270mm diameter round cooking position per zone
• 6mm thick ceramic glass cooking surface
• 1.2mm stainless steel splashback, 165mm high
• Automatic pan detection disables each zone when cookware is removed
• Per-zone indicator lights for heating active, pan detection status and error conditions
• Large control knob with infinitely variable power control for each zone
• Digital induction control with variable power settings
• Forced-air fan cooling for sustained commercial operation
• Heavy-duty 304 stainless steel construction
• Stainless steel leg stand with two adjustable front feet and two rear rollers
• Freestanding mounting on leg stand
• 3-phase power supply: 400-415V, 3P+E, 20A per phase, 50/60Hz
• Blue Seal Evolution Series modular compatibility with suite-matching undershelf
• One undershelf included
• Easy-clean, easy-service and easy-installation design
• Country of origin: New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Cooling Type: Forced Air | Fan Cooled
• Installation Type: Freestanding
• Control Type: Digital Induction Control
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Surface: 6mm Ceramic Glass
• Cooking Surface Area (mm): ø270 per zone
• Number of Burners: 4
• Power Rating: 14kW|3P+E 20A / phase|400-415V|50/60Hz
• Power Supply: 400-415 Vac | 3P+E | 50/60 Hz
• Voltage/Phase: 400-415V | 3 Phase
