Overview

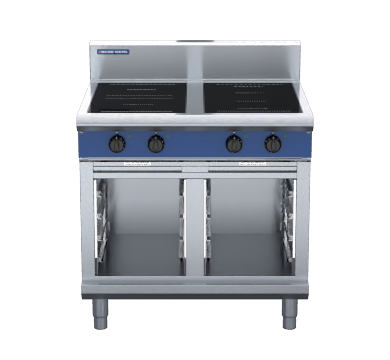

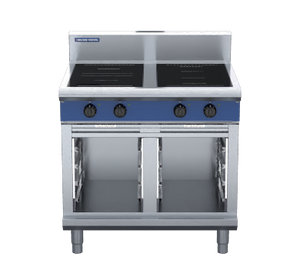

Blue Seal IN514R3F-CB Evolution Series 900mm Induction Cooktop – Cabinet Base

The Blue Seal IN514R3F-CB is a heavy-duty 900mm four-zone electric induction cooktop from the Evolution Series, mounted on a stainless steel cabinet base and built in New Zealand for demanding commercial kitchen environments. It combines two 3.5kW round induction zones on the left-hand side with two 5kW full-area square induction zones on the right-hand side, delivering a total of 17kW across a 6mm thick ceramic glass cooking surface for fast, responsive and energy-efficient performance.

Designed with practicality in mind, the unit features automatic pan detection that cuts power to any zone the moment cookware is removed, improving both safety and energy efficiency. Individual large control knobs with infinitely variable power settings give chefs precise control over each zone, while indicator lights provide clear visual feedback on heating status and any error conditions. The freestanding cabinet base configuration, forced-air cooling, and easy-clean ceramic glass surface make this cooktop a practical long-term investment for high-volume kitchens.

Key Benefits

• Rapid induction heating responds almost instantly to power adjustments, reducing heat-up times and keeping service moving during busy periods.
• Automatic pan detection switches off each zone immediately when cookware is removed, preventing energy waste and reducing the risk of burns from an active surface.
• Infinitely variable power control on each of the four independent zones allows chefs to fine-tune heat levels precisely, supporting consistent cooking results across different menu items.
• The cool-to-touch ceramic glass surface and absence of open flame create a cooler, safer kitchen environment and reduce the risk of accidental burns.
• Forced-air fan cooling protects internal electronics during sustained high-output service, extending the operational life of the unit.
• The 6mm ceramic glass cooking surface is straightforward to wipe clean between services, minimising downtime and maintaining food safety standards.
• An alternative configuration with full-area induction on the left and round zones on the right is available to order, allowing the unit to be tailored to specific kitchen workflows.
• Heavy-duty 304 stainless steel construction and a 165mm splashback provide durability and protect surrounding surfaces in splash-prone cooking environments.
• Stainless steel legs with two adjustable front feet and two rear rollers make levelling and repositioning straightforward during installation or kitchen reconfiguration.

Key Features

• Four-zone electric induction cooktop with cabinet base, rated at 17kW total output
• Zone configuration: 2 x 3.5kW round induction zones (270mm diameter) on the left-hand side and 2 x 5kW full-area square induction zones (260mm) on the right-hand side
• 6mm thick ceramic glass cooking surface across all four zones
• Automatic pan detection switches each induction zone off immediately when cookware is removed
• Individual large control knobs per zone with infinitely variable power settings
• Heating-on, pan detection and error indicator lights for clear operational feedback
• Forced-air (fan) cooling system to protect internal components during extended use
• Digital induction control with variable power control per zone
• Power supply: 400–415V, 3P+E, 50/60Hz, 24A per phase
• 304 stainless steel construction throughout
• 1.2mm stainless steel splashback (165mm high)
• Stainless steel legs with two adjustable feet at the front and two rollers at the rear
• Single hinged door cabinet base
• Freestanding, freestanding mounting type with 900mm width footprint
• Alternative configuration available to order: full-area induction on the left-hand side and round induction on the right-hand side
• Heavy-duty build designed for easy cleaning, installation and servicing
• Racking kit not included
• Country of origin: New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Cooling Type: Forced Air | Fan Cooled
• Installation Type: Freestanding
• Control Type: Digital Induction Control
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Surface: 6mm Ceramic Glass
• Cooking Surface Area (mm): ø270 per zone
• Number of Burners: 4
• Power Rating: 17kW|3P+E 24A / phase|400-415V|50/60Hz
• Power Supply: 400-415 Vac | 3P+E | 50/60 Hz
• Voltage/Phase: 400-415V | 3 Phase
