Overview

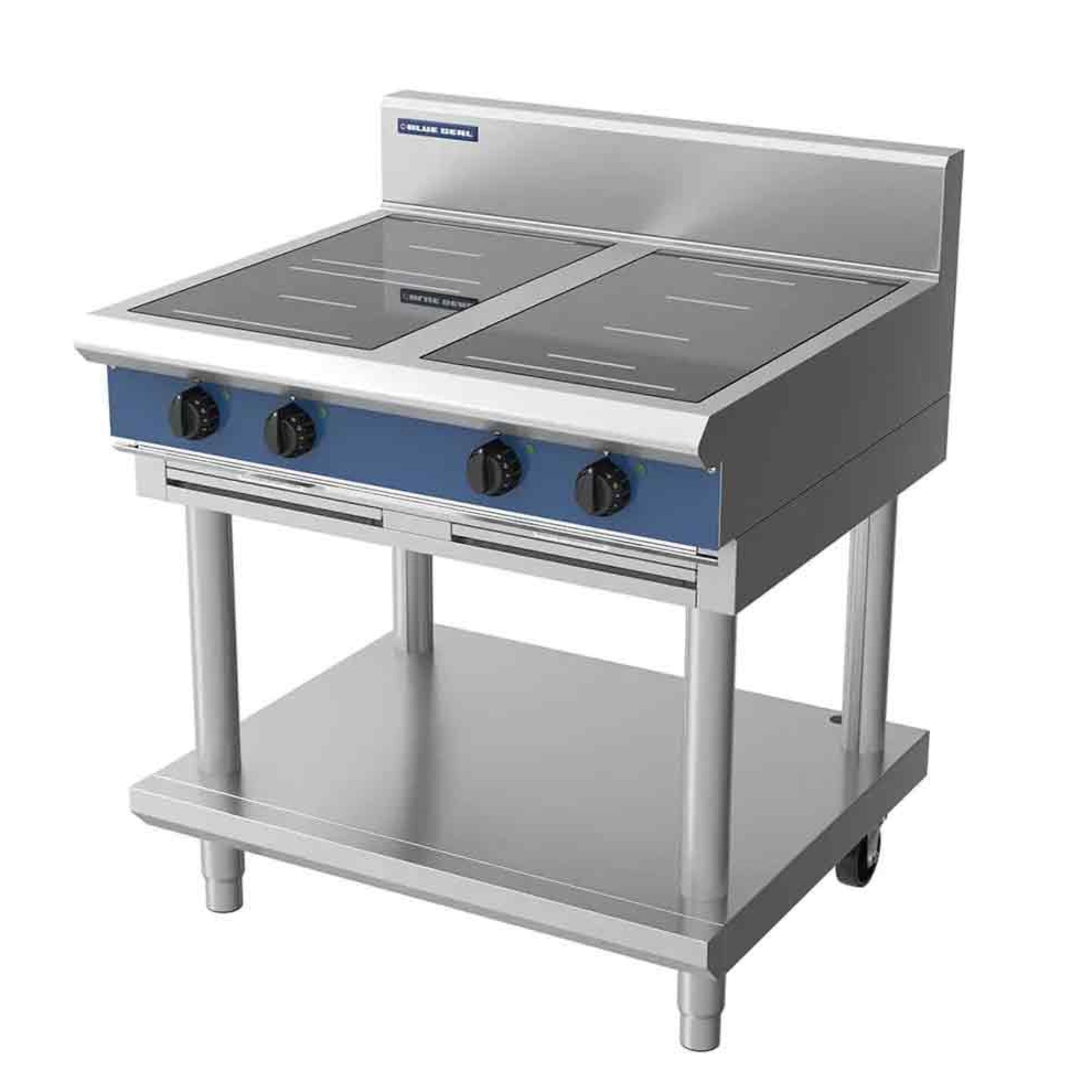

Blue Seal IN514R3F-LS Evolution Series 900mm Induction Cooktop on Leg Stand

The Blue Seal IN514R3F-LS is a 900mm commercial induction cooktop from the Evolution Series, mounted on a heavy-duty stainless steel leg stand for freestanding installation. It features four induction cooking zones combining 2 x 3.5kW round zones on the left and 2 x 5kW full-area square zones on the right, delivering a total of 17kW of responsive, energy-efficient cooking power across a 6mm thick ceramic glass surface.

Designed and built in New Zealand for demanding commercial kitchens, this unit offers automatic pan detection, infinitely variable power controls per zone, and an open leg stand configuration that simplifies floor cleaning and allows flexible under-unit use. The combination of rapid heat response, precise control, and robust stainless steel construction makes it well suited to restaurants, cafes, hotels, and catering operations.

Key Benefits

• Induction technology delivers near-instant heat and precise power adjustments, allowing chefs to move quickly between simmering and high-speed cooking without lag.
• Automatic pan detection shuts off each zone the moment compatible cookware is removed, reducing wasted energy and improving surface safety during busy service.
• Two distinct zone types on one cooktop provide versatility for different cookware sizes, letting the same unit handle both smaller round pots and large full-area pans simultaneously.
• The open leg stand keeps the floor beneath the unit accessible for easy cleaning, supporting kitchen hygiene standards and compliance.
• Induction heating keeps the ambient kitchen temperature lower than flame or radiant cooking, improving comfort and safety for kitchen staff.
• A 6mm thick ceramic glass surface is smooth and seamless, making it straightforward to wipe clean and allowing pans to slide freely across cooking zones.
• Stainless steel legs with two adjustable feet at the front and two rear rollers make levelling simple and allow the unit to be repositioned without lifting.
• An alternative zone configuration with full-area induction on the left and round zones on the right is available to order, offering layout flexibility to suit different kitchen workflows.

Key Features

• Four-zone electric induction cooktop mounted on a stainless steel leg stand
• 2 x 3.5kW round induction zones (270mm diameter) positioned on the left-hand side
• 2 x 5kW full-area square induction zones (260mm) positioned on the right-hand side
• Total power output: 17kW; supply: 400-415V, 3P+E, 24A per phase, 50/60Hz
• 6mm thick ceramic glass cooking surface for durability and easy cleaning
• Automatic pan detection: each induction zone deactivates immediately when cookware is removed
• Large control knob per zone with infinitely variable power control
• Heating ON, pan detection, and error indicator lights for each zone
• 1.2mm stainless steel splashback (165mm high)
• Stainless steel legs with two adjustable feet at the front and two rollers at the rear
• Forced air/fan-cooled system to manage internal component temperatures
• Heavy-duty 304 stainless steel construction throughout
• Suite-matching undershelf included
• Freestanding installation with open base for floor access
• Alternate zone layout (full-area on LHS, round on RHS) available as a factory order option
• Designed for easy cleaning, installation, and servicing
• Country of origin: New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Cooling Type: Forced Air | Fan Cooled
• Installation Type: Freestanding
• Control Type: Digital Induction Control
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Surface: 6mm Ceramic Glass
• Cooking Surface Area (mm): ø270 per zone
• Number of Burners: 4
• Power Rating: 17kW|3P+E 24A / phase|400-415V|50/60Hz
• Power Supply: 400-415 Vac | 3P+E | 50/60 Hz
• Voltage/Phase: 400-415V | 3 Phase
