Overview

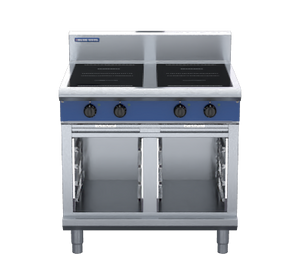

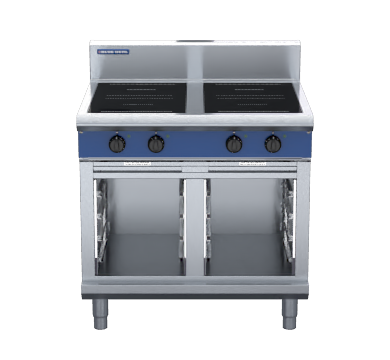

Blue Seal IN514R5-CB Evolution Series 900mm 4-Zone Induction Cooktop – Cabinet Base

The Blue Seal IN514R5-CB is a 900mm freestanding electric induction cooktop from the Evolution Series, built in New Zealand with heavy-duty 304 stainless steel construction for demanding commercial kitchen environments. It features four 5kW round induction zones across a 6mm thick ceramic glass cooking surface, delivering a total output of 20kW with precise, responsive heat that activates only when suitable cookware is present.

Mounted on a single-door hinged cabinet base, this unit combines a practical underbench storage solution with a forced-air cooled induction cooktop in one integrated package. Each zone is independently controlled via a large rotary knob with infinitely variable power settings, while automatic pan detection, indicator lighting, and a 165mm stainless steel splashback all contribute to a safer, cleaner, and more efficient cooking station.

Key Benefits

• Induction technology heats cookware directly rather than the surrounding surface, producing faster heat-up times and significantly reducing ambient kitchen temperature for a more comfortable working environment.
• Automatic pan detection switches each zone off immediately when cookware is removed, improving energy efficiency and reducing the risk of accidental burns to staff.
• Infinitely variable power control on each individual zone allows chefs to make precise, repeatable adjustments, supporting consistent cooking outcomes across service periods.
• Forced-air fan cooling keeps internal components at safe operating temperatures, prolonging equipment life under continuous high-volume use.
• The 6mm ceramic glass cooking surface is smooth, non-porous, and easy to wipe down, minimising cleaning time between services.
• The integrated single-door hinged cabinet base provides convenient underbench storage for pots, pans, or other kitchen equipment directly beneath the cooktop.
• Stainless steel legs with two adjustable feet at the front and two rear rollers make levelling straightforward and allow the unit to be repositioned on the floor with minimal effort.
• A 165mm stainless steel splashback is included as standard, protecting the wall behind the unit and simplifying compliance with kitchen hygiene requirements.
• Heavy-duty construction and a design focused on straightforward installation and serviceability help reduce total cost of ownership and minimise downtime.

Key Features

• 4 x 5kW round induction heating zones, 20kW total output
• 4 x 270mm diameter round induction zones
• 6mm thick ceramic glass cooking surface
• Automatic pan detection – each zone deactivates when cookware is removed
• Large rotary control knob per zone with infinitely variable power adjustment
• Heating ON, pan detection, and error indicator lights for clear visual feedback
• Forced-air (fan) cooling system for continuous commercial operation
• Digital induction control with variable power control per zone
• Integrated single-door hinged cabinet base for underbench storage
• 165mm stainless steel splashback included
• 1.2mm stainless steel splashback construction
• Stainless steel legs with 2 adjustable front feet and 2 rear rollers
• Heavy-duty 304 stainless steel construction throughout
• Freestanding installation type
• Power supply: 400–415V, 3P+E, 50/60Hz, 28A per phase
• Manufactured in New Zealand
• Designed for easy cleaning, installation, and servicing

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Cooling Type: Forced Air | Fan Cooled
• Installation Type: Freestanding
• Control Type: Digital Induction Control
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Surface: 6mm Ceramic Glass
• Cooking Surface Area (mm): ø270 per zone
• Number of Burners: 4
• Power Rating: 20kW|3P+E 28A / phase|400-415V|50/60Hz
• Power Supply: 400-415 Vac | 3P+E | 50/60 Hz
• Voltage/Phase: 400-415V | 3 Phase
