Overview

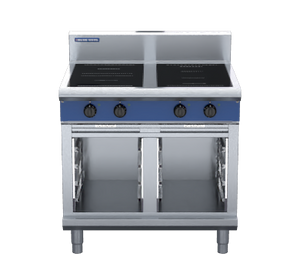

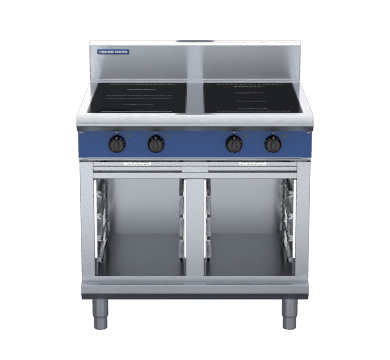

Blue Seal IN514R5F-CB Evolution Series 900mm Induction Cooktop – Cabinet Base

The Blue Seal IN514R5F-CB is a 900mm four-zone electric induction cooktop mounted on a cabinet base, forming part of the Evolution Series designed for demanding commercial kitchen environments. It delivers a total of 20kW across four independently controlled zones – two 5kW round zones (270mm diameter) on the left-hand side and two 5kW full-area square zones (260mm) on the right-hand side – giving chefs the flexibility to work with a wide variety of cookware shapes and sizes simultaneously.

Built in New Zealand from heavy-duty 304 stainless steel, the unit combines a 6mm thick ceramic glass cooking surface with intuitive large-knob variable power controls and automatic pan detection for safe, energy-efficient operation. The integrated cabinet base with a single hinged door provides organised underbench storage, while the forced-air cooling system, 165mm splashback, and freestanding installation make it a practical, self-contained cooking station. An alternative configuration with full-area induction on the left and round zones on the right is available to order.

Key Benefits

• Induction heating responds instantly to power adjustments, reducing heat-up time and giving chefs precise control over cooking temperatures for consistent results.
• Automatic pan detection switches each zone off the moment cookware is removed, improving energy efficiency and reducing the risk of burns on unattended surfaces.
• A cooler ambient cooking environment results from induction technology heating only the cookware, contributing to a more comfortable and safer kitchen.
• Infinitely variable power control on each of the four zones allows different dishes to be cooked simultaneously at precisely the right intensity.
• The 6mm ceramic glass surface wipes down quickly and resists staining, keeping cleaning time to a minimum during and after service.
• Forced-air fan cooling protects internal components during continuous high-output service, supporting long-term reliability in busy operations.
• The integrated cabinet base with hinged door keeps the workstation compact and provides convenient on-hand storage directly beneath the cooktop.
• Stainless steel legs with two adjustable front feet and two rear rollers allow easy levelling and straightforward repositioning during kitchen reconfiguration.
• An optional reversed zone configuration (full-area on the left, round on the right) is available to order, allowing the unit to suit different kitchen workflows and chef preferences.

Key Features

• Four-zone electric induction cooktop with integrated cabinet base – Evolution Series
• Zone configuration: 2 x 5kW round induction zones (270mm diameter) on the left-hand side and 2 x 5kW full-area square induction zones (260mm) on the right-hand side
• Total connected power: 20kW at 400–415V, 3-phase + earth, 28A per phase, 50/60Hz
• 6mm thick ceramic glass cooking surface
• Automatic pan detection – each induction zone deactivates immediately when cookware is removed
• Large, easy-to-use control knob per zone with infinitely variable power control
• Heating-on, pan detection and error indicator lights for clear visual feedback
• Digital induction control with variable power settings
• Forced-air (fan-cooled) cooling system to protect electronics during sustained use
• Heavy-duty 304 stainless steel construction throughout
• 165mm stainless steel splashback included
• 1.2mm stainless steel splashback material
• Single hinged cabinet base door for underbench storage
• Stainless steel legs with two adjustable feet at front and two rollers at rear for levelling and mobility
• Freestanding installation type
• Racking kit not included
• Alternative configuration available to order: full-area induction on the left-hand side and round induction on the right-hand side
• Country of origin: New Zealand
• Easy to clean, install and service by design

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Cooling Type: Forced Air | Fan Cooled
• Installation Type: Freestanding
• Control Type: Digital Induction Control
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Surface: 6mm Ceramic Glass
• Cooking Surface Area (mm): ø270 per zone
• Number of Burners: 4
• Power Rating: 20kW|3P+E 28A / phase|400-415V|50/60Hz
• Power Supply: 400-415 Vac | 3P+E | 50/60 Hz
• Voltage/Phase: 400-415V | 3 Phase
