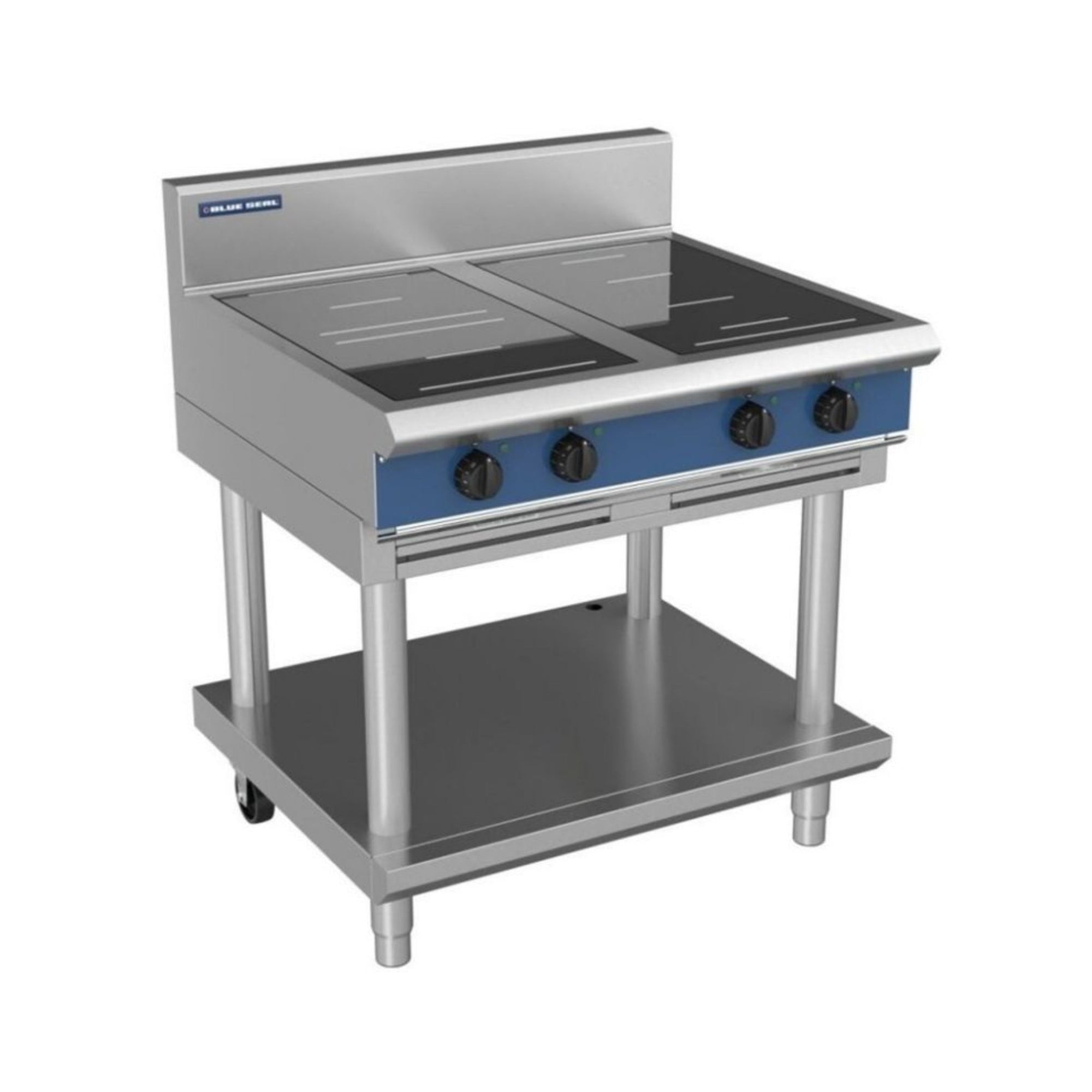

Blue Seal IN514R5F-LS Evolution Series 900mm Induction Cooktop – Leg Stand

The Blue Seal IN514R5F-LS is a 900mm commercial induction cooktop mounted on a heavy-duty stainless steel leg stand, forming part of the modular Evolution Series designed for busy restaurants, cafés, hotels and catering operations. Four independent 5kW induction zones deliver a combined 20kW of output, providing instant, precise heat directly to induction-compatible cookware for faster cooking, superior energy efficiency and a significantly cooler working environment compared to traditional gas cooking.

The unit features two 270mm round induction zones on the left-hand side and two full-area square induction zones on the right-hand side, all surfaced with a 6mm ceramic glass cooking plate. Built from 304 stainless steel with forced-air cooling and a suite-matching undershelf, the IN514R5F-LS is engineered for continuous commercial use and integrates seamlessly into complete Blue Seal Evolution Series kitchen lines. Manufactured in New Zealand.

Key Benefits

• Instant induction heat transfer delivers faster cook times and more responsive temperature adjustments than gas or radiant electric alternatives.
• Automatic pan detection on each zone cuts power the moment cookware is lifted, reducing energy waste and improving workplace safety.
• Significantly lower ambient heat output keeps kitchen temperatures down, improving staff comfort during extended service periods.
• Flat 6mm ceramic glass surfaces are quick to wipe clean and maintain a high standard of kitchen hygiene with minimal effort.
• Four independently controlled zones allow chefs to boil, simmer, sauté and hold simultaneously across a single 900mm footprint.
• Infinitely variable power control on each zone via a large, easy-to-use knob gives precise, consistent results across all cooking applications.
• Leg stand configuration with open underbench access allows flexible placement within modular cooking suites and simplifies cleaning underneath the unit.
• Front levelling feet paired with rear castors make repositioning straightforward while ensuring a stable, level installation.
• Alternative zone configuration with full-area induction on the left and round zones on the right is available to order, accommodating different workflow preferences.

Key Features

• 900mm wide freestanding induction cooktop on stainless steel leg stand
• Four induction cooking zones each rated at 5kW, totalling 20kW combined output
• Zone layout: 2 x 270mm diameter round zones on left-hand side, 2 x full-area square zones on right-hand side
• 6mm thick ceramic glass cooking surface across all zones
• Automatic pan detection switches individual zones off when cookware is removed
• Indicator lights for heating-on status, pan detection and error notification on each zone
• Large control knob per zone with infinitely variable power control
• Digital induction control with variable power settings
• Forced-air (fan) cooling system
• 304 stainless steel construction throughout
• 1.2mm stainless steel splashback (165mm high)
• Suite-matching undershelf included
• Stainless steel leg stand fitted with two front levelling feet and two rear rollers for easy repositioning
• Freestanding installation; integrates with Blue Seal Evolution Series modular suites
• 3-phase electrical supply: 400–415V, 3P+E, 28A per phase, 50/60Hz
• Alternative configuration (full-area zones on LHS, round zones on RHS) available to order
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Cooling Type: Forced Air | Fan Cooled
• Installation Type: Freestanding
• Control Type: Digital Induction Control
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Surface: 6mm Ceramic Glass
• Cooking Surface Area (mm): ø270 per zone
• Number of Burners: 4
• Power Rating: 20kW|3P+E 28A / phase|400-415V|50/60Hz
• Power Supply: 400-415 Vac | 3P+E | 50/60 Hz
• Voltage/Phase: 400-415V | 3 Phase
