Overview

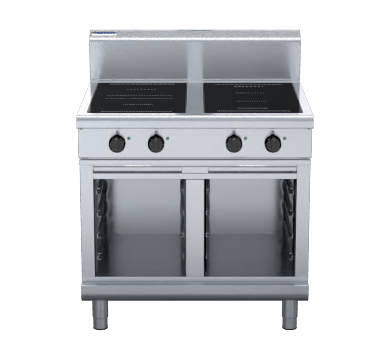

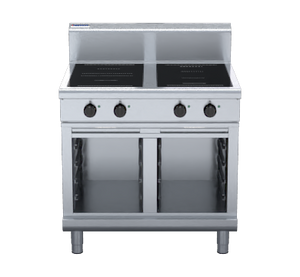

Waldorf IN8400R5F-CB 800 Series 900mm Electric Induction Cooktop with Cabinet Base

The Waldorf IN8400R5F-CB is a 900mm wide commercial induction cooktop from the 800 Series, mounted on a full cabinet base for a complete, self-contained cooking station. It features four independent 5kW induction zones arranged across a 6mm thick ceramic glass surface, with two 270mm diameter round zones on the left-hand side and two 260mm square full-area zones on the right-hand side, delivering a total of 20kW of induction power.

Designed for demanding commercial kitchen environments, the unit combines heavy-duty construction with practical operational features including automatic pan detection, infinitely variable power control knobs for each zone, and a 1.2mm stainless steel splashback. Stainless steel legs with two adjustable feet at the front and two rear rollers make positioning and levelling straightforward. An alternative configuration with full-area induction on the left and round zones on the right is available to order.

Key Benefits

• Induction technology delivers rapid heat response, reducing warm-up times and improving kitchen throughput during busy service periods.
• Automatic pan detection cuts power to any zone the moment cookware is removed, improving energy efficiency and reducing the risk of accidental burns.
• Infinitely variable power control on each zone allows chefs to dial in precise heat levels, supporting consistent cooking results across multiple dishes simultaneously.
• The cool ceramic glass surface around active zones creates a safer working environment and makes wiping down spills fast and effortless.
• Four fully independent zones, each rated at 5kW, give flexibility to run different cooking tasks concurrently without interference between zones.
• Rear rollers and front adjustable feet simplify repositioning and levelling during installation or kitchen reconfiguration.
• The integrated cabinet base provides built-in storage or equipment space directly beneath the cooktop, maximising the utility of the unit's footprint.
• An optional reversed zone layout (full-area induction on the left, round zones on the right) accommodates different workflow preferences or kitchen configurations.

Key Features

• Four-zone electric induction cooktop mounted on a full cabinet base
• 2 x 5kW round induction zones (270mm diameter) on the left-hand side
• 2 x 5kW square full-area induction zones (260mm) on the right-hand side
• Total connected power: 20kW across four independent zones
• 6mm thick ceramic glass cooking surface
• 1.2mm stainless steel splashback
• Automatic pan detection: each zone deactivates immediately when cookware is removed
• Large control knob per zone with infinitely variable power settings
• Heating-on, pan-detection and error indicator lights for each zone
• Stainless steel legs with two adjustable feet at the front and two rear rollers
• Three-phase (3P) electrical supply
• Heavy-duty construction suited to continuous commercial use
• Designed for easy cleaning, installation and servicing
• Alternative configuration available to order: full-area induction on the left-hand side and round induction on the right-hand side
• Racking kit not included

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
