Overview

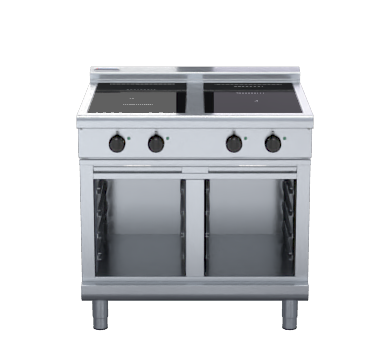

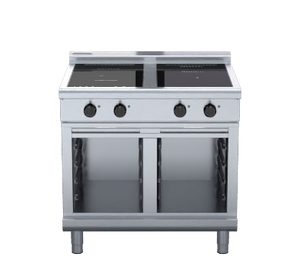

Waldorf INL8400R5F-CB 800 Series 900mm Electric Induction Cooktop Low Back Version Cabinet Base

The Waldorf INL8400R5F-CB is a heavy-duty 900mm electric induction cooktop from the 800 Series, mounted on a cabinet base with a low back splashback. It features four induction cooking zones delivering a total of 20kW, with two 5kW round zones on the left-hand side and two 5kW full-area square zones on the right-hand side, all beneath a 6mm thick ceramic glass cooking surface built for demanding commercial kitchen environments.

Designed for efficiency and ease of operation, each zone is controlled by a large rotary knob with infinitely variable power adjustment, and automatic pan detection cuts power to any zone the moment cookware is removed. The unit is constructed for straightforward cleaning, installation and servicing, and an alternative configuration with full-area zones on the left and round zones on the right is available to order, giving operators flexibility to match their workflow.

Key Benefits

• Induction technology delivers fast, responsive heat directly to the pan, reducing heat-up times and improving service speed during busy periods.
• Automatic pan detection immediately switches off any zone when cookware is removed, improving energy efficiency and enhancing safety.
• Infinitely variable power control on each zone allows precise, consistent temperature management across all four cooking positions.
• The ceramic glass cooking surface stays cooler than conventional cooktops, creating a safer working environment and reducing ambient kitchen heat.
• Four independent 5kW zones provide versatile cooking capacity, enabling different dishes to be prepared simultaneously at different power levels.
• Heavy-duty construction is built to withstand the rigours of continuous commercial use, minimising downtime and maintenance requirements.
• Stainless steel legs with two adjustable feet at the front and two rear rollers allow easy levelling and convenient repositioning for cleaning or service access.
• The smooth ceramic glass surface is easy to wipe down, reducing cleaning time between services.
• An optional reversed zone configuration (full-area left, round right) is available to order, allowing the unit to be tailored to specific kitchen layouts.

Key Features

• Four-zone electric induction cooktop mounted on a cabinet base with a low back splashback
• 2 x 5kW round induction zones (270mm diameter) positioned on the left-hand side
• 2 x 5kW full-area square induction zones (260mm square) positioned on the right-hand side
• Total connected power of 20kW across all four zones
• 6mm thick ceramic glass cooking surface for durability and easy maintenance
• 1.2mm stainless steel low back splashback
• Large, easy-to-use rotary control knob per zone with infinitely variable power adjustment
• Automatic pan detection cuts power to each zone when cookware is lifted or removed
• Heating-on, pan detection and error indicator lights for at-a-glance zone status monitoring
• Stainless steel legs with two adjustable feet at the front and two rollers at the rear for levelling and mobility
• Heavy-duty construction suited to high-volume commercial kitchen operation
• Designed for straightforward cleaning, installation and servicing
• Alternative configuration available to order with full-area induction zones on the left-hand side and round zones on the right-hand side
• Racking kit not included
• Three-phase electrical supply (3P)

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
