Overview

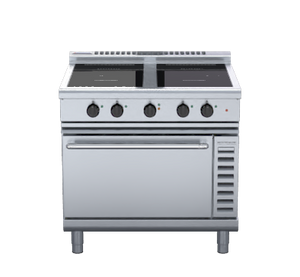

Waldorf INL8410ECR5 800 Series 900mm Induction Range with Convection Oven, Low Back Configuration

The Waldorf INL8410ECR5 is a heavy-duty 900mm combination cooking unit from the Waldorf 800 Series, purpose-built for high-volume commercial kitchens. The cooktop features four 5.0kW round induction zones on a 6mm thick ceramic glass surface with automatic pan detection, while the underbody houses a full GN 2/1 electric convection oven rated at 6.1kW, equipped with dual circulation fans and a thermostat spanning 50 to 320°C.

The unit is constructed with a fully welded vitreous enamelled oven liner, a drop-down oven door, and a vitreous enamelled control panel, all of which resist grease and simplify daily cleaning. The low back design suits open kitchen and display environments, and the fully modular format streamlines installation and servicing. Mobility and levelling are handled by 63mm diameter heavy-duty stainless steel legs, with a pair of adjustable feet positioned at the front and a pair of rollers located at the rear, allowing precise positioning and easy pull-out access.

Key Benefits

• Four independent induction zones deliver rapid, responsive heat directly to the cookware, reducing energy waste and improving cooktop efficiency.
• Automatic pan detection cuts power to any induction zone the moment cookware is removed, enhancing safety and saving energy during busy service periods.
• Dual oven circulation fans ensure even heat distribution across all rack positions, supporting consistent baking, roasting and reheating results.
• GN 2/1 oven capacity with five-position racking accommodates large batch loads, ideal for high-output bakeries, cafes and catering operations.
• Wide thermostat range of 50 to 320°C covers delicate proofing through to high-heat roasting in a single versatile oven cavity.
• The fully welded vitreous enamelled oven liner, drop-down door and enamelled control panel resist grease and staining, making daily cleaning faster and more thorough.
• Front adjustable feet paired with rear-mounted rollers allow the unit to be levelled precisely on uneven floors and rolled out easily for behind-unit cleaning or servicing.
• Fully modular construction simplifies integration into an 800 Series suite and reduces downtime during maintenance or component replacement.

Key Features

• 4 cooking zone electric induction cooktop configuration mounted over the convection oven
• 4 x 5.0kW round induction zones totalling 20kW of cooktop power
• 6mm thick ceramic glass cooking surface for durability and easy wiping
• Automatic pan detection switches each induction zone off when cookware is lifted
• GN 2/1 electric convection oven with 6.1kW heating elements and dual circulation fans for uniform heat distribution throughout the cavity
• Thermostatic control adjustable from 50°C to 320°C
• GN 2/1 oven capacity with 5-position racking system
• Fully welded vitreous enamelled oven liner for hygiene and longevity
• Drop-down oven door with vitreous enamelled finish, and separately enamelled control panel
• Heavy-duty stainless steel exterior finish throughout
• 63mm diameter heavy-duty stainless steel legs: two height-adjustable front feet and two rear rollers for levelling and repositioning
• Low back version (INL) suited to open kitchen and display installations
• Fully modular design for straightforward installation, cleaning and servicing
• Three-phase electrical supply

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
