Overview

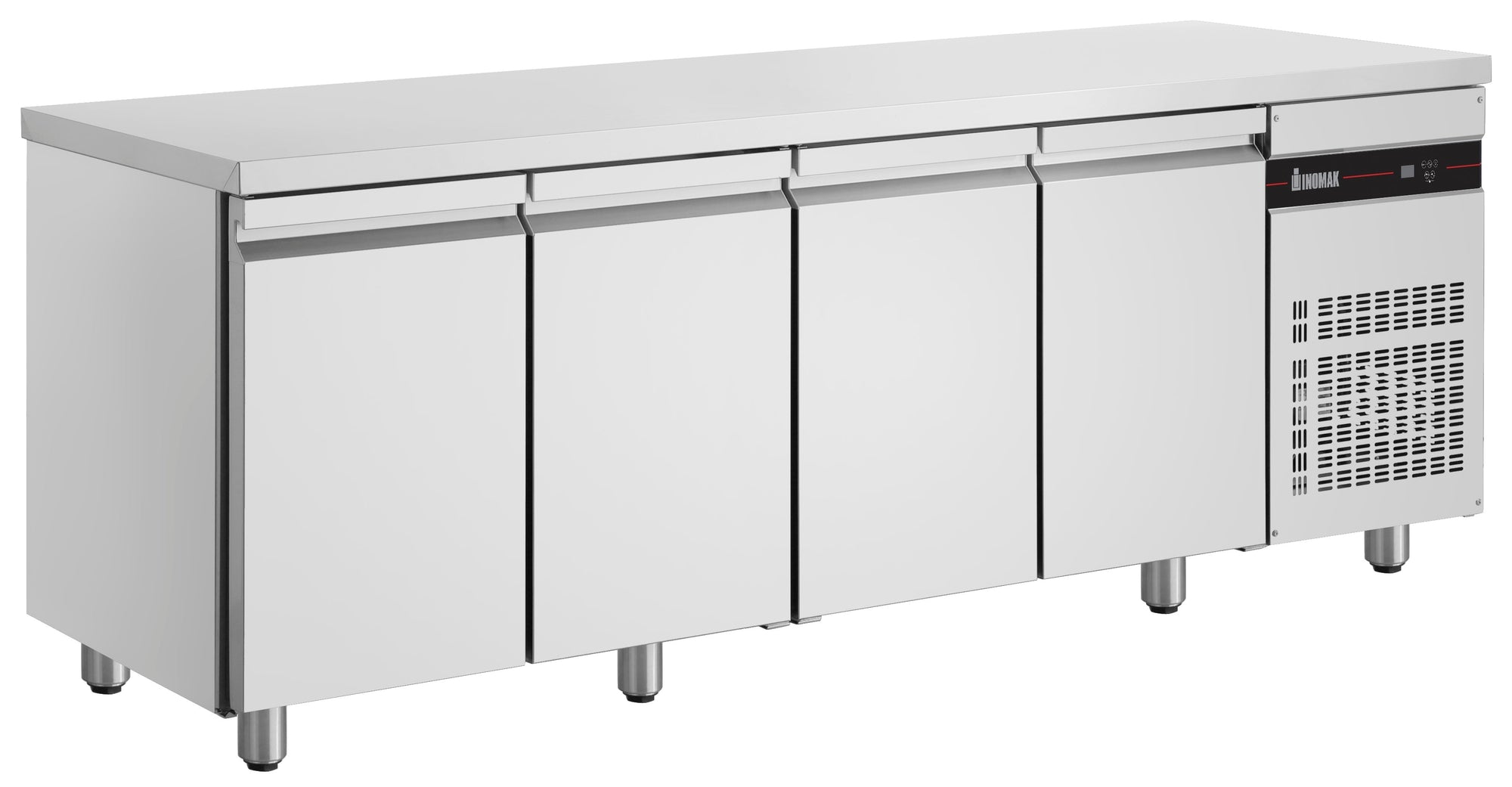

Inomak UBI7224 Four-Door Stainless Steel Undercounter Fridge 2240mm

The Inomak UBI7224 is a four-door undercounter refrigerator from the Pine Series, purpose-built for the demands of busy commercial kitchens. Measuring 2240mm wide and just 700mm deep, it slots neatly beneath a standard bench to deliver 571 litres of cold storage directly on the service line, accommodating full 1/1 GN pans throughout. Constructed in Greece from heavy-duty grade 304 stainless steel inside and out, it operates in ambient temperatures up to 43°C and maintains a working range of 0°C to +10°C.

Designed for reliable, low-maintenance operation, the UBI7224 features an embedded controller for precise temperature management, automatic defrost to reduce manual intervention, and self-closing doors equipped with a return mechanism for angles less than 90°. The unit is supplied on castors for easy repositioning and cleaning, and is backed by a two-year parts and labour warranty. Its use of R290 refrigerant supports an innovative condenser design that minimises maintenance and aligns with energy efficiency and sustainability standards.

Key Benefits

• 571-litre capacity spread across four doors keeps large volumes of prepped ingredients close at hand during service without consuming valuable floor space.
• Worktop-height installation slides under existing benches to maximise usable kitchen floor area and maintain an efficient workflow.
• Full 1/1 GN pan compatibility means trays transfer directly from prep to storage with no re-panning required.
• Embedded controller delivers precise, consistent temperature management between 0°C and +10°C to meet food safety requirements.
• Automatic defrost reduces the need for manual maintenance and helps sustain efficient cooling performance over time.
• Self-closing doors with a sub-90° return mechanism ensure the cabinet re-seals automatically, preserving temperature and reducing energy consumption.
• Rated for ambient temperatures up to 43°C, making it well suited to hot commercial kitchen environments.
• Supplied on castors straight out of the box for straightforward placement, repositioning, and thorough cleaning underneath.
• Two-year parts and labour warranty provides long-term peace of mind for commercial operators.

Key Features

• 571-litre total storage capacity
• Four solid doors across a 2240mm width
• Part of the Inomak Pine Series; manufacturer code PNRP9999/AUS
• Heavy-duty grade 304 stainless steel construction, interior and exterior
• 700mm depth for underbench installation
• Compatible with 1/1 GN pans
• Embedded thermostat controller for accurate temperature regulation
• Operating temperature range: 0°C to +10°C
• Rated for ambient temperatures up to +43°C
• Automatic defrost system
• Self-closing doors fitted with a return mechanism activating at angles less than 90°
• Supplied on castors (not legs as sometimes pictured)
• R290 refrigerant with optimised condenser design for reduced maintenance
• 240V power supply; 0.45kW power draw; 10A plug
• Dimensions: 2240mm (W) x 700mm (D) x 890mm (H)
• Unit weight: 162kg
• Manufactured in Greece
• 2-year parts and labour warranty

Specifications

• Width (mm): 2240
• Depth (mm): 700
• Height (mm): 890
• Weight (kg): 162
• Packed Width (mm): 2250
• Packed Depth (mm): 750
• Packed Height (mm): 940
• Shipping Cubic: 1.586
• Shipping Weight: 162
• Voltage (V): 240
• Power (kW): 0.45
• Warranty (months): Double Gold Star Warranty - 2 Years Parts And Labour
• Country of Origin: Greece
• No. of Doors: 4
• Door Type: Solid
