Overview

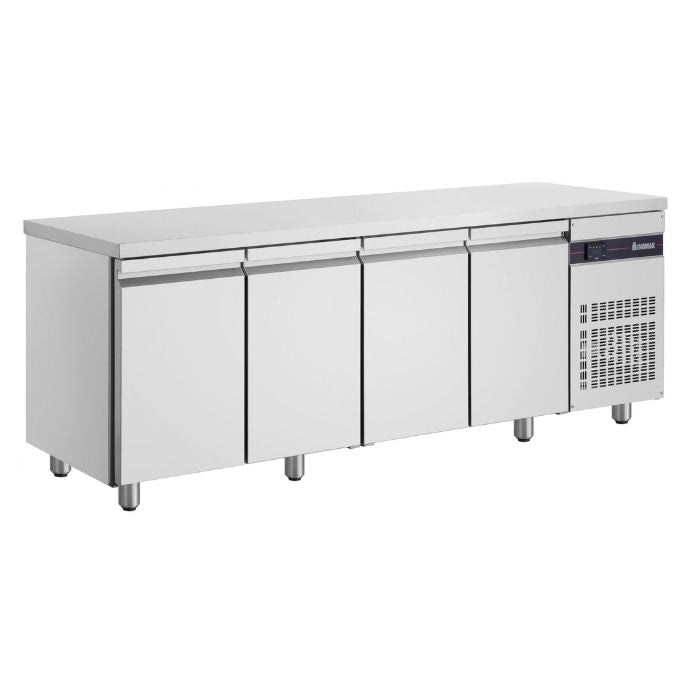

Inomak UBI6224 Ultra Slimline 4 Door Underbench Chiller 2240mm

The Inomak UBI6224 is a heavy-duty underbench refrigeration unit from the Pine Series, purpose-built for busy commercial kitchens where bench space and depth are at a premium. Spanning 2240mm wide yet only 600mm deep, this four-door chiller delivers 475 litres of usable refrigerated storage within a slimline footprint, making it an ideal solution beneath preparation benches in tight kitchen layouts.

Constructed in Greece from grade 304 stainless steel inside and out, the UBI6224 is engineered for long-term durability and hygiene in demanding food service environments. It operates across a wide ambient range up to 43°C, features an embedded controller for straightforward temperature management, and arrives supplied on castors for easy positioning and cleaning access. The unit carries a two-year parts and labour warranty and meets current energy class regulations for commercial refrigerators.

Key Benefits

• Ultra-slim 600mm depth fits neatly beneath standard preparation benches without consuming valuable kitchen floor space.
• 475 litre capacity across four solid doors provides substantial chilled storage for ingredients and prepped items within easy reach of the work surface.
• Embedded controller with touchscreen thermostat gives staff quick, accurate temperature adjustment and monitoring.
• Automatic defrost eliminates manual maintenance cycles, keeping the unit operating efficiently with minimal staff intervention.
• Anticorrosive protection on the evaporators extends the service life of internal refrigeration components in humid kitchen conditions.
• Doors fitted with a self-closing return mechanism for angles less than 90 degrees reduce the risk of accidental door-ajar situations, protecting food safety and energy efficiency.
• Supplied on castors for straightforward repositioning and thorough cleaning underneath the unit, supporting food safety compliance.
• Rated for ambient temperatures up to 43°C, ensuring reliable performance even in hot kitchen environments.
• Two-year parts and labour warranty backed by Inomak's Double Gold Star programme provides peace of mind for commercial operators.

Key Features

• Four solid self-closing doors with return mechanism activated for door angles less than 90 degrees.
• 475 litre total refrigerated capacity.
• 600mm depth ultra-slimline profile designed for underbench installation.
• Heavy-duty grade 304 stainless steel construction on both interior and exterior surfaces.
• Embedded touchscreen thermostat controller for precise temperature management.
• Operating temperature range: 0°C to +10°C.
• Maximum ambient operating temperature: +43°C.
• Automatic defrost system.
• Anticorrosive protection applied to evaporators.
• Supplied on castors as standard.
• Part of the Inomak Pine Series, designed with eco-friendliness and compliance with current commercial refrigerator energy class regulations.
• Advanced condenser design requiring minimal maintenance on R290-equipped models.
• 240V power supply, 0.45kW power consumption.
• Unit weight: 172kg.
• Manufactured in Greece.
• Manufacturer code: PMRP9999/AUS.
• Two-year parts and labour warranty (Inomak Double Gold Star Warranty).

Specifications

• Width (mm): 2240
• Depth (mm): 600
• Height (mm): 890
• Weight (kg): 172
• Packed Width (mm): 2250
• Packed Depth (mm): 650
• Packed Height (mm): 940
• Shipping Cubic: 1.37475
• Shipping Weight: 172
• Voltage (V): 240
• Power (kW): 0.45
• Warranty (months): Double Gold Star Warranty - 2 Years Parts And Labour
• Country of Origin: Greece
• No. of Doors: 4
• Door Type: Solid
