Overview

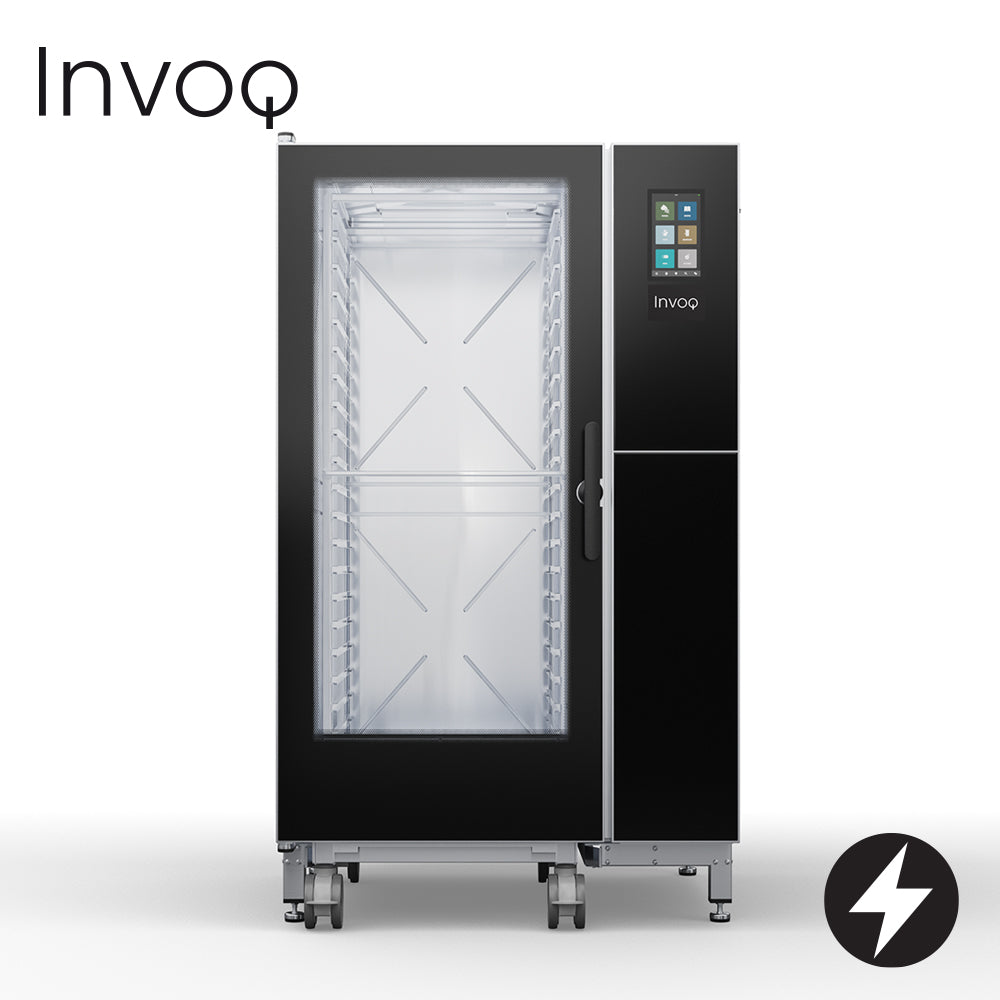

Invoq 20-2/1 GN Hybrid Combi Oven

The Invoq 20-2/1 GN Hybrid Combi Oven is a high-capacity electric combi oven designed for large-scale commercial kitchens that demand volume, precision and efficiency. It generates steam through both boiler and injection systems, delivering high-density, consistent steam across every cook cycle, while combining convection and steam cooking modes in a single unit.

With a capacity of 20 trays at GN 2/1 or 40 trays at GN 1/1 on 65 mm runners, and a maximum oven load of 180 kg, this oven is purpose-built to handle serious production volumes. Smart control features including ClimateControl, SmartChef, MenuPlanner and CareCycle support consistent, repeatable results while helping kitchens manage resources effectively.

Key Benefits

• Handles roasting, steaming, baking and food regeneration in a single oven, reducing the need for multiple pieces of equipment.
• Dual steam generation via boiler and injection systems ensures high-density, even steam for consistent cooking outcomes across full loads.
• Capacity for up to 20 GN 2/1 trays or 40 GN 1/1 trays in one oven supports high-volume service without multiple cooking cycles.
• Maximum load capacity of 180 kg per oven allows large batch cooking in a single run, improving kitchen throughput.
• SmartChef and MenuPlanner functions enable programmable, repeatable cooking programs that reduce reliance on operator skill and minimise errors during busy service periods.
• ClimateControl technology helps maintain precise humidity and temperature conditions within the oven cavity, improving product quality and yield.
• CareCycle automated cleaning supports hygiene compliance and reduces the time and labour involved in manual oven maintenance.
• 65 mm runner spacing accommodates standard GN tray formats and allows flexible loading configurations to suit varying menu requirements.

Key Features

• Hybrid combi oven combining convection and steam cooking modes
• Steam generation via both boiler and injection systems for high-density steam delivery
• Capacity: 20 trays GN 2/1 or 40 trays GN 1/1
• 65 mm runner spacing throughout the oven cavity
• Maximum tray load: 9 kg per tray
• Maximum oven load: 180 kg
• ClimateControl for precise humidity and temperature management
• SmartChef intelligent cooking assistance
• MenuPlanner for programmable multi-course or production cooking sequences
• CareCycle automated cleaning and care program
• Electric-powered, 56 kW input, three-phase power supply
• Dimensions: 1077 mm wide x 961 mm deep x 1730 mm high
• Weight: 362 kg

Specifications

• Width (mm): 1077
• Depth (mm): 961
• Height (mm): 1730
• Weight (kg): 362
• Capacity (Litres): 20 trays GN2/1 or 40 trays GN1/1
• Power / Gas Input: 56 kW
• Power Supply: 3ph
