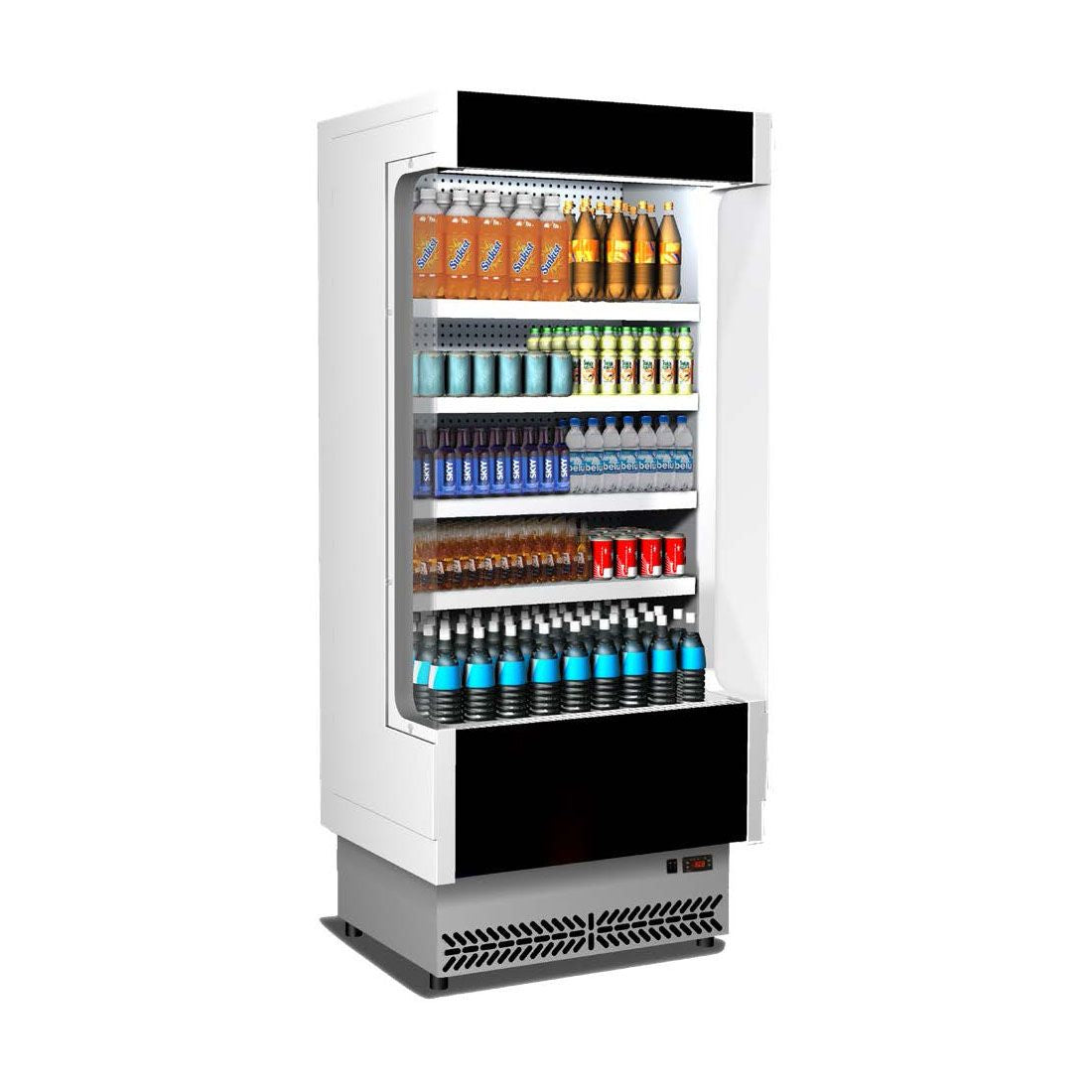

Tecnodom TDVC60-CA-100 Open Chiller with 4 Shelves

The Tecnodom TDVC60-CA-100 is a professionally designed open chiller built entirely in Italy, combining compact footprint with a generous display surface suitable for supermarkets, convenience stores, cafés, and larger distribution environments. Rated to Climate Class 4 and operating in ambient conditions up to 30°C at 60% relative humidity, this unit delivers consistent, ventilated cooling across all four shelf levels, keeping chilled food and beverages at safe serving temperatures around the clock.

Constructed with an eco-friendly approach, the TDVC60-CA-100 uses a CFC-free refrigeration system and 100% environmentally responsible refrigerant handling. An electronic control panel, electric defrost, and an autorolling manual night blind combine to reduce energy consumption and operator workload, while the four height-adjustable shelves made from non-toxic white-painted steel sheet allow flexible merchandising layouts to suit any product range.

Key Benefits

• Open-front design gives shoppers and staff immediate, self-service access to chilled products, helping drive impulse purchases and faster service.
• Ventilated cooling system circulates air evenly across all shelf levels, preventing hot spots and maintaining consistent product freshness throughout the cabinet.
• Electric defrost and electronic control panel automate routine maintenance tasks, minimising downtime and reducing the need for manual intervention during trading hours.
• Autorolling manual night blind allows the cabinet to be closed overnight, cutting energy consumption significantly when the store is not in operation.
• Four height-adjustable shelves made from non-toxic white-painted steel sheet provide flexible merchandising options to accommodate a wide variety of product sizes and categories.
• Upper internal pink neon lighting enhances product colour rendition and visual appeal, making chilled goods more attractive to passing customers.
• CFC-free tank and 100% eco-friendly refrigerant specification support sustainability goals and compliance with modern environmental standards.
• Climate Class 4 rating confirms reliable performance in warm, humid commercial environments up to 30°C and 60% relative humidity.
• Made in Italy technology, design, and full production process ensures rigorous quality standards and straightforward access to parts under the 2-year parts and labour warranty.

Key Features

• Temperature range: 0°C to +2°C
• Open-front chiller configuration for self-service display
• Overall width of 1080 mm including 40 mm thick side walls on each side

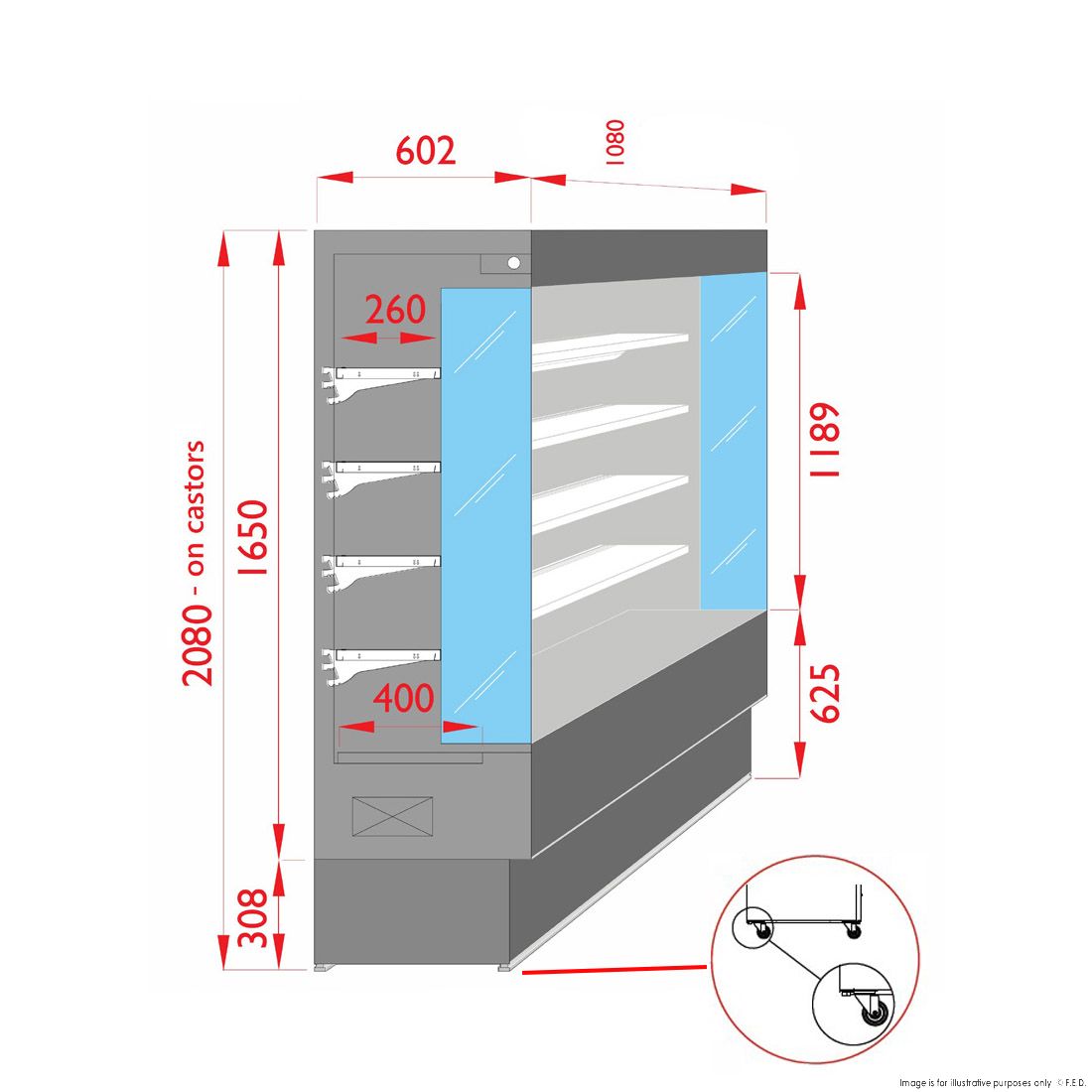

• Dimensions: 1080 mm wide x 602 mm deep x 2080 mm high
• Approximate display capacity: 1000 litres
• Ventilated refrigeration system for uniform air distribution
• Electronic control panel for precise temperature management
• Electric defrosting system
• Upper internal pink neon lighting for enhanced product presentation
• Autorolling manual night blind for overnight energy saving
• 4 shelves constructed from non-toxic (atossic) white-painted steel sheet
• Shelves are easily adjustable in height; supplied without shelf lighting or shelf risers
• CFC-free refrigerant tank construction
• 100% eco-friendly refrigerant and manufacturing process
• Climate Class 4 rated: designed for ambient conditions of 30°C and 60% relative humidity
• Colorbond body material
• Mobility via castors/wheels for ease of positioning and cleaning
• Power supply: 240 V, 1220 W / 10 A
• Easy installation design
• Suitable for small, medium, and large retail and hospitality distribution areas
• Entirely designed, engineered, and manufactured in Italy
• 2-year parts and labour warranty

Specifications

• Width (mm): 1080
• Depth (mm): 602
• Height (mm): 2080
• Weight (kg): 462.75
• Packed Width (mm): 1230
• Packed Depth (mm): 700
• Packed Height (mm): 2150
• Shipping Weight: 140
• Body Material: Colorbond
• Mobility: Castors/Wheels
• No. of Shelves: 4
• Power Delivery: 240V, 1220W/10A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour
• Capacity (Litres): 1000
• Temperature Range: +2°C to +8°C (approx.)
