Overview

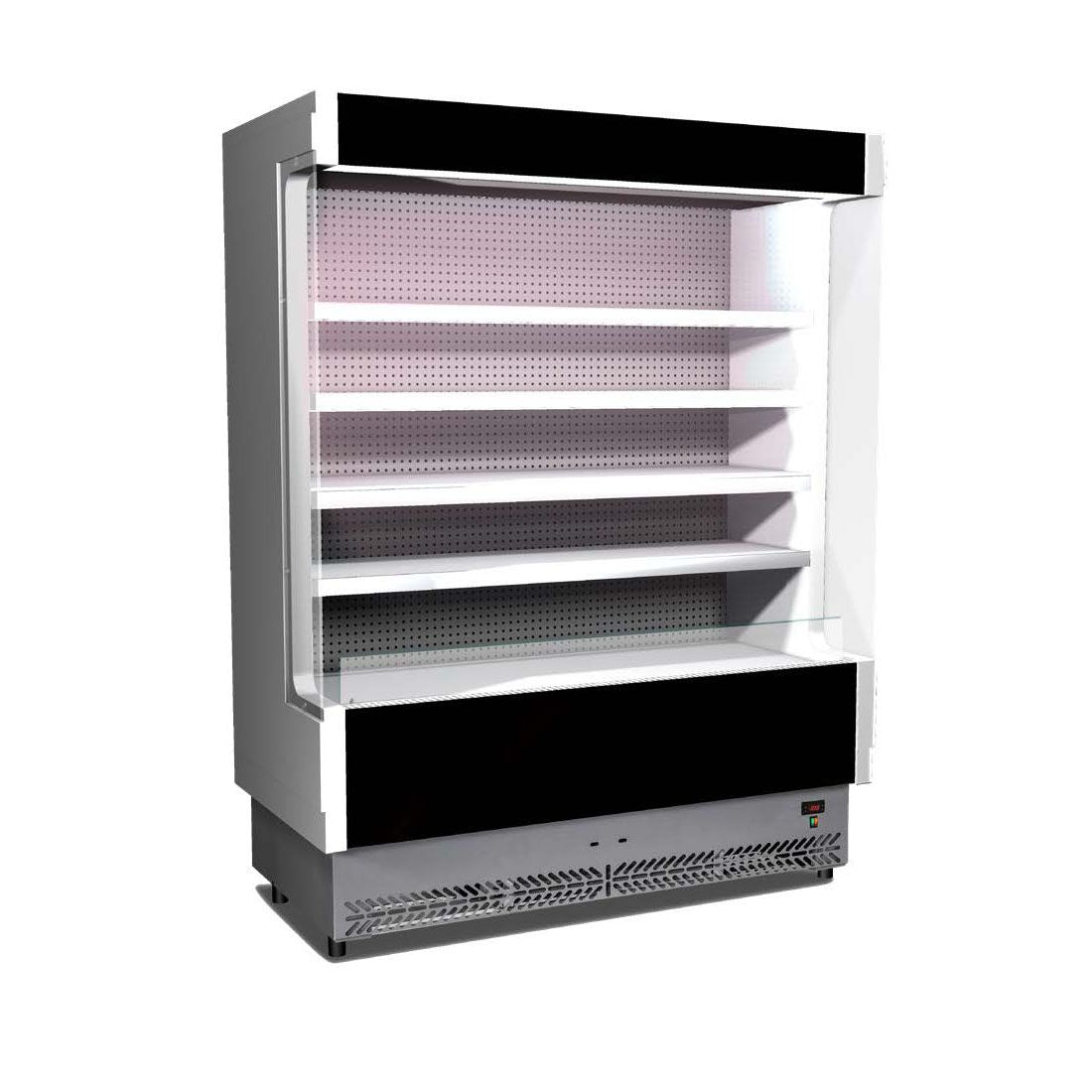

Tecnodom TDVC60-CA-187 Open Chiller with 4 Shelves

The Tecnodom TDVC60-CA-187 is a commercial open-front display chiller designed for supermarkets, retail stores, and hospitality venues of all sizes. Manufactured entirely in Italy — from technology and design through to full production — this unit delivers a compact footprint with a generous display surface, making it well suited to small through to large distribution environments. The 1955 mm total length includes 40 mm thick side walls on each side, and the cabinet operates to Climate Class 4 standards, performing reliably in ambient conditions of up to 30°C at 60% relative humidity.

Built around a ventilated refrigeration system, the TDVC60-CA-187 maintains consistent temperatures across all four shelf levels, keeping chilled food and beverages at safe serving conditions. An electronic control panel, electric defrost, and an autorolling manual night blind combine to minimise daily maintenance demands. The refrigerant tank is manufactured without CFC use, supporting the unit's 100% eco-friendly credentials. A 2-year parts and labour warranty provides added confidence for commercial operators.

Key Benefits

• Open-front self-service design encourages customer interaction and impulse purchases, driving sales in retail and foodservice settings.
• Ventilated cooling distributes cold air evenly across all shelf levels, keeping stock consistently fresh and reducing temperature hot spots.
• Electric defrost and an autorolling manual night blind reduce hands-on maintenance and energy use outside of trading hours.
• Four height-adjustable shelves allow flexible merchandising layouts to accommodate products of varying sizes and packaging formats.
• Upper internal pink neon lighting enhances product presentation and visual appeal, drawing attention to displayed items.
• CFC-free refrigerant tank and 100% eco-friendly construction support sustainability goals without compromising performance.
• Climate Class 4 rating ensures reliable operation in warm, humid commercial environments up to 30°C at 60% relative humidity.
• Italian-engineered construction combines proven refrigeration technology with practical design suited to high-traffic commercial use.
• Straightforward installation process minimises setup time and disruption when commissioning in a new or existing space.

Key Features

• Open-front chiller configuration providing convenient self-service access for customers.

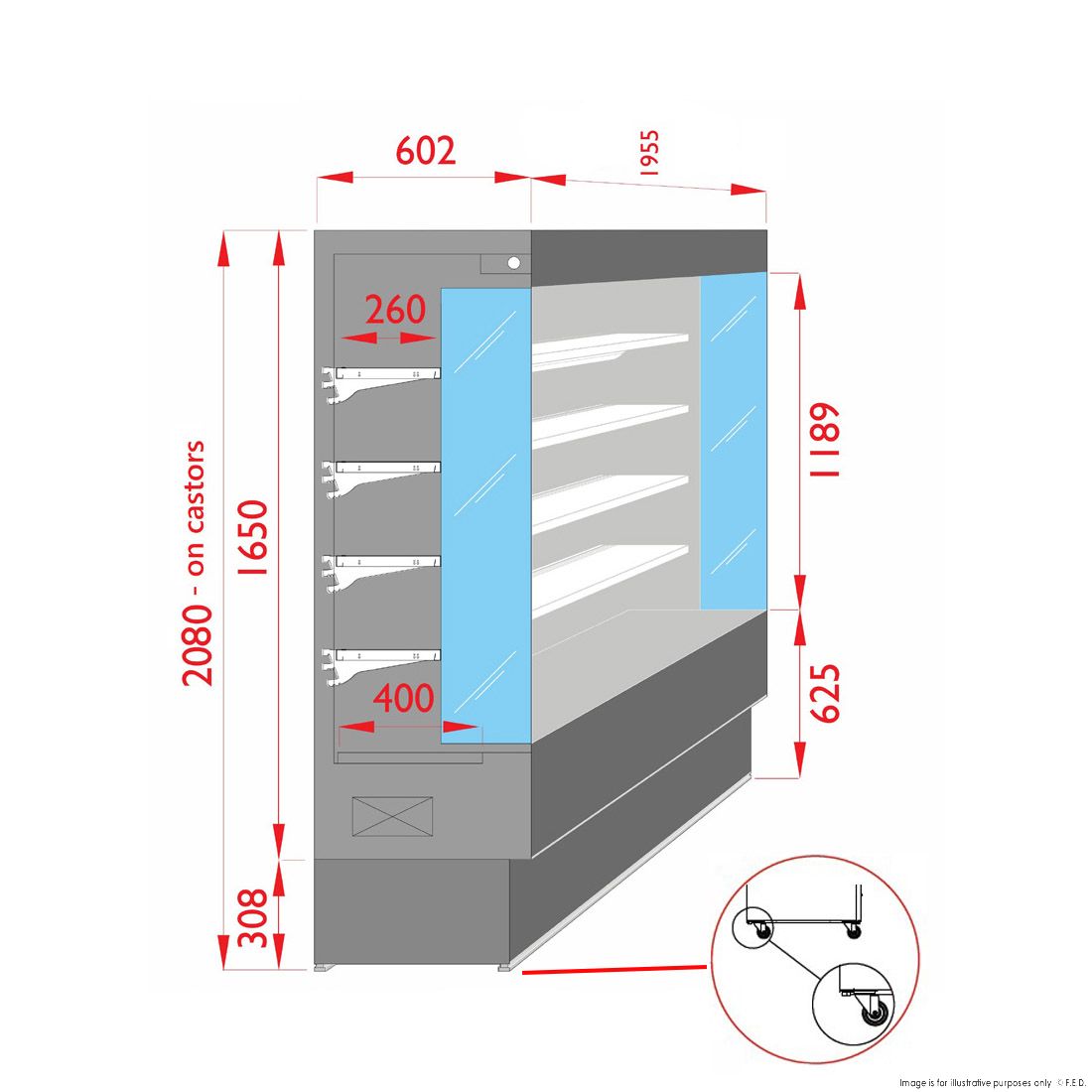

• Total length of 1955 mm, including 40 mm thick side walls on each side.
• Four shelves constructed from non-toxic (atossic) white-painted steel sheet, easily adjustable in height.
• Shelves supplied without integrated lighting and without shelf risers.
• Ventilated refrigeration system for uniform cooling throughout the cabinet.
• Electronic control panel for precise temperature management.
• Electric defrosting system for low-maintenance operation.
• Upper internal pink neon lighting to illuminate displayed products.
• Autorolling manual night blind to reduce energy consumption and maintain temperature when the cabinet is not in use.
• Refrigerant tank manufactured without CFC use — 100% eco-friendly.
• Climate Class 4 rated, suitable for ambient environments of 30°C at 60% relative humidity.
• Suitable for small, medium-sized, and large distribution areas.
• Designed and manufactured entirely in Italy.
• Easy installation for fast commissioning.
• Colorbond body construction.
• Castors/wheels for repositioning within the venue.
• Power supply: 240 V, 1850 W / 20 A.
• 2-year parts and labour warranty.

Specifications

• Width (mm): 1955
• Depth (mm): 602
• Height (mm): 2080
• Weight (kg): 790.25
• Packed Width (mm): 2100
• Packed Depth (mm): 700
• Packed Height (mm): 2150
• Shipping Weight: 255
• Body Material: Colorbond
• Mobility: Castors/Wheels
• No. of Shelves: 4
• Power Delivery: 240V, 1850W/20A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour
• Temperature Range: +2°C to +8°C (approx.)
