Overview

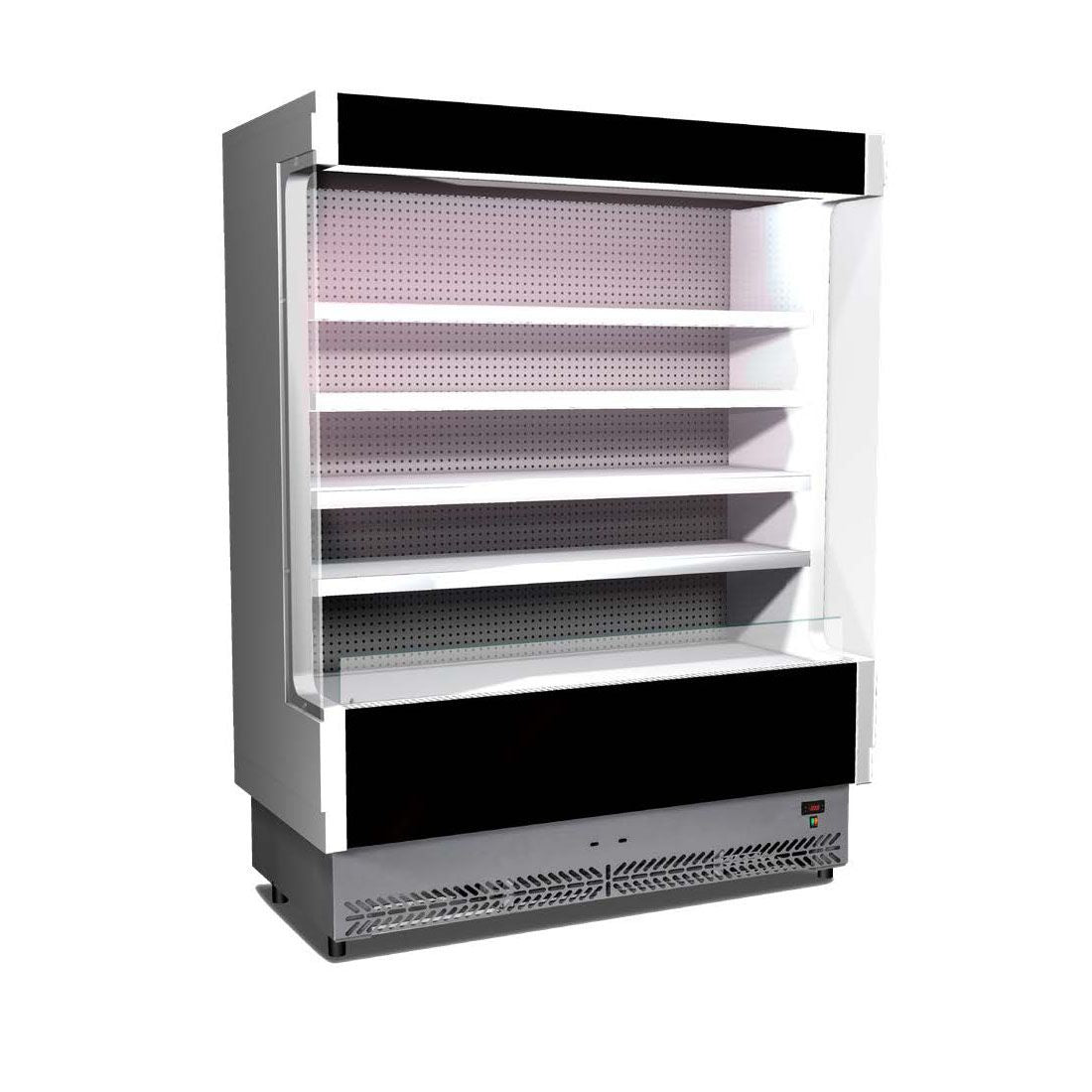

Tecnodom TDVC80-CA-150 Open Chiller with 4 Shelves

The Tecnodom TDVC80-CA-150 is a 1580 mm wide open-front refrigerated display chiller engineered and manufactured entirely in Italy, combining smart design with practical merchandising performance. With a total display area of 3.1 m² across four adjustable shelves, it suits supermarkets, convenience stores, cafés, and hospitality venues of all sizes, offering self-service access and excellent product visibility.

Rated to Climate Class 4, this chiller operates reliably in ambient conditions of up to 30°C at 60% relative humidity, making it well suited to busy Australian commercial environments. Its CFC-free ventilated refrigeration system, electronic control panel, and electric defrost function combine to deliver consistent cooling with minimal maintenance demands, while the autorolling manual night blind supports energy saving outside trading hours.

Key Benefits

• Open-front self-service design encourages customer interaction and drives impulse purchases without requiring staff assistance.
• 3.1 m² of display area across four height-adjustable shelves provides flexible merchandising for a wide variety of chilled products.
• Ventilated cooling system circulates cold air evenly across every shelf, keeping all stock within a safe temperature range consistently.
• Electric defrost function automates maintenance cycles, reducing downtime and minimising the need for manual intervention.
• Autorolling manual night blind helps conserve energy during closed hours without requiring permanent installation of doors.
• CFC-free refrigeration system supports environmentally responsible operation, contributing to a 100% eco-friendly classification.
• Climate Class 4 rating ensures reliable performance in warm, humid commercial spaces up to 30°C at 60% relative humidity.
• Made-in-Italy technology and production delivers a high standard of build quality, design finish, and long-term operational reliability.
• Two-year parts and labour warranty provides peace of mind and minimises total cost of ownership over the product's working life.

Key Features

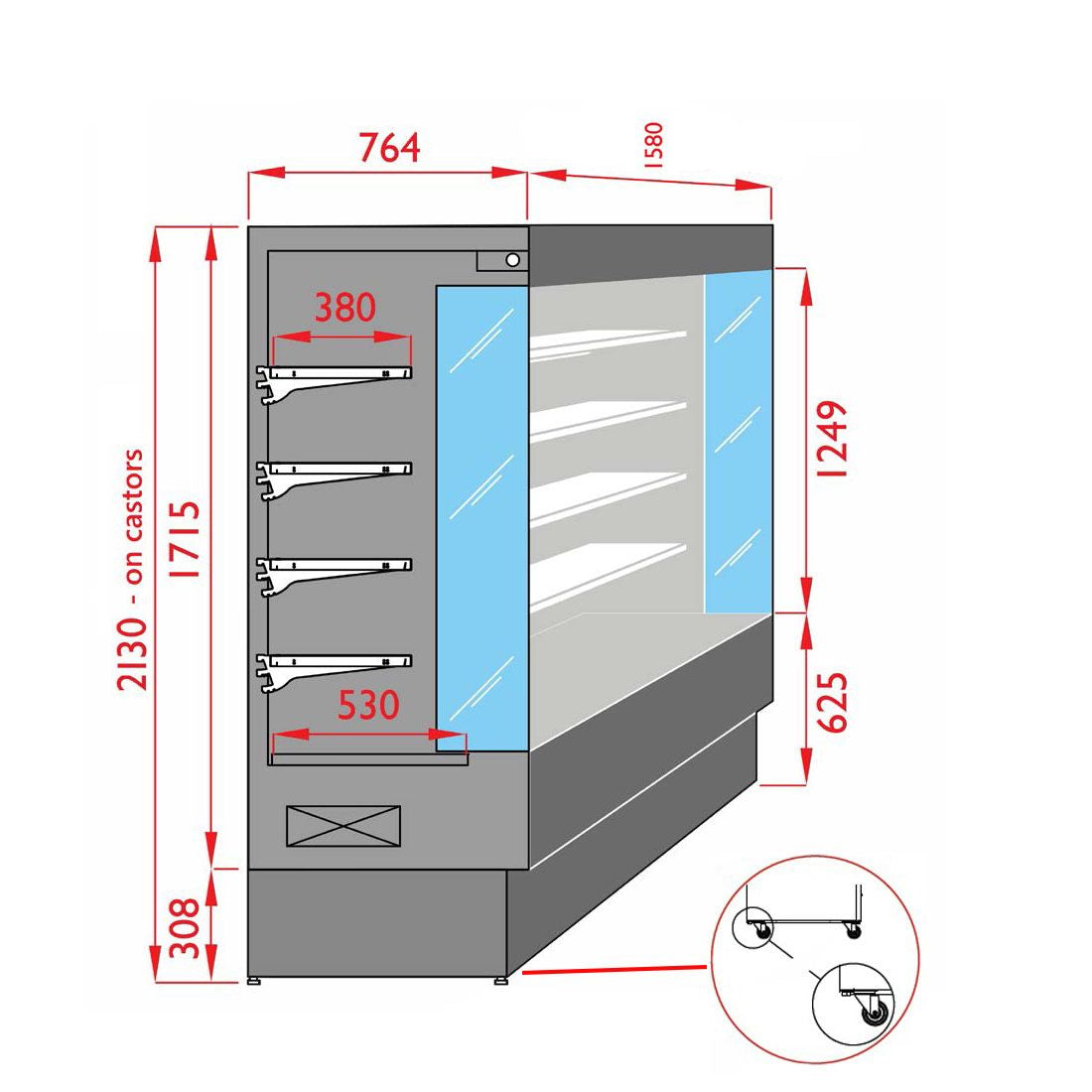

• Overall dimensions: 1580 mm wide (including 40 mm thick side walls) x 764 mm deep x 2135 mm high.
• Total display area: 3.1 m².
• Four shelves constructed from non-toxic white-painted steel sheet, adjustable in height; no integrated shelf lighting or shelf risers.
• Ventilated refrigeration system for uniform temperature distribution throughout the cabinet.
• Temperature range: 0°C to +2°C (supplier specification).
• Climate Class 4 rated for ambient environments of 30°C with 60% relative humidity.
• Electronic control panel for straightforward temperature management and operational monitoring.
• Electric defrosting system for automated, low-intervention maintenance.
• Upper internal pink neon lighting to illuminate and enhance displayed product presentation.
• Autorolling manual night blind to reduce energy consumption when the unit is not in active service.
• CFC-free refrigeration tank construction in line with environmental standards.
• 100% eco-friendly classification.
• Mobility provided by castors/wheels for ease of positioning and cleaning.
• Body constructed from Colorbond material.
• Capacity: approximately 1500 litres.
• Power supply: 240V, 2721W, 15A.
• Designed for easy installation.
• Suitable for small, medium, and large retail and foodservice distribution environments.
• Packed dimensions: 1730 mm wide x 900 mm deep x 2200 mm high; shipping weight: 240 kg.
• Made in Italy — technology, design, and full production.
• 2-year parts and labour warranty.

Specifications

• Width (mm): 1580
• Depth (mm): 764
• Height (mm): 2135
• Weight (kg): 856.25
• Packed Width (mm): 1730
• Packed Depth (mm): 900
• Packed Height (mm): 2200
• Shipping Weight: 240
• Body Material: Colorbond
• Mobility: Castors/Wheels
• Power Delivery: 240V, 2721W, 15A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour
• Capacity (Litres): 1500
• Temperature Range: +2°C to +8°C (approx.)
