Overview

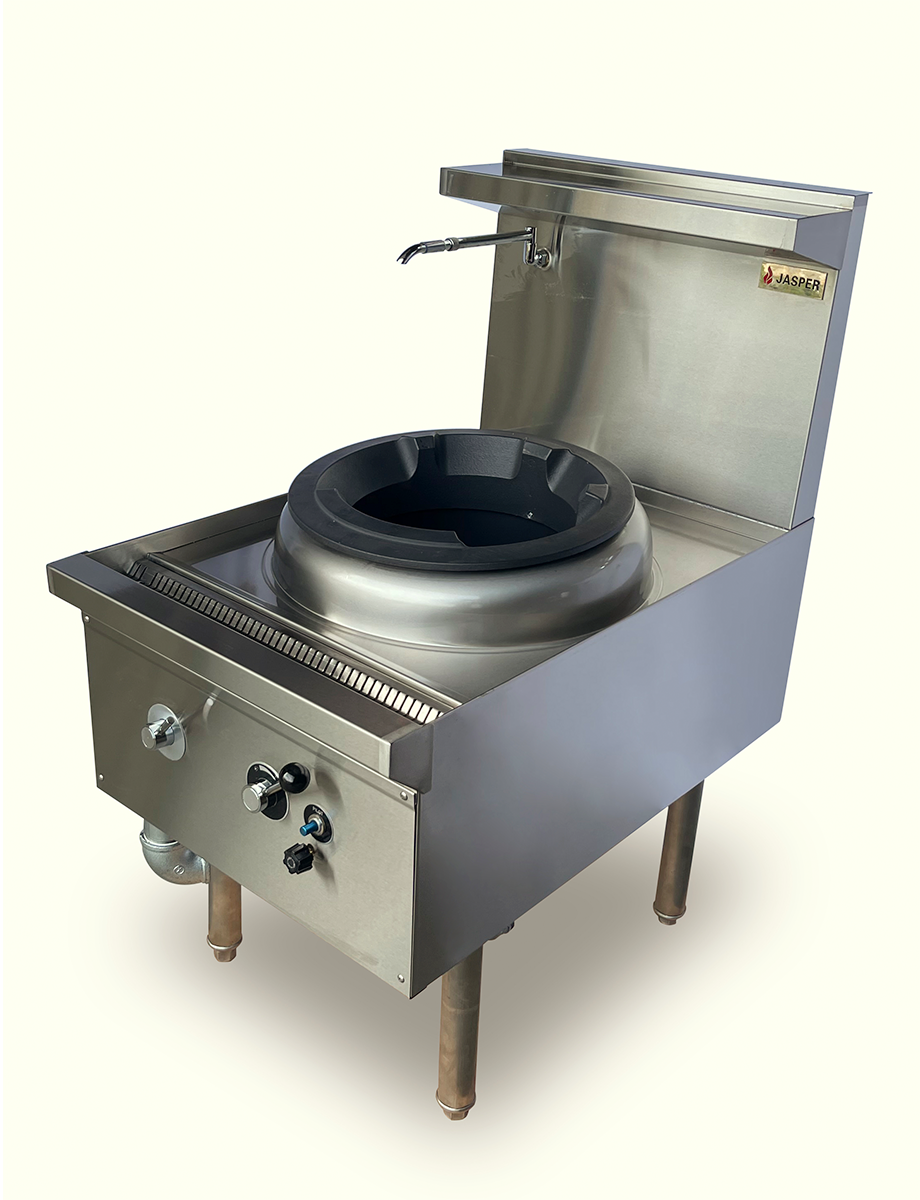

Jasper JA-1DB-N Single Wok Range Duckbill Burner Natural Gas

The Jasper JA-1DB-N is a single wok range built for high-volume commercial kitchens, featuring a duckbill burner that delivers 100 MJ/hr of natural gas output for rapid, intense heat suited to stir-frying and authentic Asian wok cookery. The 14-inch wok hole accommodates a full-size commercial wok, while the waterless burner configuration simplifies the overall design and reduces maintenance requirements compared to water-cooled alternatives.

Constructed with stainless steel throughout and mounted on a heavy-duty frame, this wok range is engineered to withstand the rigours of daily commercial use in restaurants and cafes. A high splash back with an integrated shelf contains cooking splatter and keeps frequently used items within easy reach, making the JA-1DB-N a practical, space-efficient workstation for Cantonese and Southeast Asian cooking styles. Gas Mark approved and also available in an LPG configuration.

Key Benefits

• 100 MJ/hr burner output delivers intense, responsive heat for fast stir-frying and wok tossing during busy service periods
• Waterless burner design eliminates the need for a water cooling system, reducing plumbing complexity and ongoing maintenance
• 14-inch wok hole accommodates a full commercial wok, supporting consistent cooking results across a variety of Asian dishes
• Flame failure protection with pilot ignition enhances safety by shutting off gas flow if the flame is extinguished unexpectedly
• High splash back contains cooking splatter, protecting surrounding surfaces and reducing clean-up time after service
• Integrated shelf within the splash back keeps condiments, sauces and utensils close at hand without occupying additional bench space
• Stainless steel construction resists corrosion and withstands the heat, steam and grease of a demanding commercial kitchen environment
• Gas Mark approved for use in Australia, with an LPG variant also available for kitchens without a natural gas connection

Key Features

• Duckbill-style burner rated at 100 MJ/hr on natural gas (90 MJ/hr on LPG)
• Single 14-inch wok hole sized for commercial wok cooking
• Waterless wok burner configuration - no water cooling system required
• Pilot ignition with flame failure safety protection
• Tall high splash back to contain splatter during high-heat wok cooking
• Shelf integrated into the splash back for convenient storage above the cooking area
• Full stainless steel construction for durability and easy cleaning
• Heavy-duty frame designed for sustained commercial kitchen use
• Available in natural gas (JA-1DB-N) and LPG configurations
• Gas Mark approved
• Suited to restaurants and cafes serving Cantonese and Southeast Asian cuisine

Specifications

• Width (mm): 600
• Depth (mm): 900
• Height (mm): 1180
• Weight (kg): 74
• Gas Type: Natural gas or LPG
• Packed Width (mm): 680
• Packed Depth (mm): 980
• Packed Height (mm): 1300
• Shipping Weight: 104
