Overview

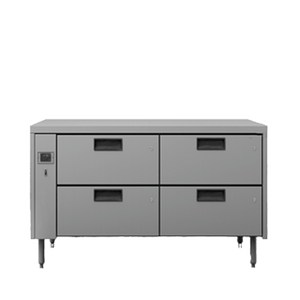

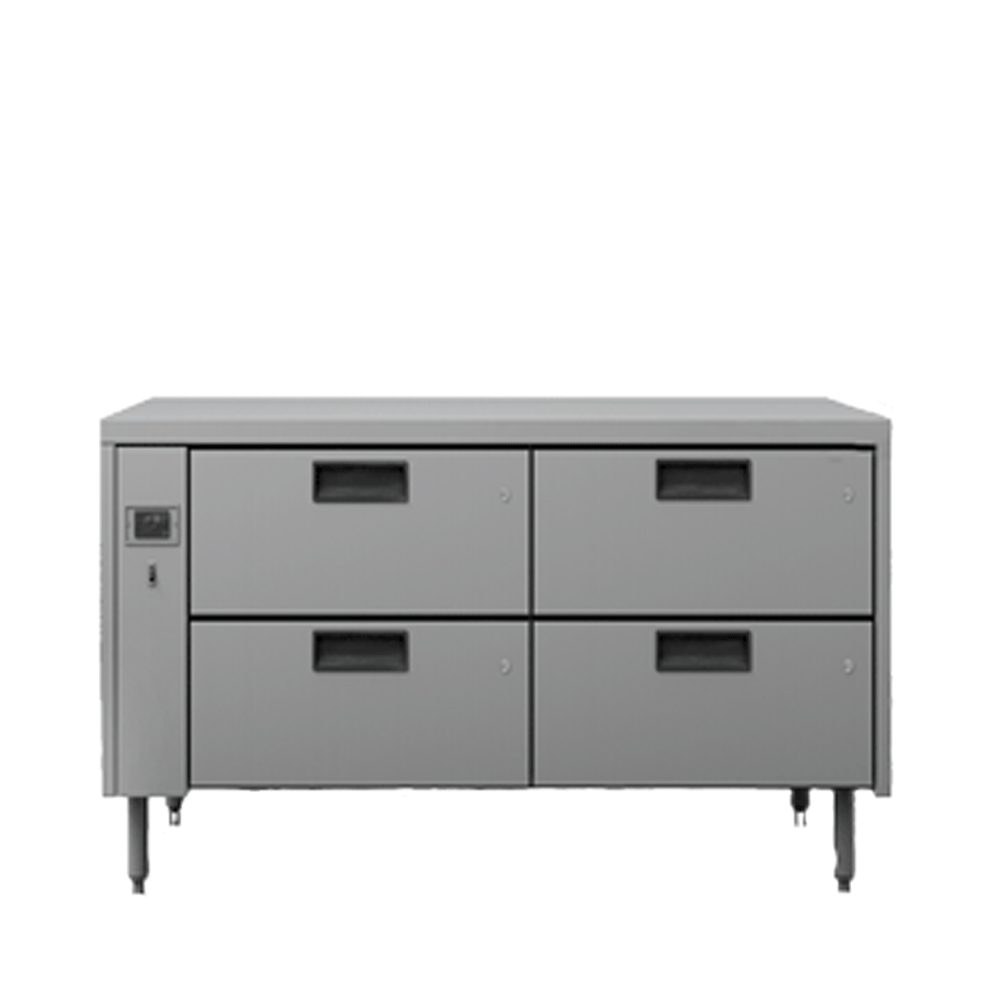

Williams JH4R Jarrah Remote Underbench Fridge

The Williams JH4R Jarrah is a low-profile, underbench remote refrigeration counter designed to fit beneath chargrills and griddles in busy commercial kitchens. Built in Australia from 304 stainless steel, it operates in tropical ambient conditions up to 43°C and uses R448a refrigerant with a remote compressor arrangement, keeping heat and noise out of the kitchen line.

Cooling is delivered via a forced-air fan-assisted system with automatic defrost and a CoolSmart electronic thermostat with digital LED display, maintaining a consistent +1°C to +4°C product temperature. The JH4R accommodates 1/1 x 150 mm deep GN pans (included), making it a practical cold-storage solution directly on the service line.

Key Benefits

• Low-profile worktop height keeps cold storage right on the cooking line without obstructing chargrills or griddles mounted above
• Remote compressor removes heat and operational noise from the kitchen, improving the working environment
• Tropical Climate Class 4 rating means reliable performance in high-ambient environments up to 43°C
• GN pans included out of the box so the unit is ready for service immediately upon installation
• Fan-assisted forced-air cooling ensures even temperature distribution across stored product during busy service periods
• Supplied on castors for easy repositioning, with legs also included for a fixed installation option
• CoolSmart electronic thermostat with digital LED display gives precise, at-a-glance temperature management
• Automatic defrost reduces maintenance demands and keeps the unit running efficiently without staff intervention
• Low energy consumption of 1.69 kWh per 24 hours helps manage operating costs in high-use kitchen environments

Key Features

• Remote refrigeration system with compressor located away from the cabinet to reduce in-kitchen heat load
• Fitted with evaporator, TX valve, controller, fitted plug and condensate drain
• CoolSmart adjustable electronic controller with digital LED temperature display
• Forced-air (fan-assisted) refrigeration system for even cooling
• Accommodates 1/1 x 150 mm deep GN pans; pans are included with the unit
• 304 stainless steel construction throughout
• FC sheet incorporated into the top surface
• Coved internal floor for easier cleaning and hygiene
• Heavy-duty drawer runners with reinforced nylon and stainless steel bushes
• Single solid door with 2 interior shelves
• Supplied on castors for mobility; legs also supplied with the cabinet
• Bottom or rear exiting refrigerant pipes available as standard on JH models
• Automatic defrost system
• Climate Class 4 rated for tropical ambient environments up to 43°C
• R448a refrigerant
• Temperature range: +1°C to +4°C
• LED interior lighting
• 10A, 240V single-phase power supply
• Energy consumption: 1.69 kWh/24h
• Australian-made product
• 12-month parts-only warranty (remote)

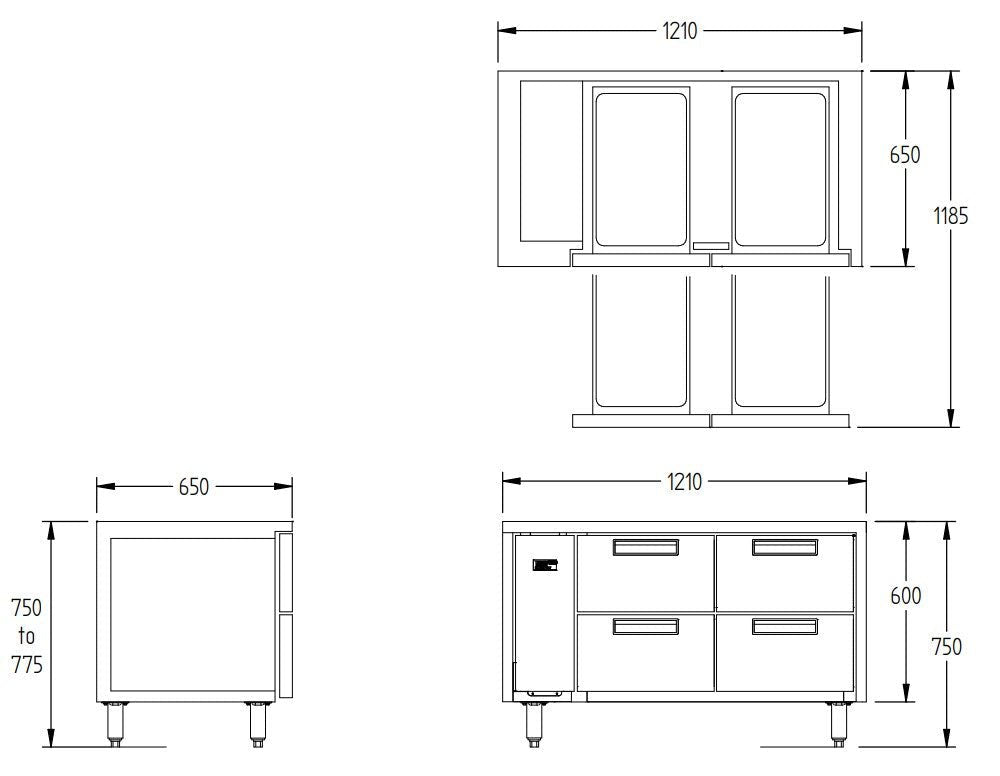

Specifications

• Width (mm): 1210
• Depth (mm): 650
• Height (mm): 750
• Weight (kg): 85
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 4
• Amps (A): 10
• Voltage (V): 240V single phase
• Power Rating: 10 amp
• Warranty (months): 12 months parts only (remote)
• Country of Origin: Australia
• Energy Consumption (kWh/24h): 1.69
• Refrigerant: R448a
• Compressor Location: Remote
• Temperature Range: +1°C to +4°C
• Refrigeration Type: Prep Counter Fridge
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Material: 304 Stainless Steel
• Door Type: Solid
• No. of Shelves: 2
• No. of Doors: 1
• Temperature Control: CoolSmart Electronic Thermostat
• Interior Lighting: LED
• Display Type: Digital LED
