Overview

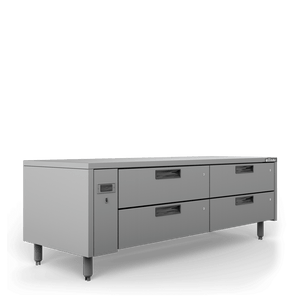

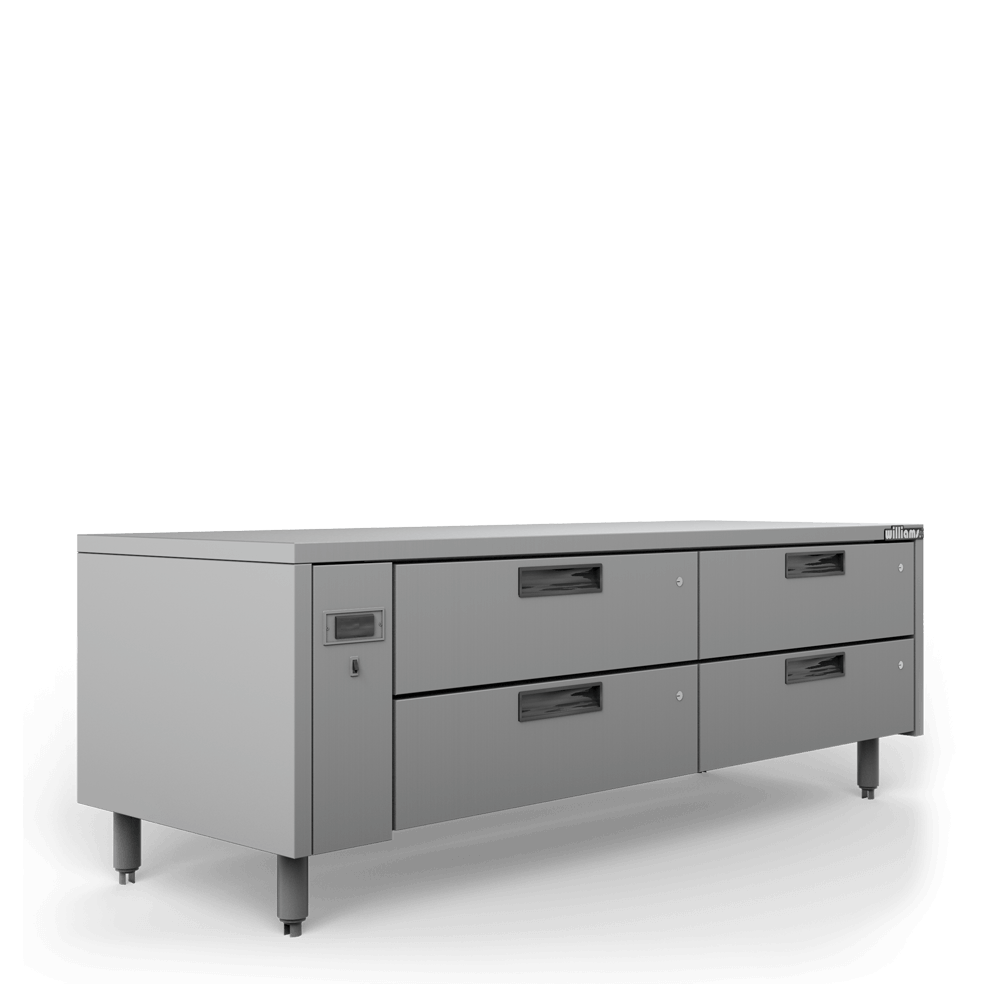

Williams JL4R Jarrah Remote Underbench Fridge – 4 Drawer Lowline Refrigerated Counter

The Williams JL4R Jarrah is a low-profile, remote-refrigerated underbench counter designed specifically to fit beneath chargrills and griddles on the cooking line, making it an ideal space-saving cold-storage solution for high-volume commercial kitchens. Built in Australia from 304 stainless steel, it operates on R448a refrigerant with a remote compressor configuration and maintains a precise +1°C to +4°C temperature range, even in tropical ambient conditions up to 43°C (Climate Class 4).

The JL4R features four heavy-duty drawers with reinforced nylon and stainless bushes, and accommodates two 1/1 GN pans at 100 mm depth (pans included), with the option to use a single 2/1 x 100 mm deep GN pan (not supplied). A CoolSmart electronic thermostat with digital LED display gives operators precise temperature control, while forced-air fan-assisted cooling and automatic defrost ensure consistent performance throughout service. The unit ships on castors for easy mobility, with legs also supplied.

Key Benefits

• Low-profile worktop height allows the unit to sit directly beneath chargrills and griddles, keeping refrigerated ingredients within arm's reach on the cooking line without consuming additional floor space.
• Remote compressor location eliminates heat and noise from the kitchen floor level, improving the working environment and reducing the cooling load in hot kitchens.
• Climate Class 4 rating (designed for up to 43°C ambient) means reliable performance even in the most demanding tropical or poorly ventilated kitchen environments.
• Forced-air fan-assisted refrigeration delivers even, consistent cooling throughout all four drawers during busy service periods.
• Heavy-duty drawer runners with reinforced nylon and stainless bushes withstand the constant opening and closing demands of a fast-paced commercial kitchen.
• GN pans included at purchase so the unit is ready for immediate use straight from delivery, reducing setup time.
• Mounted on castors for easy repositioning or cleaning access, with legs supplied for a fixed installation when preferred.
• Automatic defrost and CoolSmart electronic thermostat with digital LED display simplify day-to-day operation and reduce the need for manual intervention.
• Low energy consumption of 1.69 kWh per 24 hours helps keep running costs manageable across continuous operation.

Key Features

• Remote refrigeration configuration with evaporator, TX valve, controller, fitted plug and condensate drain all supplied with the cabinet.
• Four heavy-duty drawers with reinforced nylon and stainless steel bushes for durability under heavy daily use.
• Accommodates 2 x 1/1 GN pans at 100 mm depth (pans included); a single 2/1 x 100 mm deep GN pan can also be used (not supplied).
• CoolSmart adjustable electronic thermostat with digital LED temperature display for precise, easy-to-read control.
• Forced-air (fan-assisted) refrigeration system for uniform temperature distribution.
• Automatic defrost for hands-free maintenance.
• Temperature range: +1°C to +4°C.
• Climate Class 4 – designed and rated for ambient environments up to 43°C.
• Refrigerant: R448a.
• FC (fibreglass composite) sheet incorporated into the top panel.
• Coved internal floor for easier cleaning and hygiene compliance.
• 304 stainless steel construction throughout.
• LED interior lighting.
• Supplied on castors for mobility; legs also included for fixed installation.
• Optional rear-exiting pipe configuration available for JL models – must be specified at time of order.
• 2 shelves, 1 door equivalent configuration across 4 drawers.

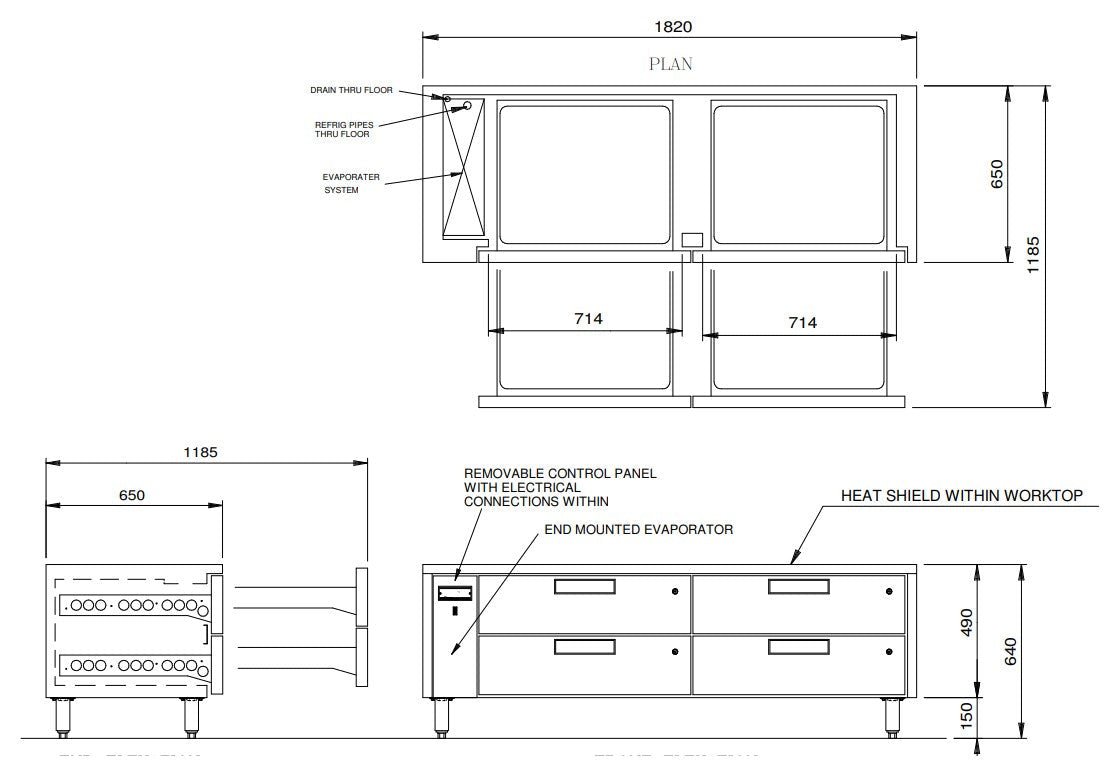

• Dimensions: 1820 mm (W) x 650 mm (D) x 640 mm (H); weight 85 kg.
• 240V single phase, 10A power supply.
• Energy consumption: 1.69 kWh/24h.
• 12-month parts-only warranty (remote).
• Country of origin: Australia.

Specifications

• Width (mm): 1820
• Depth (mm): 650
• Height (mm): 640
• Weight (kg): 85
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 8
• Amps (A): 10
• Voltage (V): 240V single phase
• Power Rating: 10 amp
• Warranty (months): 12 months parts only (remote)
• Country of Origin: Australia
• Energy Consumption (kWh/24h): 1.69
• Refrigerant: R448a
• Compressor Location: Remote
• Temperature Range: +1°C to +4°C
• Refrigeration Type: Prep Counter Fridge
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Material: 304 Stainless Steel
• Door Type: Solid
• No. of Shelves: 2
• No. of Doors: 1
• Temperature Control: CoolSmart Electronic Thermostat
• Interior Lighting: LED
• Display Type: Digital LED
