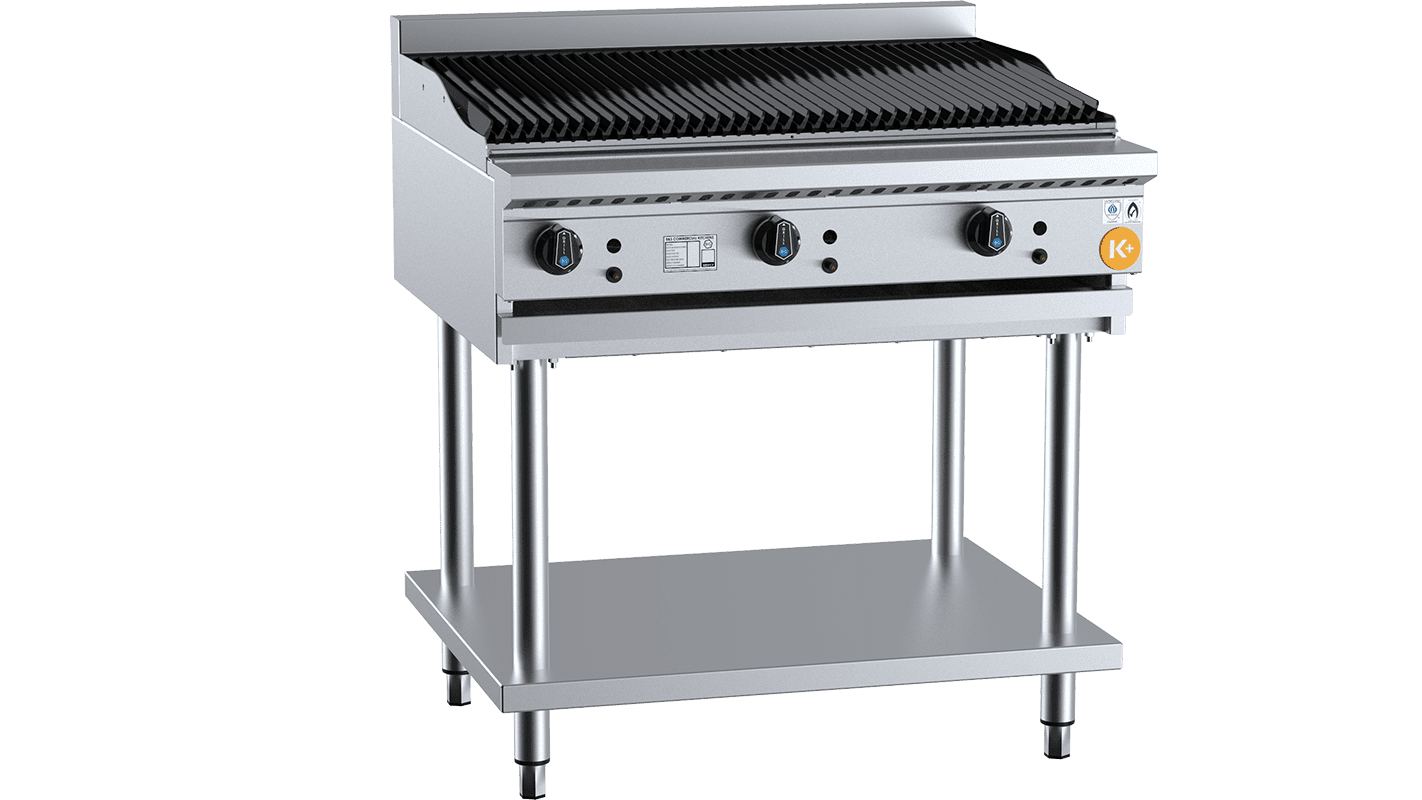

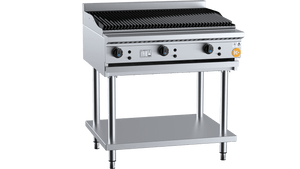

B&S K+ 900mm Char Broiler On Stand KCBR-9

The B&S K+ 900mm Char Broiler on Stand (KCBR-9) is a heavy-duty commercial gas chargrill built for high-volume cooking in restaurants, cafes, hotels and catering operations. Manufactured in Italy from AISI 304 stainless steel with vitreous enamel components, it delivers up to 102 MJ/h on natural gas across 3 burners, producing the authentic chargrilled results professional kitchens demand.

Supplied as a complete freestanding unit on an open stand with undershelf, the KCBR-9 includes heavy-duty cast iron J-grates, volcanic rocks, radiant hoods, a fat spillage tray, piezo ignition with flame failure device, and a multi-setting gas valve for precise flame regulation. A regulator is included, and all components are front-accessible to simplify servicing and day-to-day maintenance.

Key Benefits

• Cast iron J-grates retain and radiate intense, even heat for authentic chargrilled flavour and consistent searing across the full 900mm cooking surface.
• Volcanic rocks and radiant hoods distribute heat uniformly, reducing hot spots and improving cooking quality during busy service periods.
• Multi-setting gas valve allows precise flame regulation across all 3 burners, giving chefs greater control over cooking zones and temperatures.
• Piezo ignition with flame failure device provides quick, reliable lighting and an added layer of safety during daily operation.
• Front access to all internal components makes routine servicing, inspection and maintenance fast and straightforward, minimising kitchen downtime.
• Easy-clean fat spillage tray captures drippings efficiently, keeping the unit hygienic and reducing cleaning time between services.
• Open stand with undershelf maximises the utility of the footprint, providing convenient storage space for utensils or cookware directly beneath the unit.
• Compatible with both natural gas and LPG, allowing flexible installation across a variety of commercial kitchen sites.
• Backed by an 18-month parts and labour warranty, reflecting the build quality and long-term reliability expected from Italian commercial catering equipment.

Key Features

• Heavy-duty cast iron J-grates cooking surface for authentic chargrilled results
• Volcanic rocks included for enhanced radiant heat distribution
• Radiant hoods (CBR configuration) for uniform heat coverage
• 3 gas burners delivering up to 102 MJ/h on natural gas and 90 MJ/h on LPG
• Piezo ignition for fast, reliable start-up
• Flame failure device for operator safety
• Multi-setting gas valve as standard for greater precision in flame regulation
• Easy-clean fat spillage tray
• Open stand with undershelf for additional storage
• Front access to all components for ease of service and maintenance
• Regulator included with unit
• AISI 304 stainless steel frame and construction
• Vitreous enamel components
• 3/4" BSP gas connection
• Freestanding unit on integrated stand
• Made in Italy
• 18-month warranty (parts and labour)
• Must be installed by an authorised installer

Specifications

• Width (mm): 900
• Depth (mm): 840
• Height (mm): 1030
• Weight (kg): 100
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Gas Input - Natural Gas (MJ/h): 102
• Gas Input - LPG (MJ/h): 90
• Burner Output (MJ/h): 78
• Shipping Weight: 55
• Packed Width (mm): 890.0
• Packed Height (mm): 1180.0
• Packed Depth (mm): 350.0
• Material: 304 Stainless Steel / Vitreous Enamel
• Country of Origin: Italy
• Warranty (months): 18 months (Parts and Labour)
• Number of Burners: 3
• Griddle Surface: Cast Iron J-Grates
• Fuel Type: Gas
• Cooking Surface Area (mm): 900 x 533
• Temperature Control: Multi-setting Gas Valve
• Installation Type: Freestanding
• Mounting Type: Freestanding
• Power Rating: 78 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Temperature Range: N/A (Open flame)
