Overview

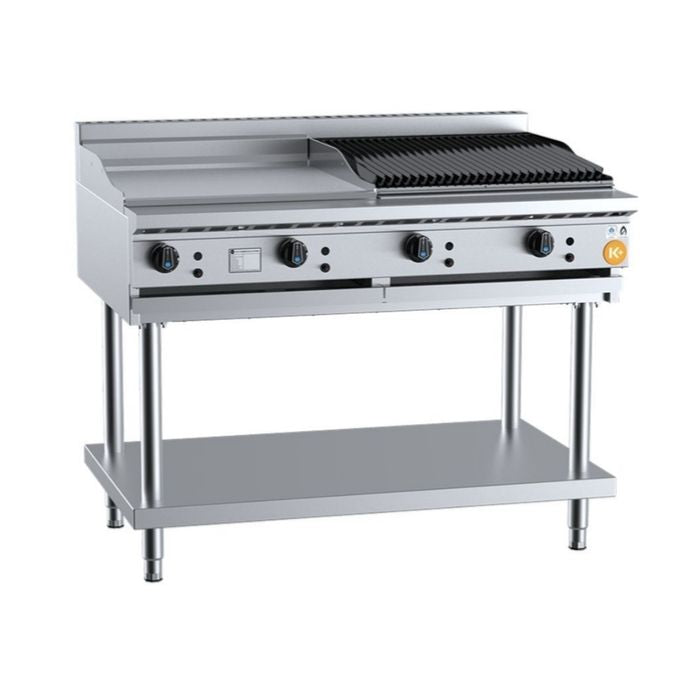

B&S K+ Combination 600mm Grill Plate & 600mm Char Broiler On Stand KBT-GRP6-CBR6

The B&S K+ Combination KBT-GRP6-CBR6 brings together a 600mm grill plate and a 600mm char broiler in a single 1200mm wide freestanding unit, giving busy commercial kitchens two high-output cooking surfaces without doubling the footprint. Built from AISI 304 grade stainless steel with a heavy-duty complete stainless steel frame and undershelf, this Italian-made unit delivers up to 112 MJ/h on natural gas (104 MJ/h on LPG) and is engineered to perform consistently through the most demanding service periods in restaurants, cafes, hotels and catering operations.

The grill plate section features a 16mm thick heavy-duty mild steel plate with a top-welded smooth finish, powered by 22 MJ aluminised tube burners per 300mm section. The char broiler section uses 34 MJ stainless steel U-burners per 300mm section, paired with heavy-duty cast iron J-grates and radiant hoods that can be reversed to provide either an inclined or flat cooking surface. Both sections include piezo ignition, multi-setting gas valves for precise flame regulation, and a flame failure device as standard, while easy-access fat spillage trays and a rear splashback heat deflector simplify day-to-day cleaning and maintenance.

Key Benefits

• Two cooking methods in one unit saves valuable kitchen floor space without sacrificing output capacity.
• Reversible cast iron J-grates on the char broiler allow staff to switch between inclined and flat cooking surfaces to suit different menu items.
• Flame failure device on every burner enhances kitchen safety and supports compliance with Australian gas installation standards.
• Multi-setting gas valves on both sections give cooks precise control over heat levels across the full cooking surface.
• Piezo ignition on both the grill plate and char broiler burners allows quick, reliable lighting without the need for a separate lighter.
• Easy-access fat spillage trays and a rear splashback heat deflector reduce cleaning time and help maintain a hygienic cooking environment.
• Runs on natural gas or LPG, making it straightforward to install across a wide range of commercial sites.
• AISI 304 stainless steel construction and a heavy-duty frame deliver long-term durability and resistance to the rigours of high-volume kitchen use.
• Backed by an 18-month parts and labour warranty for added peace of mind in a commercial environment.

Key Features

• 1200mm wide freestanding unit combining a 600mm grill plate and a 600mm char broiler on an integrated stand
• AISI 304 grade stainless steel construction throughout, including a heavy-duty complete stainless steel frame with undershelf
• 16mm thick heavy-duty mild steel grill plate with top-welded smooth finish
• 22 MJ aluminised tube burner per 300mm section on the grill plate side
• 34 MJ stainless steel U-burner per 300mm section on the char broiler side
• Heavy-duty cast iron J-grates and radiant hoods on the char broiler section
• Reversible J-grates allow either inclined or flat cooking surface configuration
• Flame failure device included as standard on all burners
• Piezo ignition to both the grill plate pilot and char broiler burners
• Multi-setting gas valve on each section for greater regulation of flame settings
• Easy-access fat spillage trays for straightforward cleaning
• Rear splashback heat deflector included
• Gas regulator included with the unit
• Total gas input: 112 MJ/h natural gas / 104 MJ/h LPG
• 3/4" BSP gas connection
• Compatible with natural gas and LPG
• Must be installed by an authorised installer in accordance with AS/NZS 5601 (current version)
• 18-month warranty covering parts and labour
• Made in Italy
• Dimensions: 1200mm W x 840mm D x 1030mm H
• Weight: 133 kg

Specifications

• Width (mm): 1200
• Depth (mm): 840
• Height (mm): 1030
• Weight (kg): 133
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Gas Input - Natural Gas (MJ/h): 112
• Gas Input - LPG (MJ/h): 104
• Burner Output (MJ/h): 88
• Shipping Weight: 190
• Packed Width (mm): 1200.0
• Packed Height (mm): 1030.0
• Packed Depth (mm): 840.0
• Shipping Cubic: 1.038240000m3
• Material: 304 Stainless Steel / Vitreous Enamel
• Country of Origin: Italy
• Warranty (months): 18 months (Parts and Labour)
• Number of Burners: 4
• Griddle Plate Thickness (mm): 16
• Griddle Surface: Smooth
• Fuel Type: Gas
• Cooking Surface Area (mm): 1200 x 533
• Temperature Control: Multi-setting Gas Valve
• Installation Type: Freestanding
• Mounting Type: Freestanding
• Power Rating: 88 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Temperature Range: 150°C - 300°C
