Overview

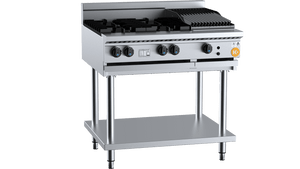

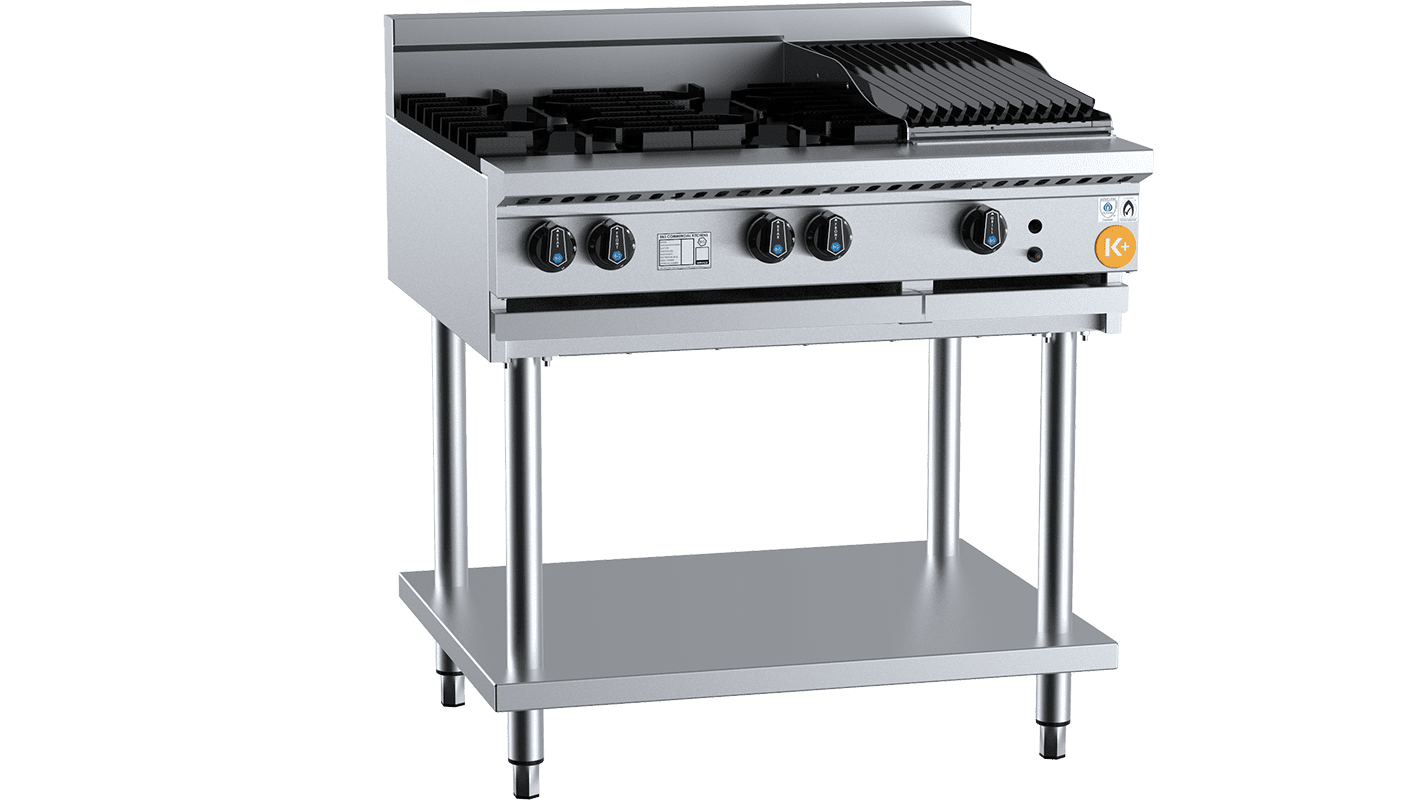

B&S K+ Gas Combination Cooktop with Four Open Burners and 300mm Char Broiler Section on Integrated Stand – KBT-SB4-CBR3

The B&S K+ KBT-SB4-CBR3 is a 900mm wide commercial gas cooktop that brings together a four-burner open cooking zone alongside a 300mm char broiler section, both mounted on an integrated open stand. Built in Italy from AISI 304 stainless steel with vitreous enamel elements, it delivers a total gas input of up to 154 MJ/h on natural gas or 150 MJ/h on LPG, making it a high-output option for restaurants, cafes, hotels and catering operations that require versatile cooking capability within a compact footprint.

Every component is engineered with peak service conditions in mind, prioritising ease of maintenance and consistent operational reliability. The char broiler zone is fitted with heavy-duty cast iron J-grates and radiant hoods, while the cooktop side uses heavy-duty cast iron trivets. Front access to all internal components keeps servicing fast and uncomplicated, and the inclusion of a flame failure device, piezo ignition, a regulator and an easy-clean fat spillage tray further reduces setup time and supports safe, efficient day-to-day operation.

Key Benefits

• Integrates a four-burner cooking zone and a 300mm char broiler into a single 900mm unit, delivering broad cooking versatility without occupying additional floor space.
• Total gas input of up to 154 MJ/h on natural gas or 150 MJ/h on LPG supports rapid heat recovery throughout continuous, high-volume service periods.
• Each 30 MJ/h cooktop burner is supplied in two pieces, allowing straightforward removal and thorough cleaning without the need for tools.
• A multi-setting gas valve on every burner enables precise flame control, accommodating a wide range of cooking techniques from gentle simmering through to high-heat searing.
• The flame failure device automatically shuts off the gas supply whenever a burner flame is extinguished, protecting kitchen staff and satisfying safety compliance requirements.
• The open stand with under shelf keeps cookware and supplies close at hand while preserving good airflow beneath the unit and making floor cleaning straightforward.
• Front access to all internal components reduces equipment downtime during routine maintenance or technician servicing.
• AISI 304 stainless steel construction throughout provides strong corrosion resistance and durability in the demanding conditions of a busy commercial kitchen.
• Regulator included with the unit and compatible with both natural gas and LPG, simplifying on-site installation and commissioning.

Key Features

• Four open burners each rated at 30 MJ/h, with two-piece burner bodies for easy removal and cleaning
• 300mm char broiler section fitted with heavy-duty cast iron J-grates and radiant hoods
• Heavy-duty cast iron trivets on the cooktop section
• Multi-setting gas valve as standard on all burners for greater flame regulation
• Piezo ignition for quick, reliable burner lighting
• Flame failure device for added safety compliance
• Total gas input: 154 MJ/h natural gas / 150 MJ/h LPG
• Compatible with both natural gas and LPG
• 3/4" BSP gas connection
• Regulator included with the unit
• AISI 304 stainless steel frame and body with vitreous enamel elements
• Integrated open stand with under shelf for storage and workflow convenience
• Easy-clean fat spillage tray beneath the cooking surface
• Front access to all internal components for fast, simple servicing
• Freestanding configuration at 900mm wide x 840mm deep x 1030mm high
• Unit weight: 82 kg
• Must be installed by an authorised installer
• Made in Italy
• 18-month warranty (parts and labour)

Specifications

• Width (mm): 900
• Depth (mm): 840
• Height (mm): 1030
• Weight (kg): 82
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Gas Input - Natural Gas (MJ/h): 154
• Gas Input - LPG (MJ/h): 150
• Burner Output (MJ/h): 132
• Shipping Weight: 150
• Packed Width (mm): 900.0
• Packed Height (mm): 1180.0
• Packed Depth (mm): 650.0
• Shipping Cubic: 0.690300000m3
• Material: 304 Stainless Steel / Vitreous Enamel
• Country of Origin: Italy
• Warranty (months): 18 months (Parts and Labour)
• Number of Burners: 6
• Griddle Surface: Cast Iron Trivets
• Fuel Type: Gas
• Cooking Surface Area (mm): 295 x 550
• Temperature Control: Multi-setting Gas Valve
• Installation Type: Freestanding
• Mounting Type: Freestanding
• Power Rating: 132 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Temperature Range: N/A (Open flame)
