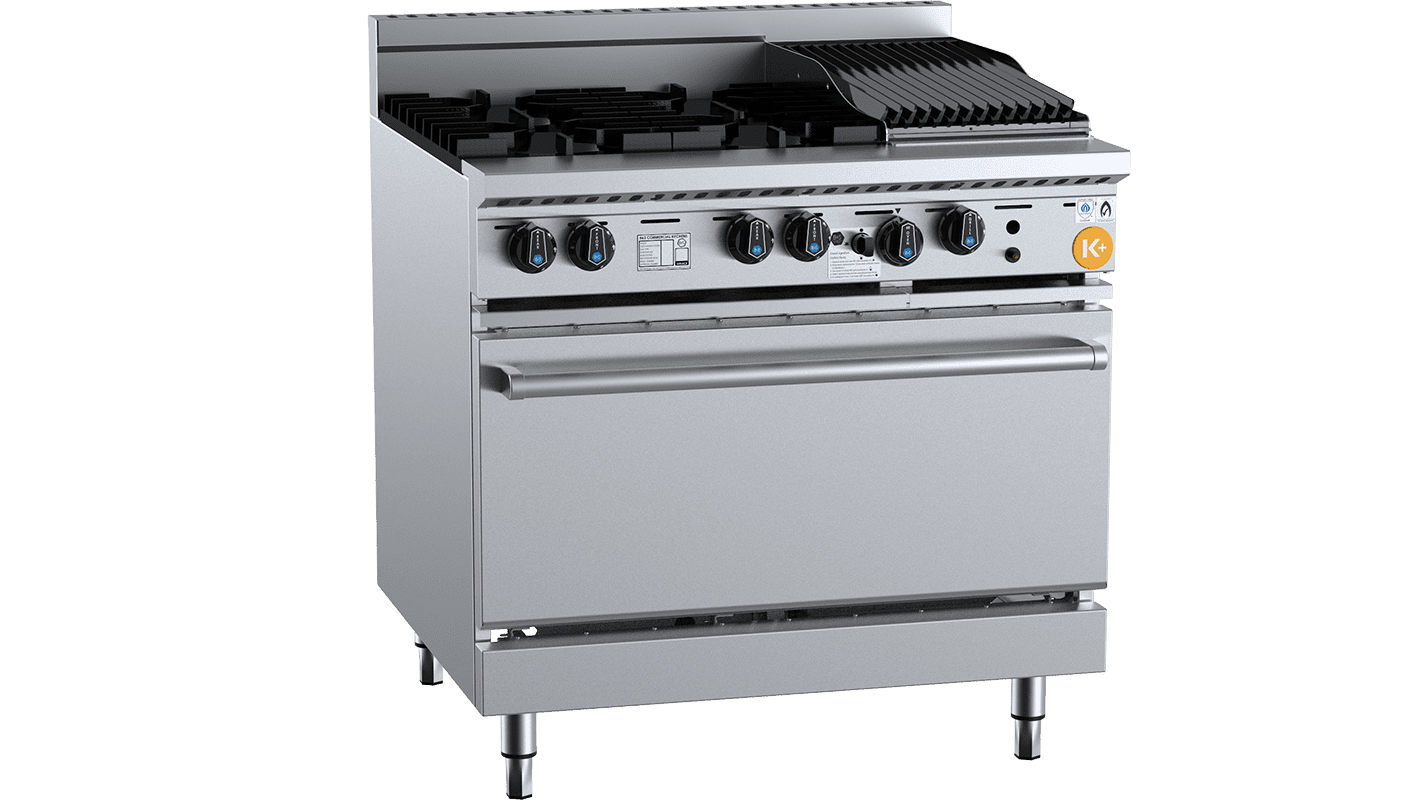

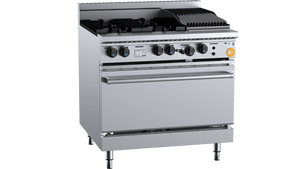

B&S K+ Commercial Gas Range with Four Open Burners, 300mm Char Broiler and Under-Oven KOV-SB4-CBR3

The B&S K+ KOV-SB4-CBR3 is a 900mm wide freestanding commercial gas range that brings together four open burners, a 300mm char broiler section and a full-capacity under-oven within a single unit. Manufactured in Italy from AISI 304 stainless steel with a vitreous enamel oven interior, it is built to meet the sustained demands of restaurants, cafes, hotels and catering operations running consecutive service periods.

Total gas input reaches up to 183 MJ/h on natural gas, with LPG compatibility providing flexibility across varied site configurations. A German-made thermostat, flame failure device and piezo ignition deliver precise temperature control, reliable safety and straightforward lighting across all burners. A gas regulator is supplied with the unit, and installation must be carried out by a licensed authorised installer.

Key Benefits

• Integrates four open burners, a 300mm char broiler and a full under-oven into a single 900mm footprint, maximising cooking versatility without increasing floor space requirements.
• Total heat output of up to 183 MJ/h on natural gas supports high-volume kitchens where sustained performance throughout peak service periods is essential.
• German-made thermostat provides accurate oven temperature regulation, minimising the risk of over or under-cooking during busy service periods.
• Flame failure device automatically cuts gas supply if the flame goes out, adding a critical safety layer in a fast-paced kitchen environment.
• Piezo ignition across all burners allows fast, dependable lighting without requiring a separate ignition source, simplifying the start-of-service routine.
• Multi-setting gas valve on the cooktop burners allows finer regulation of flame intensity, giving chefs greater control across a broader range of cooking techniques.
• All serviceable components are accessible from the front of the unit, minimising downtime and helping to keep routine maintenance costs under control.
• Two-piece cooktop burners and a removable fat spillage tray that pulls out independently of other components make thorough end-of-service cleaning quicker and more straightforward.
• Covered by an 18-month parts and labour warranty, giving operators confidence in the long-term reliability of their investment.

Key Features

• AISI 304 stainless steel cabinet frame with vitreous enamel oven interior, manufactured in Italy
• Four open burners on the cooktop section, each rated at 30 MJ/h and supplied as two-piece units for easier cleaning
• 300mm char broiler section fitted with heavy-duty cast iron J-grates and radiant hoods
• Char broiler burner output: 33 MJ/h
• Oven burner output: 29 MJ/h
• Total gas input up to 183 MJ/h on natural gas; 162 MJ/h on LPG
• German-made thermostat for accurate and consistent oven temperature control
• Piezo ignition across all burners
• Flame failure device as standard for safe operation
• Multi-setting gas valve as standard, allowing greater regulation of flame settings on cooktop burners
• Solid steel base plate in oven for even heat distribution
• Largest Gastronorm capacity in its class
• Oven cavity measures 630mm in length, 785mm in width and 290mm in height (height measured from the lowest rack position to the top panel)
• Heavy-duty fully insulated drop-down oven door
• Heavy-duty cast iron trivets on cooktop surface
• Removable fat spillage tray for straightforward cleaning; all components reachable from the front of the unit for servicing and adjustment
• Gas regulator included
• 3/4" BSP gas connection
• Compatible with natural gas and LPG
• Freestanding on integrated stand
• 18-month parts and labour warranty
• Installation by an authorised installer is required

Specifications

• Width (mm): 900
• Depth (mm): 840
• Height (mm): 1030
• Weight (kg): 180
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Gas Input - Natural Gas (MJ/h): 183
• Gas Input - LPG (MJ/h): 162
• Burner Output (MJ/h): 132
• Shipping Weight: 180
• Packed Width (mm): 1200.0
• Packed Height (mm): 1180.0
• Packed Depth (mm): 650.0
• Shipping Cubic: 0.920400000m3
• Material: 304 Stainless Steel / Vitreous Enamel
• Door Type: Drop-down with Spring Hinge
• No. of Shelves: 1
• Country of Origin: Italy
• Warranty (months): 18 months (Parts and Labour)
• Number of Burners: 6
• Griddle Surface: Cast Iron Trivets
• Fuel Type: Gas
• Cooking Surface Area (mm): 295 x 550
• Temperature Control: German-made Thermostat
• Installation Type: Freestanding
• Mounting Type: Freestanding
• Power Rating: 132 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Temperature Range: N/A (Open flame)
