Overview

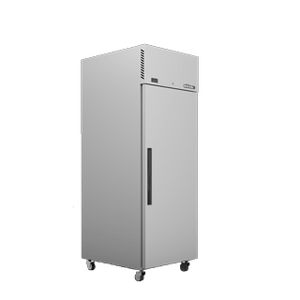

Williams LC1TSS Crystal Bakery 1 Door Stainless Steel Solid Door Upright Freezer

The Williams LC1TSS Crystal Bakery is an Australian-made, purpose-built upright freezer designed specifically for the demands of the bakery industry. Available in single or double door configurations, it is engineered to accommodate 16-inch or 18-inch bakery trays, making it an ideal storage solution for high-volume baking operations. Constructed from 304 stainless steel and rated to a 43°C ambient temperature, it is built to perform reliably in the most demanding commercial environments.

Featuring a CoolSmart electronic thermostat, fan-assisted cooling, and automatic defrost, this cabinet maintains a consistent temperature range of -18°C to -22°C throughout service. The top-mounted self-contained refrigeration system simplifies maintenance and servicing, while the waste heat recovery vaporiser system eliminates the need for an external drain. Supplied with tray slides per door, the LC1TSS is a practical, low-maintenance freezer tailored to bakery workflow.

Key Benefits

• Purpose-built for bakery operations, accepting 16-inch or 18-inch bakery trays to streamline high-volume storage and workflow.
• Rated to 43°C ambient temperature, ensuring reliable performance in hot and demanding kitchen environments.
• CoolSmart electronic controller delivers consistent, even temperatures throughout the cabinet for improved food safety and energy efficiency.
• Top-mounted refrigeration system allows straightforward access for maintenance and servicing, minimising downtime.
• Waste heat recovery vaporiser system removes the requirement for an external drain, simplifying installation and kitchen planning.
• Automatic defrost function reduces manual intervention and keeps the cabinet operating efficiently during busy service periods.
• LED interior lighting and digital LED display provide clear visibility of cabinet contents and temperature at a glance.
• Threaded castors allow simple conversion to legs if required, offering flexibility in kitchen layout and positioning.
• Australian-made construction to international quality standards, backed by a 24-month warranty on the self-contained unit.

Key Features

• Australian-made upright freezer purpose-built for the bakery industry.
• Accommodates 16-inch or 18-inch bakery trays in a single solid stainless steel door configuration.
• Supplied with 20 tray slides per door; available in 18" x 30", 16" x 30", or 400 mm x 600 mm sizes (size must be specified at time of order; trays and shelves not included).
• 75 mm spacing between tray slides for consistent, organised storage.
• Can be fitted with shelf stripping and adjustable shelves.
• CoolSmart electronic thermostat for precise temperature management.
• Temperature range: -18°C to -22°C.
• Fan-assisted cooling for even temperature distribution throughout the cabinet.
• Automatic defrost system.
• Top-mounted self-contained refrigeration system for easy servicing and maintenance.
• Waste heat recovery vaporiser system eliminates the need for an external drain.
• 43°C ambient (tropical) climate class 4 rating.
• 304 stainless steel exterior construction.
• Easy-clean coved internal liner.
• LED interior lighting.
• Digital LED temperature display.
• Refrigerant: R134a.
• 730-litre capacity.
• 4 shelves included.
• Threaded castors with option to change to legs.
• 240V single phase; 10-amp plug / 4.5 amps operating draw.
• Energy consumption: 5.65 kWh/24h.

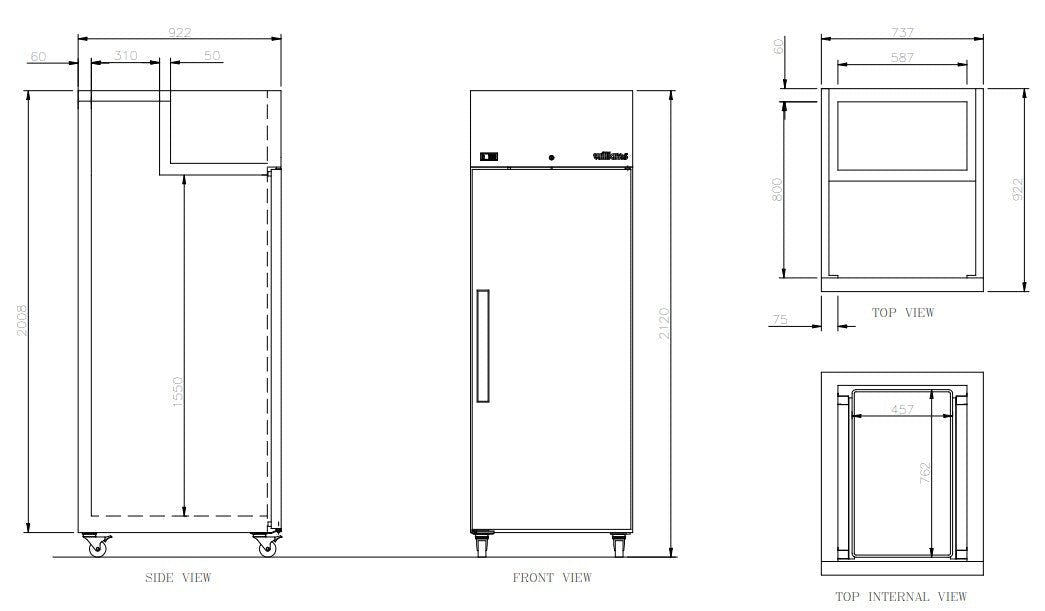

• Dimensions: 737 mm wide x 922 mm deep x 2128 mm high; weight 130 kg.
• 24-month warranty (self-contained unit).
• Designed and manufactured to international quality standards.

Specifications

• Width (mm): 737
• Depth (mm): 922
• Height (mm): 2128
• Weight (kg): 130
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 730
• Amps (A): 10
• Voltage (V): 240V single phase
• Power Rating: 10 amp plug / 4.5 amps
• Warranty (months): 24 months (self-contained)
• Country of Origin: Australia
• Energy Consumption (kWh/24h): 5.65
• Temperature Range: -18/-22°C
• Refrigerant: R134a
• Compressor Location: Self-contained
• Refrigeration Type: Storage Freezer
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Material: 304 Stainless Steel
• Door Type: Solid
• No. of Shelves: 4
• No. of Doors: 1
• Temperature Control: CoolSmart Electronic Thermostat
• Interior Lighting: LED
• Display Type: Digital LED
