Overview

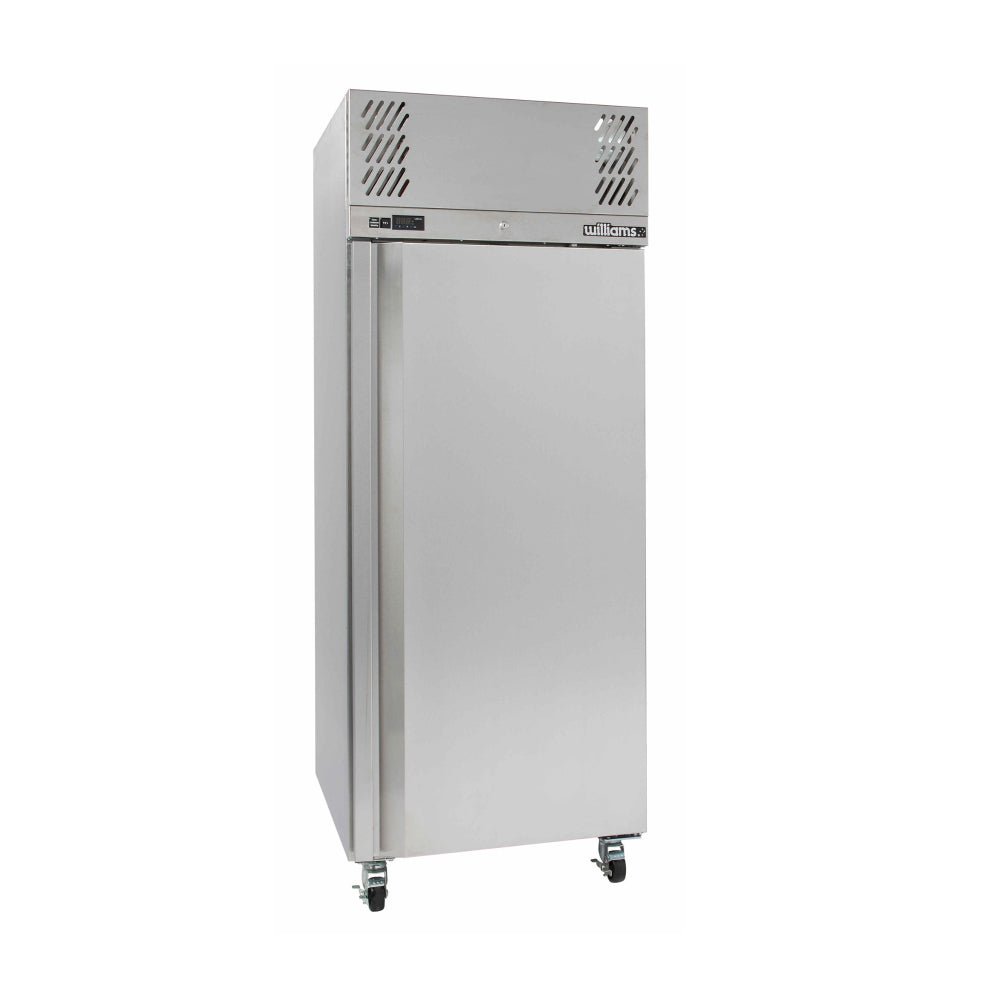

Williams LG1SSHC Garnet 1 Door Stainless Steel Upright Freezer

The Williams LG1SSHC Garnet is a 610-litre single solid door upright storage freezer built for the demands of commercial kitchen environments. Constructed in 304 stainless steel and manufactured in Australia, it uses the natural hydrocarbon refrigerant R290 and features a self-contained, top-mounted compressor. The unit is rated to Climate Class 4, making it suitable for high-ambient tropical environments up to 43°C, and operates on a standard 10-amp single-phase power supply.

Designed around GN 2/1 gastronorm compatibility, the Garnet offers practical, organised frozen storage with four plastic-coated shelves spaced at 75mm intervals. The CoolSmart electronic controller provides precise digital temperature management across a -18°C to -22°C range, while 80mm polyurethane insulation, fan-assisted cooling, and an automatic defrost cycle work together to maintain consistent temperatures and keep running costs low. Heavy-duty swivel castors with brakes allow easy repositioning on the kitchen floor.

Key Benefits

• R290 natural hydrocarbon refrigerant delivers low global warming potential and zero ozone depletion potential, supporting sustainable kitchen operations.
• Climate Class 4 rating ensures reliable performance in high-ambient environments up to 43°C, ideal for tropical and hot commercial kitchens.
• Fan-assisted airflow distributes cooling evenly throughout the cabinet, eliminating warm spots and protecting the quality of frozen stock.
• CoolSmart electronic controller with digital LED display gives kitchen staff straightforward, accurate temperature management during busy service periods.
• 80mm polyurethane insulation provides superior thermal efficiency, helping to reduce energy consumption to just 5.65 kWh per 24 hours.
• Self-closing door with a replaceable magnetic balloon gasket maintains a 100% seal, preventing temperature fluctuations and reducing compressor workload.
• GN 2/1 gastronorm compatibility across four shelves streamlines food storage organisation and speeds up mise en place workflows.
• Heavy-duty non-marking swivel castors with brakes allow the unit to be repositioned easily and locked securely in place, and the height is designed to pass through a standard doorway.
• Australian-made construction with a 24-month warranty on the self-contained refrigeration system provides long-term confidence for commercial buyers.

Key Features

• 610-litre internal capacity with GN 2/1 gastronorm compatibility
• 304 stainless steel exterior finish throughout
• Single solid door configuration
• Self-contained refrigeration with top-mounted compressor
• R290 natural hydrocarbon refrigerant with zero ODP and low GWP
• Temperature range: -18°C to -22°C
• Climate Class 4 rated for operation in ambient temperatures up to 43°C
• CoolSmart electronic thermostat with digital LED display
• Fan-assisted cooling for uniform temperature distribution
• Automatic defrost cycle
• 80mm polyurethane insulation for enhanced thermal efficiency
• Energy consumption: 5.65 kWh per 24 hours
• 4 x plastic-coated shelves sized for GN 2/1 trays
• 75mm spacing between shelf slides
• Self-closing door with replaceable magnetic balloon gasket for a complete seal
• Full-length integral handle, easy to clean
• Interior LED lighting
• Heavy-duty non-marking swivel castors with brakes for mobility and stability

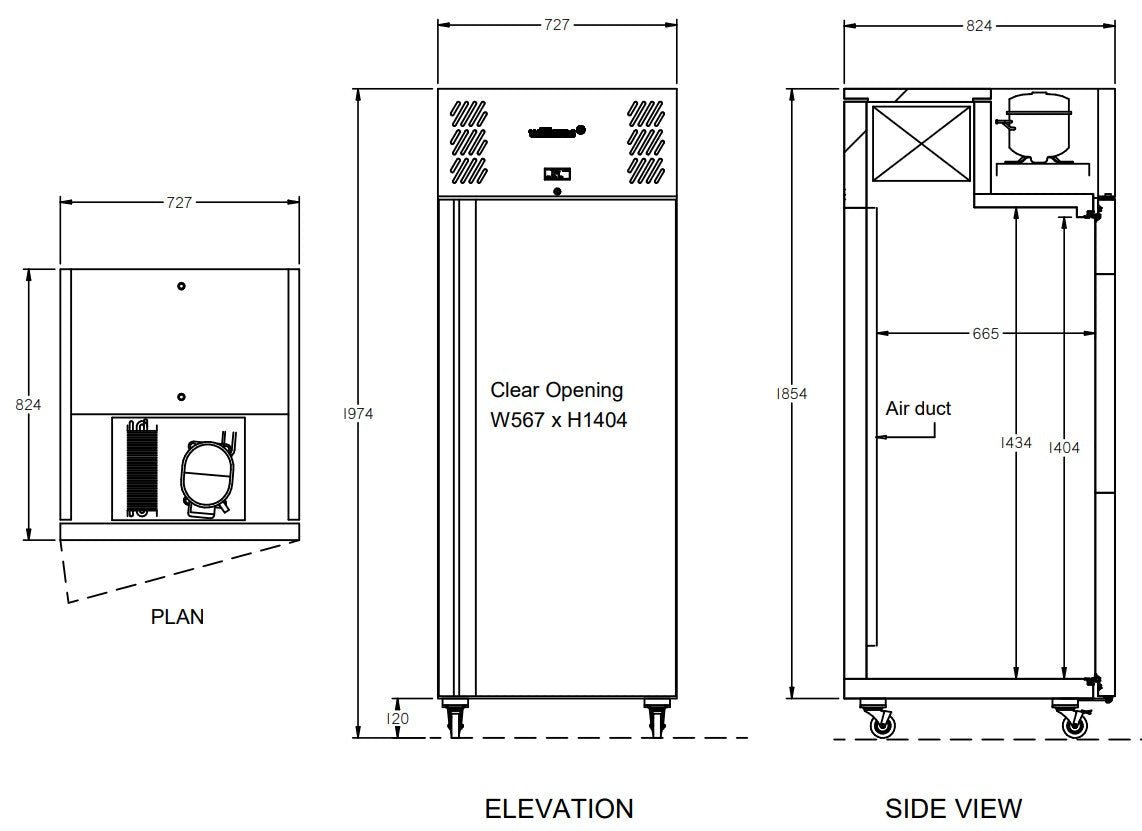

• Dimensions: 727mm wide x 824mm deep x 1974mm high
• Weight: 105 kg
• Power supply: 240V single phase, 10-amp plug (4.3 amps running current)
• Manufactured in Australia
• 24-month warranty (self-contained)

Specifications

• Width (mm): 727
• Depth (mm): 824
• Height (mm): 1974
• Weight (kg): 105
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 610
• Amps (A): 10
• Voltage (V): 240V single phase
• Power Rating: 10 amp plug / 4.3 amps
• Warranty (months): 24 months (self-contained)
• Country of Origin: Australia
• Energy Consumption (kWh/24h): 5.65
• Temperature Range: -18/-22°C
• Refrigerant: R290
• Compressor Location: Self-contained
• Refrigeration Type: Storage Freezer
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Material: 304 Stainless Steel
• Door Type: Solid
• No. of Shelves: 4
• No. of Doors: 1
• Temperature Control: CoolSmart Electronic Thermostat
• Interior Lighting: LED
• Display Type: Digital LED
