Overview

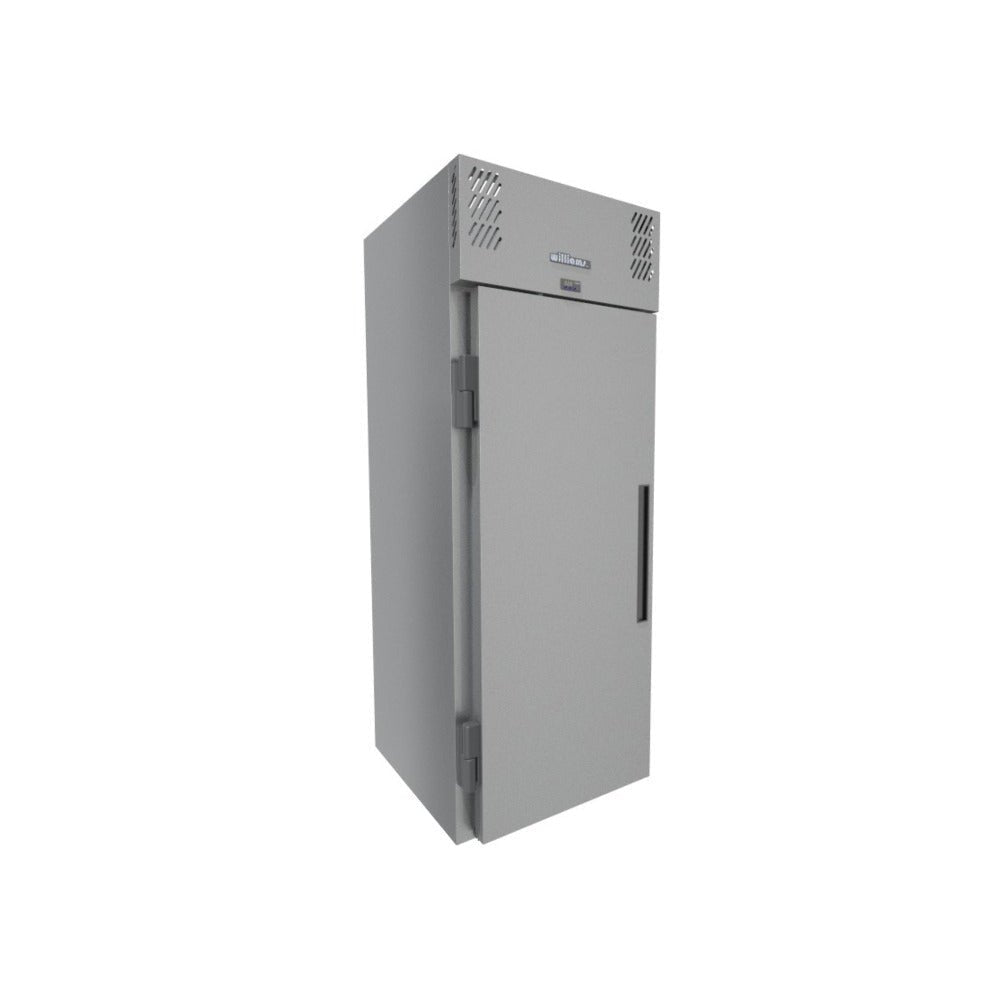

Williams LRG1 Garnet Roll-In 1 Door Freezer

The Williams LRG1 Garnet Roll-In is a single-door commercial freezer built in Australia from 304 stainless steel, designed to accommodate a 1/1 GN trolley for seamless integration into high-volume kitchen workflows. Powered by R290 refrigerant and equipped with a top-mounted self-contained refrigeration system, it maintains temperatures between -18°C and -22°C and operates reliably in ambient conditions up to 43°C, earning a Climate Class 4 (Tropical) rating.

Part of Williams' Garnet Roll-In series, this fixed monoblock cabinet features CoolSmart electronic temperature control, LED interior lighting, and a hydrophilic coated evaporator for enhanced corrosion resistance. The freezer model is supplied with a 90 mm insulated floor, giving an overall height of 2190 mm, and uses automatic defrost to minimise manual maintenance demands during busy service periods.

Key Benefits

• Roll-in trolley compatibility allows entire 1/1 GN loads to be moved in and out quickly, reducing handling time during prep and service.
• Top-mounted refrigeration unit simplifies installation and keeps servicing accessible without disrupting kitchen floor space.
• Climate Class 4 (Tropical) rating ensures consistent performance in ambient temperatures up to 43°C, suitable for hot and humid kitchen environments.
• Automatic defrost eliminates manual defrost cycles, lowering labour requirements and maintaining reliable temperature stability.
• CoolSmart electronic thermostat with digital LED display gives operators precise, at-a-glance temperature monitoring and control.
• Hydrophilic coated evaporator resists corrosion, extending the service life of internal refrigeration components in demanding environments.
• Self-closing solid door with a removable balloon-type magnetic gasket helps maintain consistent cabinet temperatures and makes seal replacement straightforward.
• LED interior lighting improves product visibility while consuming less energy than traditional fluorescent alternatives.
• Manufactured in Australia to a 24-month warranty (self-contained), providing confidence in build quality and local after-sales support.

Key Features

• Single solid self-closing door with removable balloon-type magnetic door gasket
• Designed to accommodate a 1/1 GN trolley (trolley not included)
• Top-mounted self-contained refrigeration system for straightforward installation and servicing
• CoolSmart adjustable electronic controller with digital LED display
• Temperature range: -18°C to -22°C
• Automatic defrost
• R290 refrigerant
• Climate Class 4 (Tropical) - operates in ambient temperatures up to 43°C
• Fan-assisted cooling for even temperature distribution
• Hydrophilic coated evaporator for higher corrosion resistance
• 90 mm insulated floor supplied with freezer model; overall height of freezer model 2190 mm
• LED interior lighting
• 304 stainless steel construction
• Manufactured in Australia
• Energy consumption: 12 kWh/24 h
• 240 V single phase, 10 A power supply
• 24-month warranty (self-contained)

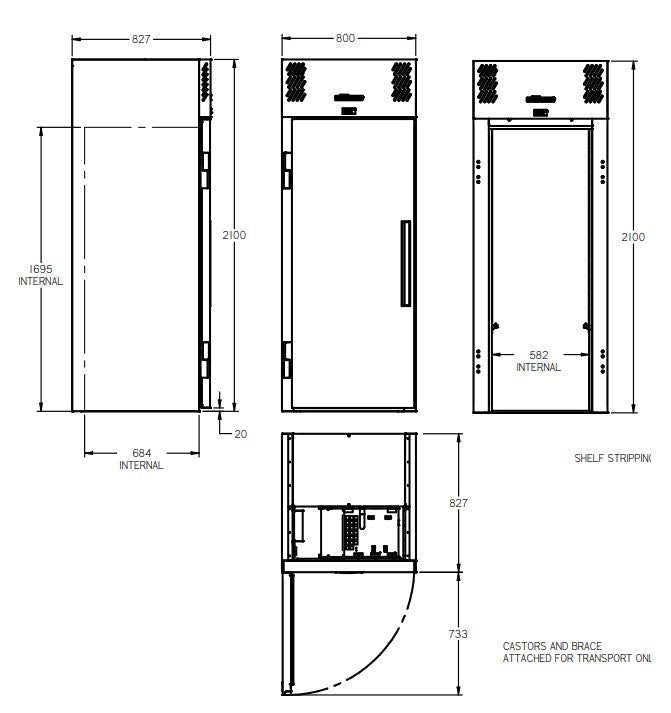

Specifications

• Width (mm): 800
• Depth (mm): 827
• Height (mm): 2100
• Weight (kg): 105
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 1
• Amps (A): 10
• Voltage (V): 240V single phase
• Power Rating: 10 amp
• Warranty (months): 24 months (self-contained)
• Country of Origin: Australia
• Energy Consumption (kWh/24h): 12
• Temperature Range: -18/-22°C
• Refrigerant: R134a
• Compressor Location: Self-contained
• Refrigeration Type: Roll-in Freezer
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Material: 304 Stainless Steel
• Door Type: Solid
• No. of Doors: 1
• Temperature Control: CoolSmart Electronic Thermostat
• Interior Lighting: LED
• Display Type: Digital LED
