Overview

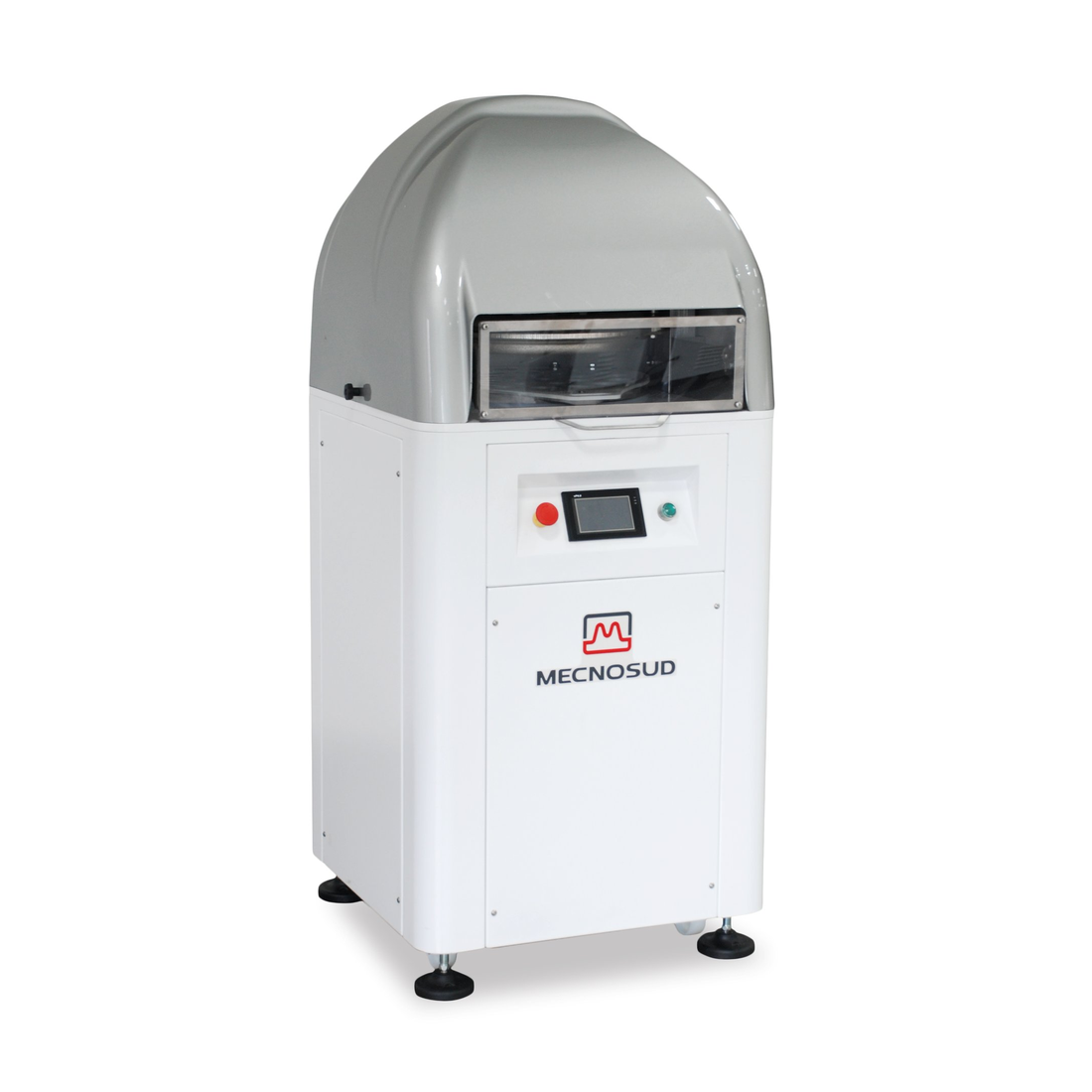

Mecnosud BDM0015A Automatic Bun Divider

The Mecnosud BDM0015A is a commercial-grade automatic bun divider designed for high-volume bakery and foodservice environments. Powered by hydraulic movement and controlled via a PLC programmer, it delivers consistent, repeatable portioning of dough into 15 equal balls per cycle, with the ability to store up to 10 custom work programs for streamlined production across different product runs.

Manufactured in Italy, the BDM0015A handles dough weights ranging from 2.25 kg to 5.25 kg per cycle, accommodating ball sizes between 150 g and 350 g. The 400 mm head diameter, 5.3 kg bowl capacity, stainless steel knives, and included food-grade PETG plates make this machine a practical and hygienic solution for consistent bun and roll production at scale.

Key Benefits

• Hydraulic movement ensures smooth, even dough division with minimal stress on the dough structure, supporting better product quality.
• Divides dough into 15 equal portions per cycle, dramatically increasing throughput compared to manual portioning.
• PLC programmer with up to 10 storable work programs allows operators to switch quickly between different bun sizes and product types.
• Dedicated knife-cleaning button simplifies sanitation between batches, reducing downtime and supporting food safety compliance.
• Adjustable portion size from 150 g to 350 g per ball gives bakeries flexibility across a wide range of bun and roll products.
• Supplied with three food-grade PETG plates, enabling immediate use out of the box across different dough applications.
• Stainless steel knives offer durability and are easy to clean, maintaining hygiene standards in busy commercial kitchens.
• Italian-engineered construction supports reliable long-term performance in demanding bakery production environments.

Key Features

• Automatic operation with hydraulic movement for consistent, gentle dough division
• 15 divisions per cycle for uniform portioning
• Minimum dough load: 15 balls x 150 g (2.25 kg total)
• Maximum dough load: 15 balls x 350 g (5.25 kg total)
• Bowl capacity: 5.3 kg
• Head diameter: 400 mm
• PLC programmer with button-operated knife cleaning function
• Up to 10 programmable work programs for different dough configurations
• Supplied with 3 food-grade PETG plates
• Stainless steel cutting knives
• Three-phase power supply (400 V, 3PH, 0.75 kW)
• Plug not supplied; installation must be carried out by a qualified electrician
• Country of origin: Italy
• Manufacturer code: DR15A

Specifications

• Width (mm): 653
• Depth (mm): 653
• Height (mm): 1465
• Weight (kg): 350
• Packed Width (mm): 700
• Packed Depth (mm): 700
• Packed Height (mm): 1550
• Shipping Cubic: 0.76
• Voltage (V): 400
• Power (kW): 0.75
• Warranty (months): 12 Months Warranty
• Country of Origin: Italy
