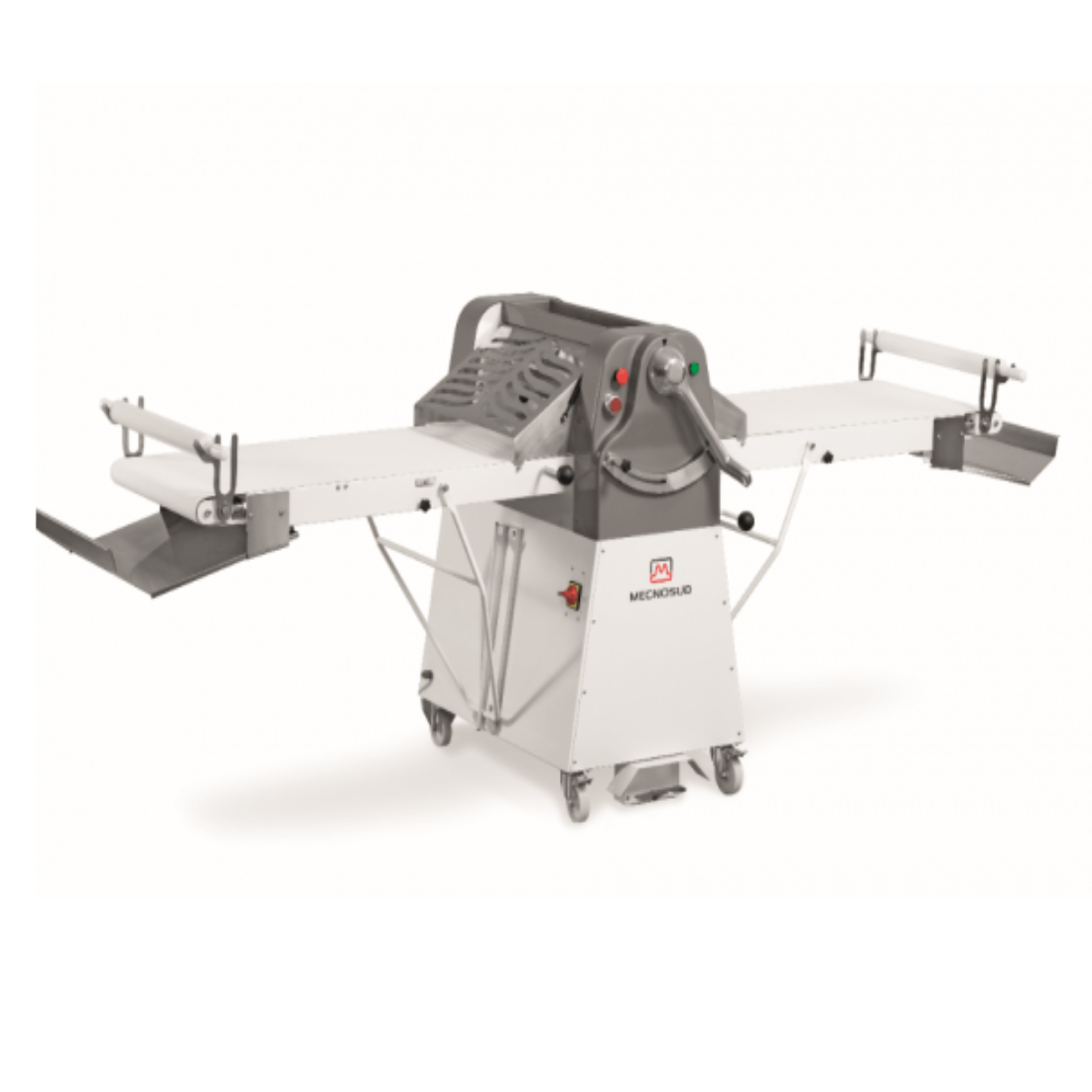

Mecnosud PSM6120 Floor Standing Pastry Sheeter

The Mecnosud PSM6120 is a heavy-duty, floor-standing pastry sheeter built in Italy for high-volume commercial kitchens, bakeries and patisseries. Powered by a three-phase, single-speed 0.75 kW motor, it handles a wide range of dough types including puff pastry, croissants, pasta and general pastry, delivering consistent results across every pass.

At the heart of the machine are 600 mm chromium-plated rollers with an 80 mm diameter, capable of sheeting dough from near-zero up to 50 mm thick. Generous 1316 mm work tables on each side provide ample space for handling large dough pieces, while easily removable scrapers keep cleaning straightforward during and after service. The unit arrives in a crate with arms requiring assembly, and installation must be carried out by a licensed electrician as no plug is supplied.

Key Benefits

• Handles virtually all dough types including puff pastry, croissants, pasta and general pastry, making it a versatile single machine for diverse production needs.
• Adjustable dough thickness from near zero to 50 mm gives operators precise control over finished product consistency.
• Chromium-plated rollers resist corrosion and are easy to wipe clean, reducing downtime between batches.
• Extended 1316 mm work tables on both sides allow large dough sheets to be supported throughout the rolling process, reducing tearing and handling errors.
• Single-speed, three-phase motor delivers reliable, continuous-duty performance suited to high-volume production environments.
• Scrapers are designed for tool-free removal, making thorough cleaning quick and straightforward at the end of service.
• Robust Italian construction and a 260 kg steel frame provide long-term durability in demanding commercial environments.
• Manufactured to a consistent standard under code SF600-120, ensuring parts and service support are clearly identified.

Key Features

• Suitable for rolling puff pastry, croissants, pasta dough and all general pastry types
• Dough thickness adjustment from 0 to 50 mm
• 600 mm roller length with 80 mm roller diameter
• Chromium-plated rollers for durability and hygiene
• Three-phase, single-speed motor rated at 0.75 kW, 400 V
• Inlet belt speed 18.5 m/s; outlet belt speed 28.8 m/s
• Work tables measuring 1316 mm on each side of the machine
• Easy-to-dismantle scrapers for quick cleaning
• Floor-standing design with a total weight of 260 kg
• Overall dimensions: 3290 mm (W) x 1170 mm (D) x 1060 mm (H)
• Supplied in a crate; arms must be lifted and assembled into position on delivery
• Plug not supplied; installation by a licensed electrician is required
• Manufacturer code: SF600-120
• Country of origin: Italy
• 12-month warranty

Specifications

• Width (mm): 3290
• Depth (mm): 1170
• Height (mm): 1060
• Weight (kg): 260
• Packed Width (mm): 1200
• Packed Depth (mm): 1100
• Packed Height (mm): 1800
• Shipping Cubic: 2.376
• Shipping Weight: 260
• Voltage (V): 400
• Power (kW): 0.75
• Warranty (months): 12 Months Warranty
• Country of Origin: Italy
• Mounting Type: Freestanding
