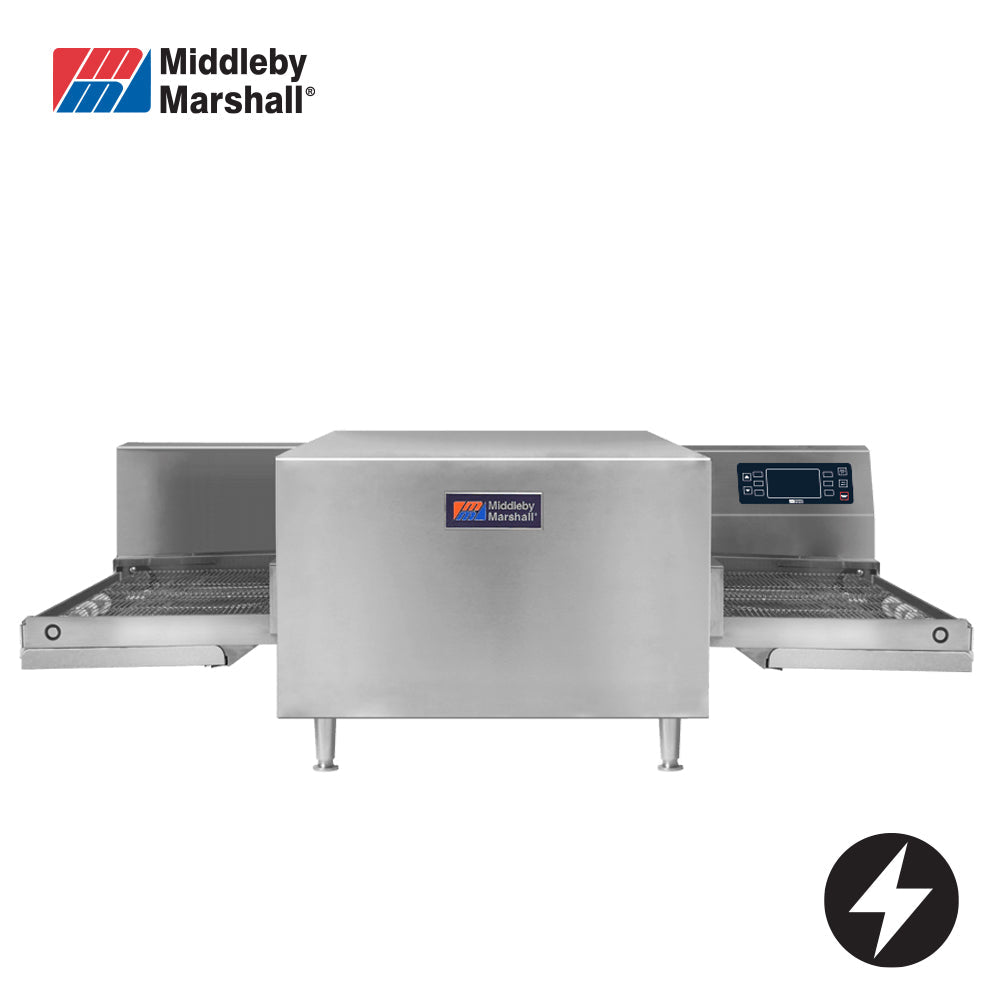

Middleby Marshall PS2020E Electric Countertop Conveyor Oven Click to zoom
PS2020E front manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions. Click to zoom
PS2020E side manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions. Click to zoom
PS2020E top manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions. Click to zoom
Middleby Marshall PS2020E Electric Countertop Conveyor Oven
PS2020E front manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions.
PS2020E side manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions.
PS2020E top manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions.
Middleby Marshall
In Stock
SKU: PS2020E

Middleby Marshall Electric Countertop Conveyor Oven PS2020E

Width 1229.0 mm
Depth 909.0 mm
Height 432.0 mm
Weight 88.5 kg
RRP $25,680.00 SAVE 30%
$17,976.00 ex GST
$19,773.60 inc GST
SilverChef
Rent from $228.16 + GST/week
Apply for finance
Approval in as little as 24 hours
Payment methods
Ask a question
Australia-Wide Delivery
Best Price Guarantee
In Stock – Fast Dispatch
Backed by Warranty & Support
Need advice on this product? Talk to the specialists (02) 8677 0751

Overview

The Middleby Marshall PS2020E is an electric countertop conveyor oven designed for consistent cooking in a compact footprint. Its 508 mm cooking zone and impingement airflow make it suited to kitchens preparing products continuously.

Adjustable conveyor speed gives a bake time of 30 seconds to 15 minutes, with a maximum operating temperature of 288°C. The conveyor direction can be reversed to suit your kitchen layout.

Variable-speed blower motors, built-in diagnostics and an easy-clean mono-finger design support everyday operation. Up to two ovens can be stacked with the appropriate stacking kit, available separately.

Discover more from Middleby Marshall, view similar options in Conveyor Pizza Ovens, or explore all Cooking Equipment.

Key features

Cooking range30 seconds–15 minutes conveyor time; Maximum 288°C (550°F).
Variable-speed airflowRecirculating impingement airflow and variable-speed blower motors allow airflow adjustment.
Reversible conveyor feedSelect left or right conveyor feed direction through the software.
Mono-finger cleaning designThe mono-finger arrangement provides access for cleaning.
Built-in diagnosticsSelf-diagnostics monitor oven components.
Cool-touch panelsThe manufacturer specifies cool-to-touch covers and panels.
Idle modeIdle mode reduces energy use between cooking periods.
Two-high stacking optionUp to two ovens may be stacked with the required stacking kits. Additional ovens and kits are separate.
Optional catalytic converterVentless operation is an optional configuration requiring the catalytic converter and confirmation of local approval.
508 mm cooking zoneA 20-inch heating zone with a 1229 mm long conveyor belt.

Specifications

Dimensions
Width
1229.0 mm
Depth
909.0 mm
Height
432.0 mm
Net weight
88.5 kg
Power & Connections
Power rating
14.4kW|3 phase
Voltage
380/415 V, 3 phase, 50/60 Hz (Australian specification)
Power connection
5-wire (3L + N + G); IEC 5-pin 32 A plug and 32 A breaker, per manufacturer Australian specification.
Compliance & Certifications
Country of origin
USA
Manufacturer warranty
24

Documents & downloads

PS2020E original manufacturer specification sheetDOC-1027, Revision C, February 2022. Includes technical drawings and regional/configuration variations. See product notes.

Delivery & install

Delivery & access

Check doorway widths, the route to the kitchen and unloading access. Contact Atlantic for delivery options and handling arrangements.

Electrical connection

Arrange a 380/415 V, three-phase supply and connection with a qualified electrician, as specified for Australia.

Ventilation & clearance

Confirm the ventilation hood, clearances and local requirements with your installer before installation.

Positioning & installation

Use a level support suitable for the oven's size and weight. Stacking kits and additional ovens are available separately.
