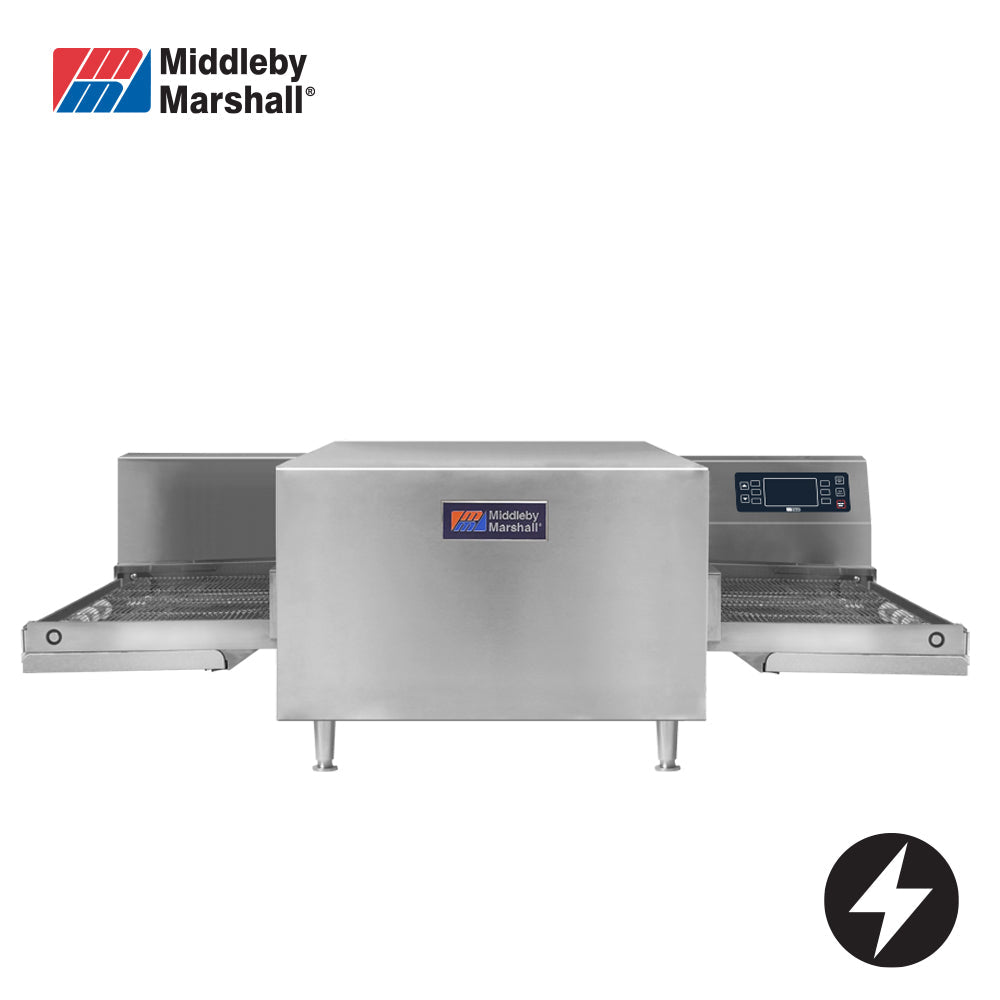

Middleby Marshall PS2620E Electric Countertop Conveyor Oven Click to zoom
PS2620E front manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions. Click to zoom
PS2620E side manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions. Click to zoom
PS2620E top manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions. Click to zoom
Middleby Marshall PS2620E Electric Countertop Conveyor Oven
PS2620E front manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions.
PS2620E side manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions.
PS2620E top manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions.
Middleby Marshall
In Stock
SKU: PS2620E

Middleby Marshall Electric Countertop Conveyor Oven PS2620E

Width 1229.0 mm
Depth 1062.0 mm
Height 432.0 mm
Weight 118.0 kg
RRP $27,995.00 SAVE 30%
$19,596.50 ex GST
$21,556.15 inc GST
SilverChef
Rent from $248.72 + GST/week
Apply for finance
Approval in as little as 24 hours
Payment methods
Ask a question
Australia-Wide Delivery
Best Price Guarantee
In Stock – Fast Dispatch
Backed by Warranty & Support
Need advice on this product? Talk to the specialists (02) 8677 0751

Overview

The Middleby Marshall PS2620E is an electric countertop impingement conveyor oven. It supports continuous conveyor cooking with adjustable bake time. Single oven; confirm supporting equipment with Atlantic.

Technical details

Cooking/heating zone 660 mm (26 in)
Baking area — single unit 0.33 m²
Conveyor bake-time range 30 seconds–15 minutes
Operating temperature Maximum 288°C (550°F)
Australian catalogue dimensions — W × D × H 1229 × 1062 × 432 mm
Australian catalogue power rating 14.4kW|3 phase
Supply configuration Single oven; confirm supporting equipment with Atlantic.

Configuration and installation notes

The manufacturer maximum is 550°F, equivalent to 288°C. Optional ventless equipment is not standard and US listing does not establish Australian ventilation approval. Stacked dimensions in the sheet contain inconsistent inch/mm conversions; obtain a configuration drawing before installation.

PDF reference: 254 mm above; 0 mm sides and rear. Confirm installation requirements for the selected configuration.

Technical drawings in the gallery show manufacturer reference configurations. Optional belts, extra ovens, stacking kits and ventilation equipment are not included unless expressly specified. Confirm Australian warranty terms with Atlantic Equipment; US warranty and commissioning statements in the sheet do not establish local inclusions.

Download the original PS2620E manufacturer specification sheet — DOC-1029, Revision A, February 2022. Dimensions and services must be confirmed for the exact ordered configuration.

See the full Middleby Marshall range, view similar options in Conveyor Pizza Ovens, or browse the wider Cooking Equipment category.

Key features

Cooking range30 seconds–15 minutes conveyor time; Maximum 288°C (550°F).
Variable-speed airflowRecirculating impingement airflow and variable-speed blower motors allow airflow adjustment.
Reversible conveyor feedSelect left or right conveyor feed direction through the software.
Mono-finger cleaning designThe mono-finger arrangement provides access for cleaning.
Built-in diagnosticsSelf-diagnostics monitor oven components.
Cool-touch panelsThe manufacturer specifies cool-to-touch covers and panels.
Idle modeIdle mode reduces energy use between cooking periods.
Two-high stacking optionUp to two ovens may be stacked with the required stacking kits. Additional ovens and kits are separate.
Optional catalytic converterVentless operation is an optional configuration requiring the catalytic converter and confirmation of local approval.
Optional conveyor extensions152 mm (6 in) conveyor extensions are listed as options.

Specifications

Dimensions
Width
1229.0 mm
Depth
1062.0 mm
Height
432.0 mm
Net weight
118.0 kg
Power & Connections
Power rating
14.4kW|3 phase
Compliance & Certifications
Country of origin
USA
Manufacturer warranty
24

Documents & downloads

PS2620E original manufacturer specification sheetDOC-1029, Revision A, February 2022. Includes technical drawings and regional/configuration variations. See product notes.

Delivery & install

Delivery & access

Check doorway widths, the route to the kitchen and unloading access. Contact Atlantic for delivery options and handling arrangements.

Electrical connection

Arrange a suitable electrical supply and connection with a qualified electrician.

Ventilation & clearance

Confirm the ventilation hood, clearances and local requirements with your installer before installation.

Positioning & installation

Use a level support suitable for the oven's size and weight. Stacking kits and additional ovens are available separately.
