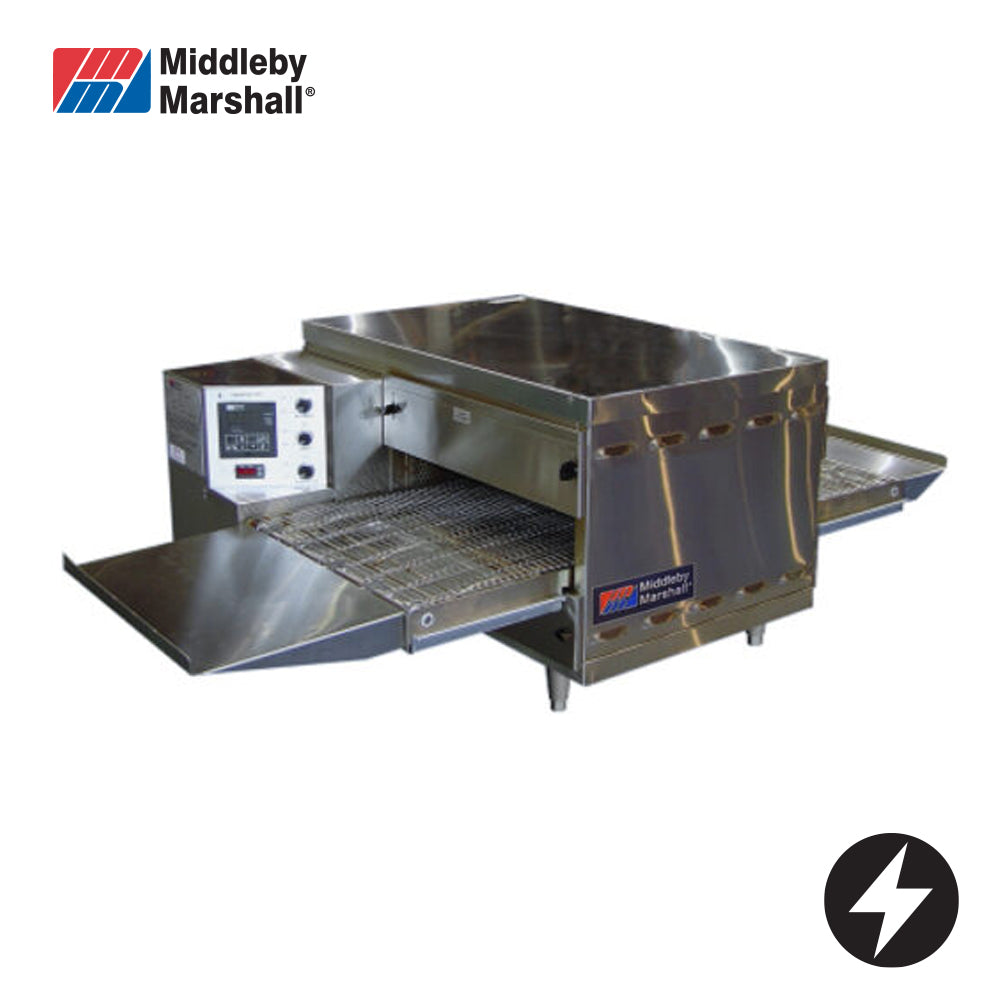

Middleby Marshall PS520E Electric Impingement Conveyor Oven Click to zoom
PS520 front manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions. Click to zoom
PS520 back electric manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions. Click to zoom
PS520 bottom manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions. Click to zoom
Middleby Marshall PS520E Electric Impingement Conveyor Oven
PS520 front manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions.
PS520 back electric manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions.
PS520 bottom manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions.
Middleby Marshall
In Stock
SKU: PS520E

Middleby Marshall Electric Impingement Conveyor Oven PS520E

Width 1367.0 mm
Depth 951.0 mm
Height 536.0 mm
Weight 148.0 kg
RRP $19,995.00 SAVE 30%
$13,996.50 ex GST
$15,396.15 inc GST
SilverChef
Rent from $177.64 + GST/week
Apply for finance
Approval in as little as 24 hours
Payment methods
Ask a question
Australia-Wide Delivery
Best Price Guarantee
In Stock – Fast Dispatch
Backed by Warranty & Support
Need advice on this product? Talk to the specialists (02) 8677 0751

Overview

The Middleby Marshall PS520E is an impingement conveyor oven. It supports continuous conveyor cooking with adjustable bake time. Single oven; confirm supporting equipment with Atlantic.

Technical details

Cooking/heating zone 508 mm (20 in)
Baking area — single unit 0.23 m²
Conveyor bake-time range 30 seconds–12½ minutes
Operating temperature 93–315°C
Australian catalogue dimensions — W × D × H 1367 × 951 × 536 mm
Australian catalogue power rating 240v, 1 phase , 7.8Kw
Supply configuration Single oven; confirm supporting equipment with Atlantic.

Configuration and installation notes

The PDF includes both electric and gas variants and multiple leg arrangements. Its overall length includes the conveyor extension; dimensions in the Australian catalogue may use a different arrangement. Confirm the supplied tray, legs and installed footprint. Electrical and gas tables include overseas variants; select the Australian service requirements for the ordered model.

PDF reference: 0 mm rear, control end and non-control end. A ventilation hood is required.

Technical drawings in the gallery show manufacturer reference configurations. Optional belts, extra ovens, stacking kits and ventilation equipment are not included unless expressly specified. Confirm Australian warranty terms with Atlantic Equipment; US warranty and commissioning statements in the sheet do not establish local inclusions.

Download the original PS520 manufacturer specification sheet — DOC-1017, Revision C, August 2024. Dimensions and services must be confirmed for the exact ordered configuration.

Discover more from Middleby Marshall, compare it with other Conveyor Pizza Ovens, or browse the wider Cooking Equipment category.

Key features

Cooking range30 seconds–12½ minutes conveyor time; 93–315°C.
457 mm conveyor belt18 in wide belt through a 508 mm long cooking chamber.
Microprocessor bake controlsControl bake time through conveyor speed.
Reversible conveyorConveyor travel can be reversed to suit the kitchen workflow.
Three-high stacking optionUp to three ovens can be stacked with the correct supporting equipment; additional ovens are separate.
Stainless steel constructionStainless steel front, sides, top and interior.
Removable cleaning componentsCrumb pans, end panels, air fingers, exit tray and conveyor assembly can be removed for cleaning.
Energy Management SystemThe manufacturer EMS manages heat transfer during operation.
Insulated surfacesTop and front surfaces are insulated.
Ventilation hood requiredInstall beneath a ventilation hood.

Specifications

Dimensions
Width
1367.0 mm
Depth
951.0 mm
Height
536.0 mm
Net weight
148.0 kg
Power & Connections
Power rating
240v, 1 phase , 7.8Kw
Compliance & Certifications
Country of origin
USA
Manufacturer warranty
12

Documents & downloads

PS520 original manufacturer specification sheetDOC-1017, Revision C, August 2024. Includes technical drawings and regional/configuration variations. See product notes.

Delivery & install

Delivery & access

Check doorway widths, the route to the kitchen and unloading access. Contact Atlantic for delivery options and handling arrangements.

Electrical connection

Arrange a suitable electrical supply and connection with a qualified electrician.

Ventilation & clearance

The manufacturer specifies installation under a ventilation hood. Check clearances and local requirements with your installer.

Positioning & installation

Check the oven's positioning, support and commissioning requirements. Ask Atlantic about installation arrangements for your site.
