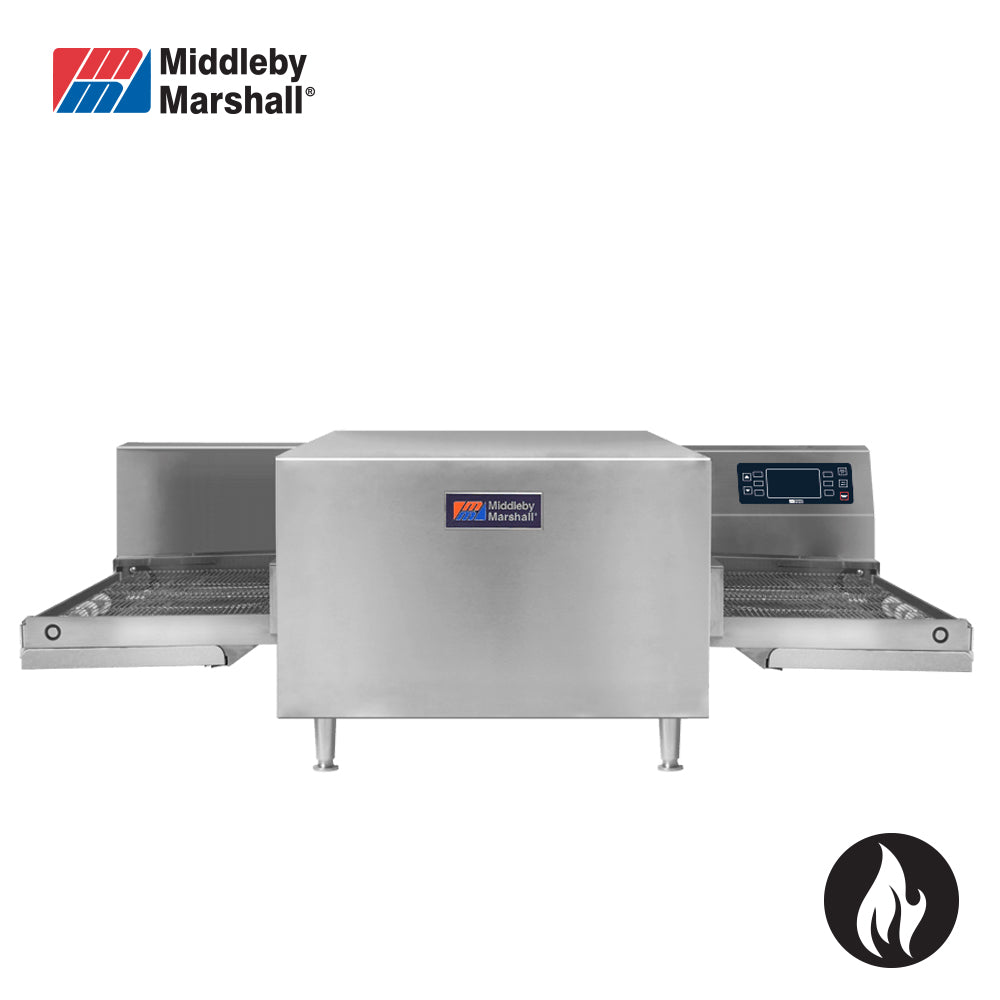

Middleby Marshall PS2020G Gas Countertop Conveyor Oven Click to zoom

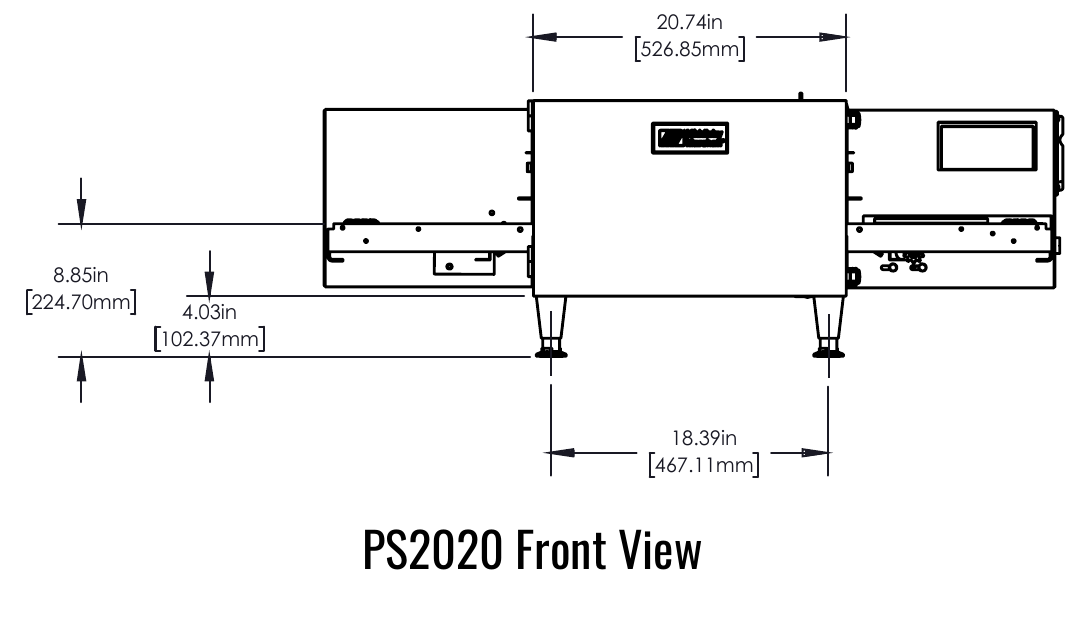

PS2020G front manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions. Click to zoom

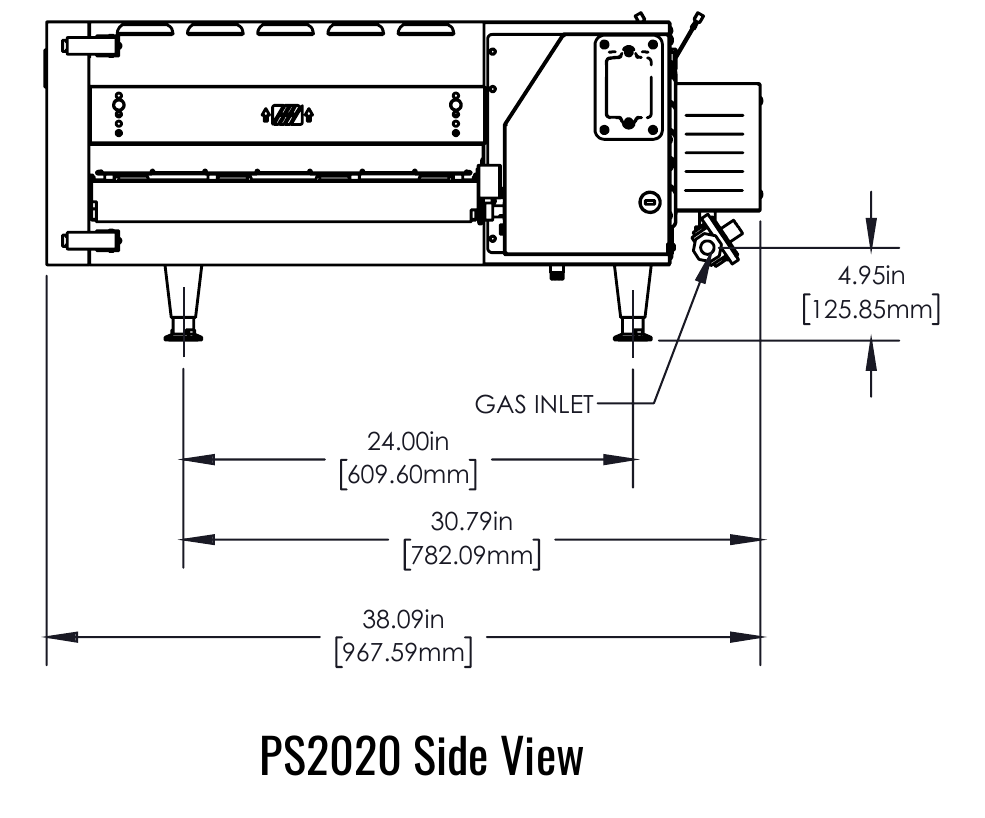

PS2020G side manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions. Click to zoom

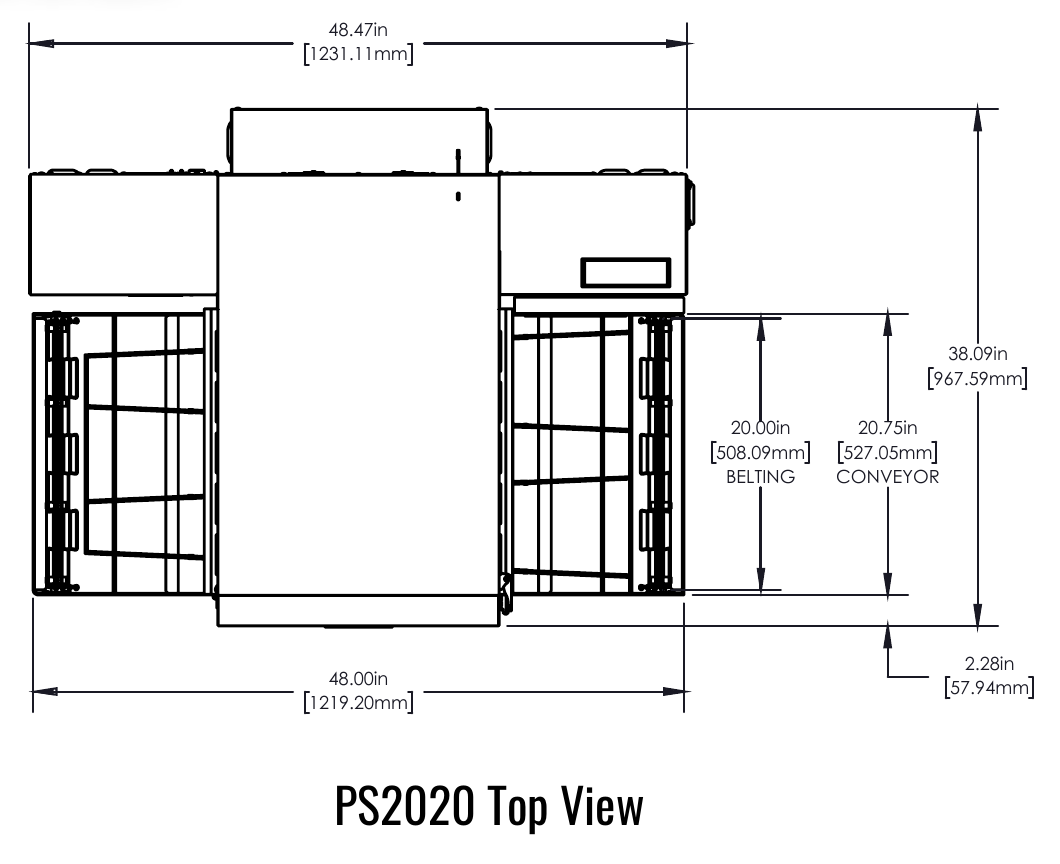

PS2020G top manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions. Click to zoom
Middleby Marshall PS2020G Gas Countertop Conveyor Oven
PS2020G front manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions.
PS2020G side manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions.
PS2020G top manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions.
Middleby Marshall
In Stock
SKU: PS2020G

Middleby Marshall PS2020G Gas Countertop Conveyor Oven

Width 1229.0 mm
Depth 909.0 mm
Height 432.0 mm
RRP $25,680.00 SAVE 30%
$17,976.00 ex GST
$19,773.60 inc GST
SilverChef
Rent from $228.16 + GST/week
Apply for finance
Approval in as little as 24 hours
Payment methods
Ask a question
Australia-Wide Delivery
Best Price Guarantee
In Stock – Fast Dispatch
Backed by Warranty & Support
Need advice on this product? Talk to the specialists (02) 8677 0751

Overview

The Middleby Marshall PS2020G is a gas countertop impingement conveyor oven. It supports continuous conveyor cooking with adjustable bake time. Single oven; confirm supporting equipment with Atlantic.

Technical details

Cooking/heating zone 508 mm (20 in), front-page description
Baking area — single unit 0.26 m²
Conveyor bake-time range 30 seconds–14 minutes
Operating temperature Maximum 316°C (600°F)
Australian catalogue dimensions — W × D × H 1229 × 909 × 432 mm
Australian catalogue power rating Gas | 42 MJ
Supply configuration Single oven; confirm supporting equipment with Atlantic.

Configuration and installation notes

The Australian June 2026 catalogue lists 1229 × 909 × 432 mm; the gas specification sheet lists approximately 1231 × 968 × 432 mm. Confirm the current supplied unit before planning the bench. The electrical table is labelled USA option and export. Its NEMA plug and 20 A circuit reference are not confirmed Australian connection requirements. The sheet lists natural gas and propane variants; confirm the gas type supplied.

PDF reference: 50.8 mm sides; 0 mm rear. Confirm local installation and ventilation requirements.

Technical drawings in the gallery show manufacturer reference configurations. Optional belts, extra ovens, stacking kits and ventilation equipment are not included unless expressly specified. Confirm Australian warranty terms with Atlantic Equipment; US warranty and commissioning statements in the sheet do not establish local inclusions.

Download the original PS2020G manufacturer specification sheet — DOC-1040, Revision G, January 2024. Dimensions and services must be confirmed for the exact ordered configuration.

Key features

Cooking range30 seconds–14 minutes conveyor time; Maximum 316°C (600°F).
Variable-speed airflowRecirculating impingement airflow and variable-speed blower motors allow airflow adjustment.
Reversible conveyor feedSelect left or right conveyor feed direction through the software.
Mono-finger cleaning designThe mono-finger arrangement provides access for cleaning.
Built-in diagnosticsSelf-diagnostics monitor oven components.
Cool-touch panelsThe manufacturer specifies cool-to-touch covers and panels.
Compact gas heating systemGas heat is circulated through an impingement airflow system in a countertop format.
Three-high stacking optionUp to three ovens may be stacked using the required kits; extra ovens and kits are separate.
Optional connectivityIoT capability is listed as available. Confirm the required connectivity equipment and compatibility.
Gas and electrical servicesGas provides the cooking heat; an electrical supply is also required for controls and motors.

Specifications

Dimensions
Width
1229.0 mm
Depth
909.0 mm
Height
432.0 mm
Shipping weight
88.5 kg
Power & Connections
Power rating
Gas | 42 MJ

Documents & downloads

PS2020G original manufacturer specification sheetDOC-1040, Revision G, January 2024. Includes technical drawings and regional/configuration variations. See product notes.

Delivery & install

Delivery & access

Check doorway widths, the route to the kitchen and unloading access. Contact Atlantic for delivery options and handling arrangements.

Gas & electrical

A qualified installer should check the gas type and supply, along with the electrical connection needed to operate the oven.

Ventilation & clearance

Confirm the ventilation hood, clearances and local requirements with your installer before installation.

Positioning & installation

Use a level support suitable for the oven's size and weight. Stacking kits and additional ovens are available separately.
