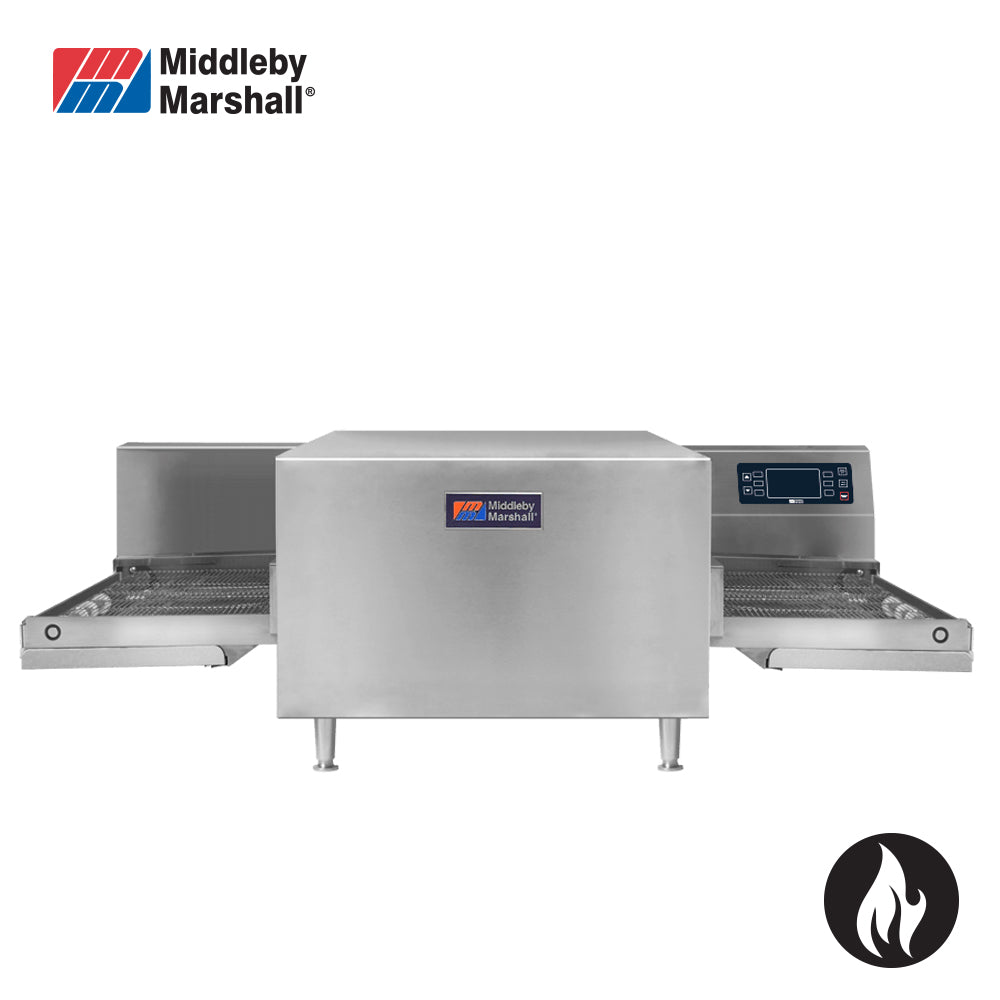

Middleby Marshall PS2620G Gas Countertop Conveyor Oven
Couldn't load pickup availability
Open here
Overview
The Middleby Marshall PS2620G is a gas countertop impingement conveyor oven. It supports continuous conveyor cooking with adjustable bake time. Single oven; confirm supporting equipment with Atlantic.
Technical details
| Cooking/heating zone | 508 mm (20 in), front-page description — see discrepancy below |
|---|---|
| Baking area — single unit | 0.33 m² |
| Conveyor bake-time range | 30 seconds–14 minutes |
| Operating temperature | Maximum 316°C (600°F) |
| Australian catalogue dimensions — W × D × H | 1229 × 1062 × 432 mm |
| Australian catalogue power rating | Gas | 42 MJ |
| Supply configuration | Single oven; confirm supporting equipment with Atlantic. |
| Gas inlet — PDF reference | ½ in NPT; confirm Australian supplied connection |
| Natural gas — export reference | 40,000 BTU/h; inlet 14.9–19.9 mbar; manifold 8.7 mbar |
| Propane — export reference | 40,000 BTU/h; inlet 30.0–34.9 mbar; manifold 24.9 mbar |
| Single-unit weight — PDF reference | 118 kg |
| Optional stacked configurations — PDF reference | Two-high: 787 mm high / 236 kg; three-high: 1143 mm high / 354 kg. Additional ovens and kits are separate. |
Configuration and installation notes
The Australian June 2026 catalogue lists 1229 × 1062 × 432 mm; the gas specification sheet lists approximately 1231 × 1120 × 432 mm. Its front page calls the cooking chamber 20 in (508 mm), while its dimensions table labels the heating zone 26 in (660 mm). These dimensions require supplier confirmation before bench or ventilation design. The electrical table is labelled USA option and export. Its NEMA plug and 20 A circuit reference are not confirmed Australian connection requirements. The sheet lists natural gas and propane variants; confirm the gas type supplied.
PDF reference: 50.8 mm sides; 0 mm rear. Confirm local installation and ventilation requirements.

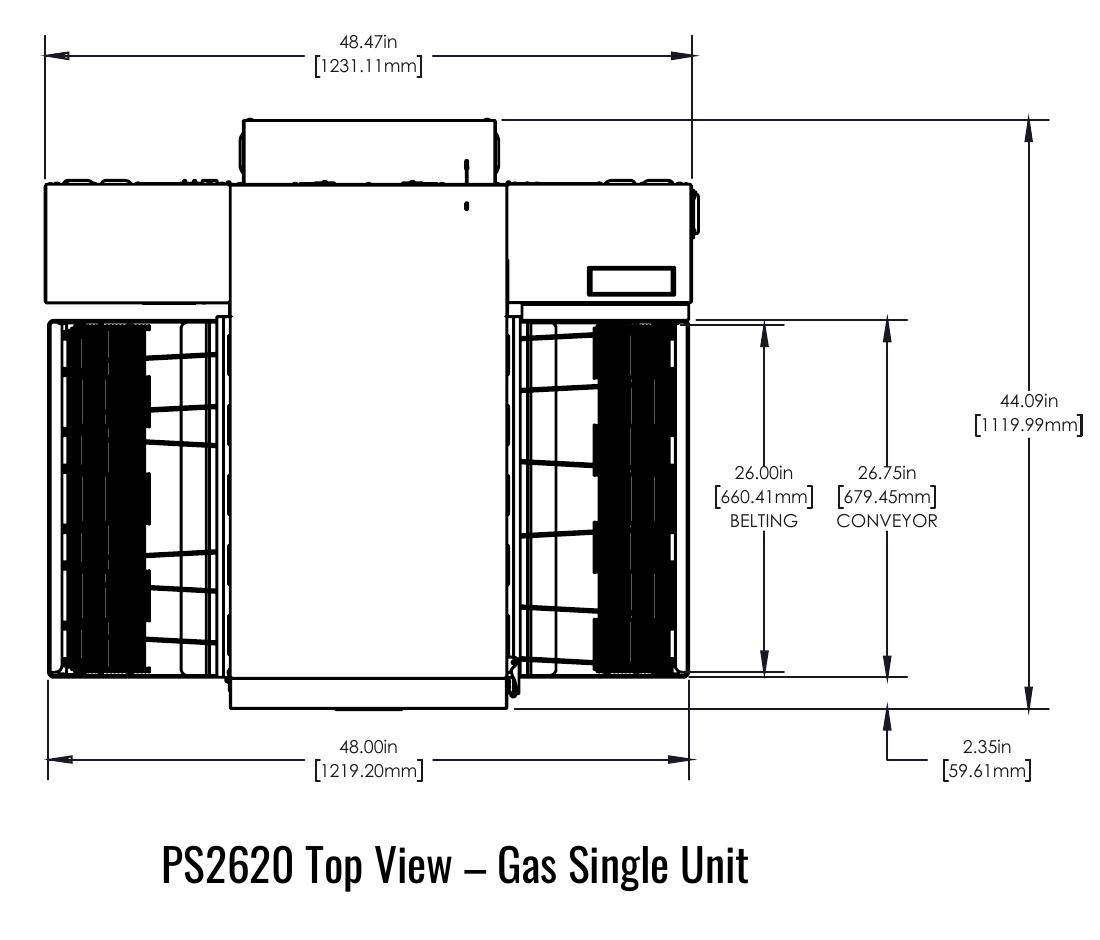

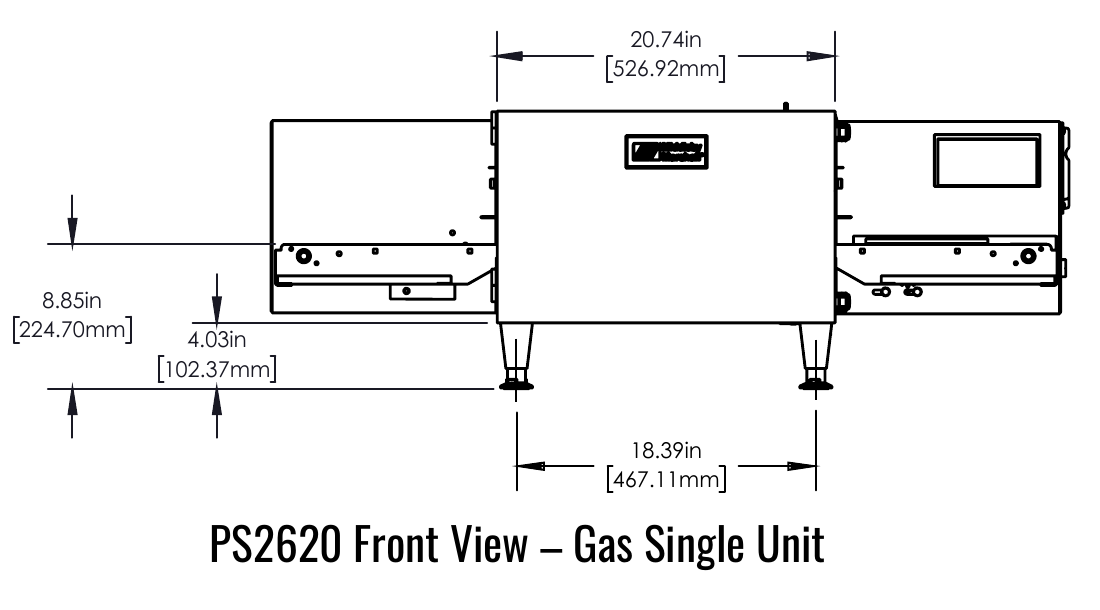

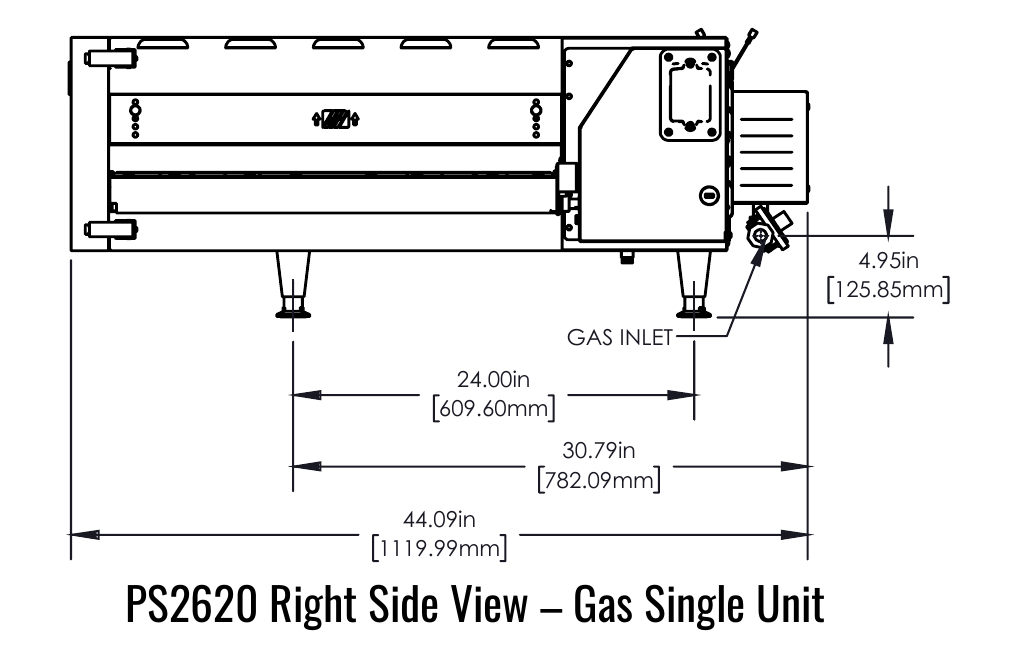

Technical drawings in the gallery show manufacturer reference configurations. Optional belts, extra ovens, stacking kits and ventilation equipment are not included unless expressly specified. Confirm Australian warranty terms with Atlantic Equipment; US warranty and commissioning statements in the sheet do not establish local inclusions.
Download the original PS2620G manufacturer specification sheet — DOC-1045, Revision G, November 2023. Dimensions and services must be confirmed for the exact ordered configuration.
Key features
Specifications
Documents & downloads
Delivery & install
Delivery & access
Check doorway widths, the route to the kitchen and unloading access. Contact Atlantic for delivery options and handling arrangements.
Gas & electrical
A qualified installer should check the gas type and supply, along with the electrical connection needed to operate the oven.
Ventilation & clearance
Confirm the ventilation hood, clearances and local requirements with your installer before installation.
Positioning & installation
Use a level support suitable for the oven's size and weight. Stacking kits and additional ovens are available separately.
