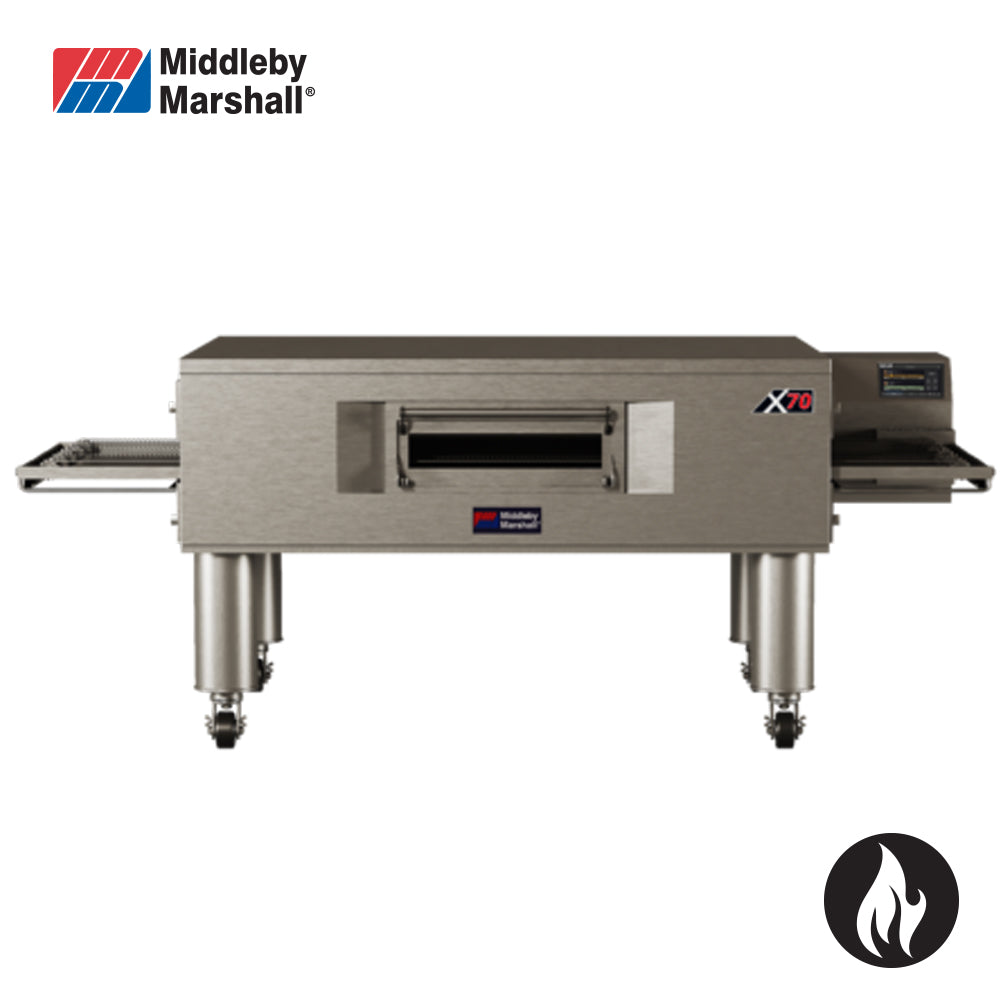

Middleby Marshall X70 Gas X-Series Conveyor Oven with Stand

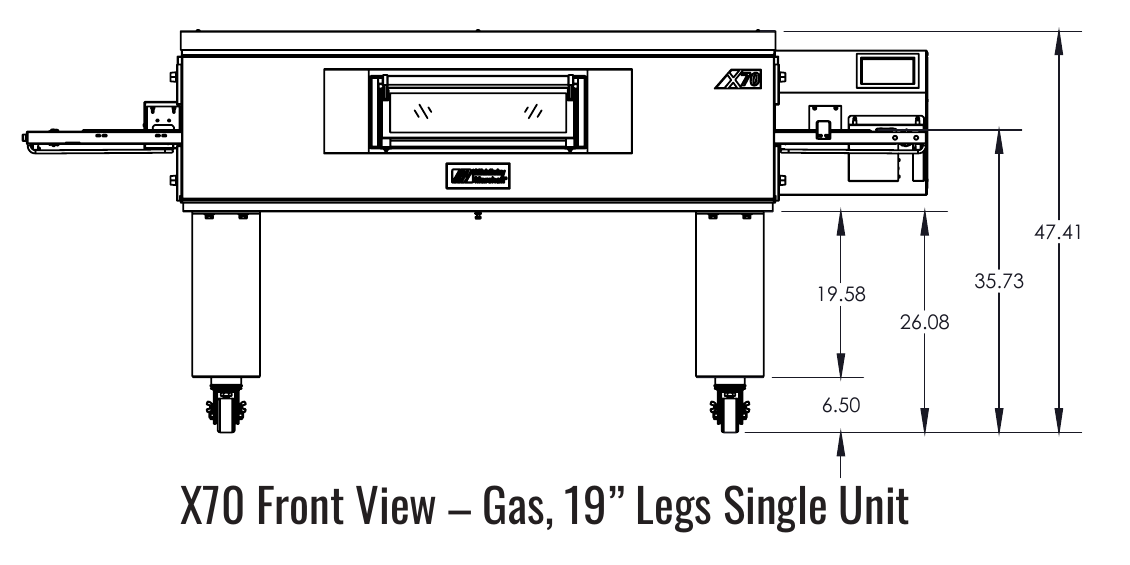

X70 front 19in legs manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions.

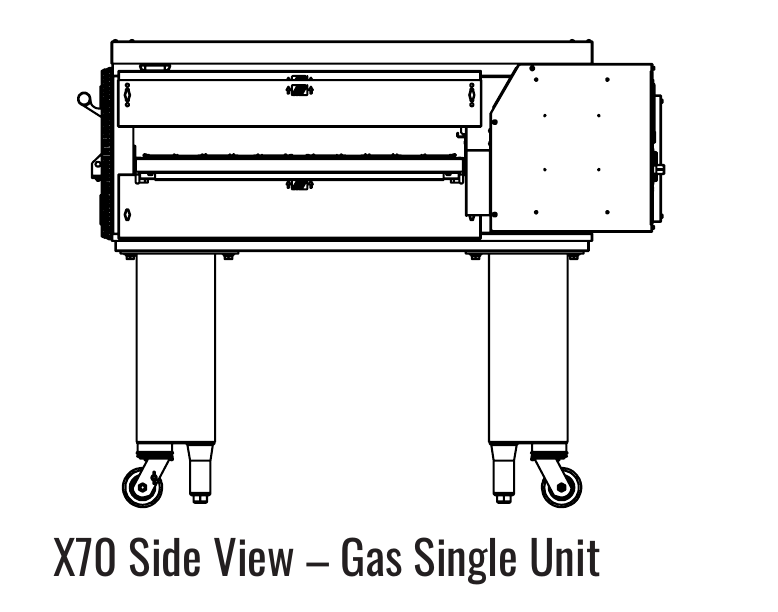

X70 side manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions.

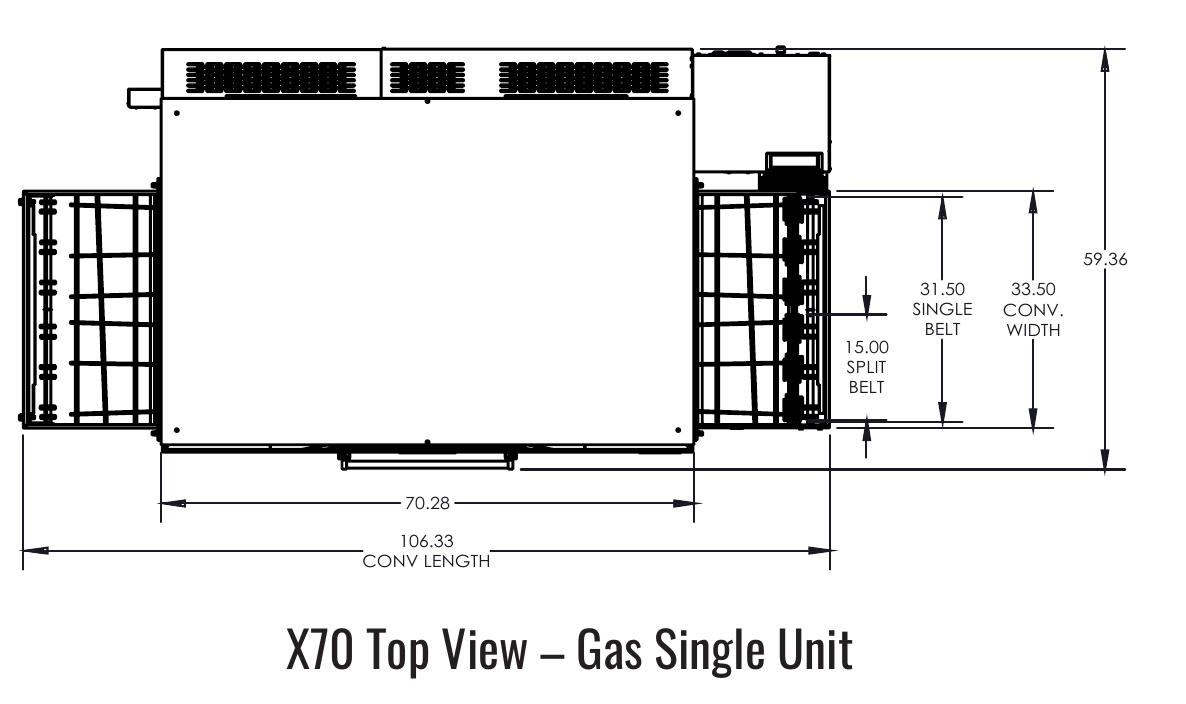

X70 top manufacturer drawing. Reference configuration; check the product description for stand inclusion and dimensions.
Middleby Marshall
In Stock
SKU: X70

Middleby Marshall X70 Gas X-Series Conveyor Oven with Stand

Width 2695.0 mm
Depth 1508.0 mm
Height 1204.0 mm
RRP $76,850.00 SAVE 30%
$53,795.00 ex GST
$59,174.50 inc GST
SilverChef
Rent from $682.78 + GST/week
Apply for finance
Approval in as little as 24 hours
Payment methods
Ask a question
Australia-Wide Delivery
Best Price Guarantee
In Stock – Fast Dispatch
Backed by Warranty & Support
Need advice on this product? Talk to the specialists (02) 8677 0751

Overview

The Middleby Marshall X70 is a gas X-Series impingement conveyor oven. It supports continuous conveyor cooking with adjustable bake time. Stand included.

Technical details

Cooking/heating zone 1778 mm (70 in)
Baking area — single unit 1.4 m²
Conveyor bake-time range 1–19 minutes
Operating temperature 149–315°C
Australian catalogue dimensions — W × D × H 2695 × 1508 × 1204 mm
Australian catalogue power rating Gas | 169 MJ
Supply configuration Stand included.

Configuration and installation notes

The June 2026 Australian catalogue lists an overall length of 2695 mm and conveyor width of 813 mm. The May 2025 sheet lists 2700 mm overall length, an 800 mm single belt and an 851 mm conveyor assembly width; its cover rounds the belt to 32 in. Confirm the current supplied belt and footprint. The PDF shows both 976 mm and 1204 mm heights for different legs. Cavity-only supply excludes the stand. The service table contains export NEMA plug specifications; confirm Australian electrical supply, gas type, pressure and ventilation before installation.

PDF reference: 152.4 mm rear and both ends. Confirm against the ordered configuration and local requirements.

Technical drawings in the gallery show manufacturer reference configurations. Optional belts, extra ovens, stacking kits and ventilation equipment are not included unless expressly specified. Confirm Australian warranty terms with Atlantic Equipment; US warranty and commissioning statements in the sheet do not establish local inclusions.

Download the original X70 manufacturer specification sheet — DOC-1016, Revision G, May 2025. Dimensions and services must be confirmed for the exact ordered configuration.

Key features

Cooking range1–19 minutes conveyor time; 149–315°C.
Jet Sweep impingementHeated air jets cook product as it travels through the chamber.
Reversible conveyorReverse belt direction to suit product flow.
Front-loading windowA cool-handle window permits front access for products with different bake times.
Removable cleaning componentsCrumb pans, end panels, air fingers and a folding conveyor belt assembly are removable.
Three-high stacking optionUp to three ovens may be stacked with the correct supporting equipment; extra ovens are separate.
Energy Management SystemEMS manages heat transfer during operation.
Optional Open Kitchen connectivityIoT compatibility requires ConnectWare; confirm equipment and subscription requirements.
Optional beltsSplit and hearth belts are options; confirm the exact supplied belt.
Hood compatibilityThe manufacturer lists Halton hood compatibility as an option; ventilation equipment is separate.

Specifications

Dimensions
Width
2695.0 mm
Depth
1508.0 mm
Height
1204.0 mm
Shipping weight
877.0 kg
Power & Connections
Power rating
Gas | 169 MJ

Documents & downloads

X70 original manufacturer specification sheetDOC-1016, Revision G, May 2025. Includes technical drawings and regional/configuration variations. See product notes.

Delivery & install

Delivery & access

Check doorway widths, the route to the kitchen and unloading access. Contact Atlantic for delivery options and handling arrangements.

Gas & electrical

A qualified installer should check the gas type and supply, along with the electrical connection needed to operate the oven.

Ventilation & clearance

Confirm the ventilation hood, clearances and local requirements with your installer before installation.

Positioning & installation

Check the oven's positioning, support and commissioning requirements. Ask Atlantic about installation arrangements for your site.
