Overview

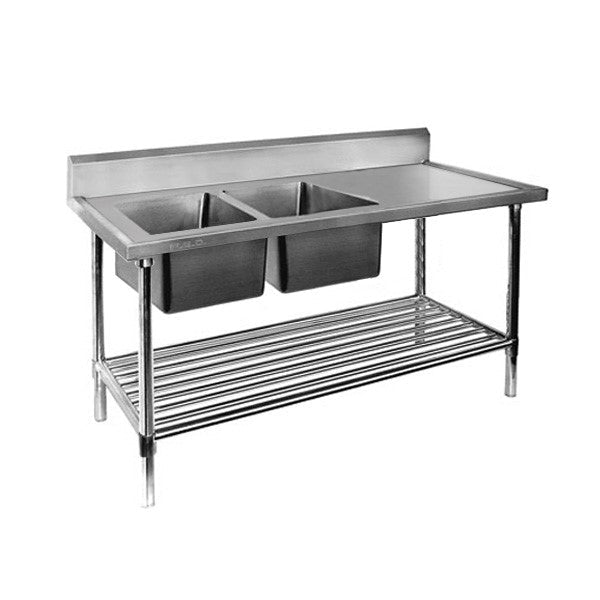

Modular Systems DSB6-1500L/A Double Left Sink Bench with Pot Undershelf

The Modular Systems DSB6-1500L/A is a 1500 mm wide all-stainless double left sink bench combining a generous integrated work surface with two fully welded bowls and a pot undershelf, purpose-built for the rigours of professional commercial kitchens, restaurants, cafes and catering facilities. Constructed from 1.2 mm SUS304 (18/8) stainless steel throughout, it delivers lasting hygiene and structural integrity under the demands of high-volume food service.

Supplied flat-packed for straightforward transport and storage, the bench is engineered for quick and simple assembly and ships complete with an instruction manual and all required tools. A free optional leg brace is available as an alternative to the pot undershelf and can be requested at the time of ordering, giving operators flexibility to configure the unit to suit their workflow.

Key Benefits

• Fully welded, internally and externally polished bowls ensure thorough cleaning and prevent bacteria harbouring in hard-to-reach seams.
• XPS board lining beneath the SUS304 benchtop, combined with stainless steel 'U' channel reinforcements, provides a rigid, dampened work surface that resists flex and noise under heavy use.
• Fully adjustable polished stainless steel disc feet allow precise levelling on uneven floors, keeping the bench stable and compliant with food safety requirements.
• Flat-pack delivery with included tools and an instruction manual reduces freight costs and makes installation straightforward without specialist tradespeople.
• The 15 mm wet edge along the benchtop helps contain water and liquids during washing and prep, keeping the surrounding floor area drier and safer.
• Optional lockable castor kits (available separately) let operators reposition the bench quickly for deep cleaning or kitchen reconfiguration.
• The free optional leg brace alternative to the pot undershelf allows the unit to be tailored to kitchens that require clear under-bench clearance for storage trolleys or cleaning equipment.
• A 90 mm diameter drain hole in each bowl accommodates standard commercial waste fittings, simplifying plumbing connections.
• The 2-year parts-only warranty provides confidence in long-term reliability for a busy commercial environment.

Key Features

• Overall dimensions: 1500 mm wide x 600 mm deep x 900 mm high
• Double left-positioned bowl configuration with centre bowl positioning noted across the range
• Bowl dimensions: 400 mm W x 400 mm D x 300 mm H each
• 90 mm diameter drain hole per bowl
• Bowls fully welded and polished inside and out
• 1.2 mm SUS304 (18/8) stainless steel construction throughout
• Benchtop lined with 15 mm thick XPS board and stainless steel panel for rigidity and acoustic dampening
• Stainless steel 'U' channel reinforcements under the benchtop; number of channels increases with bench width
• 15 mm wet edge to the benchtop
• Splashback: stainless steel backed, 150 mm high, bevelled and fully enclosed
• 4 legs per bench (2100 mm and 2400 mm wide benches are supplied with 6 legs)
• Legs: 1.2 mm stainless steel, 42 mm diameter tube
• Fully adjustable stainless steel polished disc feet
• Lockable castor kits available as an optional accessory
• Pot undershelf constructed from 1.2 mm SUS304 (18/8) stainless steel
• Pot undershelf outer frame: 38 mm diameter, 1.2 mm wall tube
• Pot undershelf inner tubes: 25 mm diameter, 1 mm wall tube, spaced at 40 mm centres
• Free optional leg brace available as an alternative to the pot undershelf; must be specified at time of order
• Supplied flat-packed for ease of transport
• Includes instruction manual and assembly tools
• Specially designed for quick and simple assembly
• 2-year parts-only warranty

Specifications

• Width (mm): 1500
• Depth (mm): 600
• Height (mm): 900
• Weight (kg): 45.75
• Packed Width (mm): 670
• Packed Depth (mm): 1570
• Packed Height (mm): 530
• Shipping Weight: 45.8
• Warranty (months): 2 Years Parts Only
• Capacity (Litres): 1500
