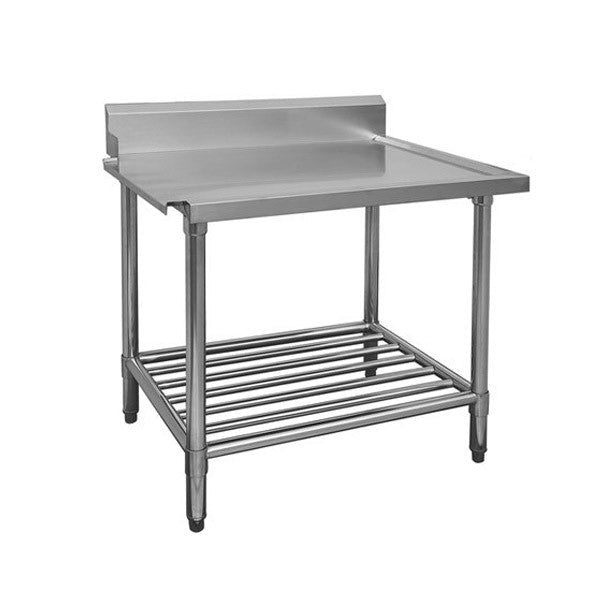

Modular Systems WBBD7-0600L/A All Stainless Steel Dishwasher Bench Left Outlet 600mm

The Modular Systems WBBD7-0600L/A is a 600mm wide all stainless steel dishwasher bench with a left-side outlet configuration, meaning the dishwasher inlet and sinks are positioned to the left when facing the bench. Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, it is purpose-built for high-volume commercial kitchens, cafes, restaurants, and catering operations that demand reliable hygiene, structural strength, and a logical dishwashing workflow.

Supplied flat-packed with an instruction manual and all required tools included, the bench is engineered for quick and simple on-site assembly. The benchtop is lined with XPS board and a stainless steel panel, reinforced underneath with stainless steel 'U' channels scaled to bench width, while the fully enclosed tubular legs feature fully adjustable polished stainless steel disc feet. A 2-year parts-only warranty is included.

Key Benefits

• Left-hand outlet configuration positions the dishwasher inlet and sinks on the left, supporting a logical and efficient rinse-to-load workflow.
• Compact 600mm width makes this bench well suited to smaller or space-restricted dishwashing stations without compromising functionality.
• SUS304 (18/8) stainless steel construction throughout resists corrosion, is easy to clean, and meets the hygiene demands of commercial food service environments.
• XPS board lining combined with stainless steel 'U' channel reinforcements under the benchtop provides a rigid, stable work surface capable of a 240kg load rating for this 600mm width.
• Fully adjustable polished stainless steel disc feet compensate for uneven floors, keeping the bench level and stable during busy service.
• Flat-packed supply with all assembly tools and an instruction manual included reduces freight costs and simplifies delivery into tight spaces.
• Optional lockable castor kits allow the bench to be repositioned as needed, adding flexibility to kitchen layouts.
• Modular compatibility allows the bench to integrate with other Modular Systems benches and dishwashing equipment for a coordinated, scalable setup.
• Two-year parts-only warranty provides confidence in long-term commercial performance.

Key Features

• Left-side outlet configuration: dishwasher inlet and sinks are on the left when facing the bench.
• Overall dimensions: 600mm wide x 700mm deep x 900mm high.
• Benchtop material: 1.2mm SUS304 (18/8) stainless steel, lined with XPS board (15mm thick) and a stainless steel panel.
• Stainless steel 'U' channel reinforcements beneath the benchtop; number of channels increases with bench width for added rigidity.
• Load rating: 240kg for the 600mm wide bench.
• Splashback: 1.2mm stainless steel, 180mm high and 30mm thick, bevelled and fully enclosed.
• Legs: 1.2mm stainless steel tube, 42mm diameter, fully enclosed.
• Four legs per bench (wider 2100mm and 2400mm benches use six legs).
• Fully adjustable stainless steel polished disc feet matched to leg diameter.
• Optional lockable castor kits available.
• Supplied flat-packed for ease of transport and handling.
• Includes instruction manual and all necessary assembly tools.
• Specially engineered for quick and simple assembly.
• 2-year parts-only warranty.

Specifications

• Width (mm): 600
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 25.15
• Packed Width (mm): 770
• Packed Depth (mm): 930
• Packed Height (mm): 275
• Shipping Weight: 25
• Warranty (months): 2 Years Parts Only
• Capacity (Litres): 600
• Splash Back: 180 mm high; 30 mm thick
