Overview

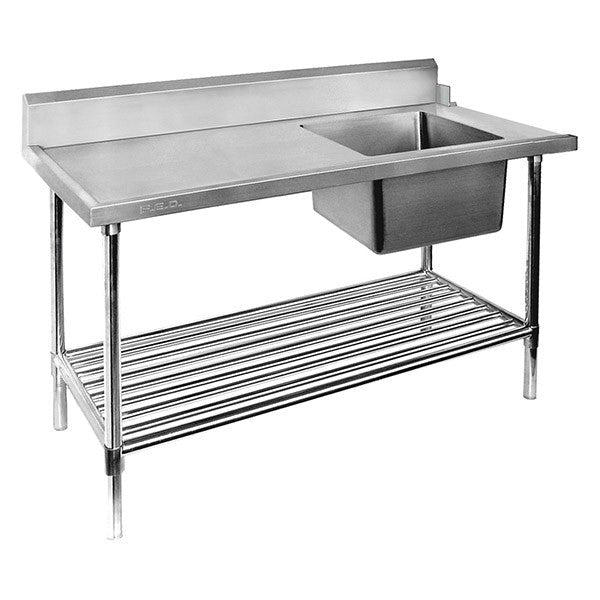

Modular Systems SSBD7-1200R/A Right Inlet Single Sink Dishwasher Bench 1200mm

The Modular Systems SSBD7-1200R/A is a 1200mm wide all-stainless-steel dishwasher inlet bench purpose-built for commercial kitchens, cafes, restaurants, and catering facilities. With the sink bowl and dishwasher inlet positioned on the right side when facing the bench, it is designed to integrate seamlessly into a logical warewashing workflow, keeping clean ware moving efficiently through busy service periods.

Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, the bench arrives flat-packed with an instruction manual and all necessary tools for quick, straightforward assembly. Every component, from the fully welded and polished bowl to the XPS-board-lined benchtop and bevelled splashbacks, is engineered for long-term durability, hygiene, and structural rigidity in demanding high-volume environments.

Key Benefits

• Right-side bowl positioning supports an efficient, logical dishwashing flow that reduces cross-contamination risk and keeps service moving smoothly.
• Fully welded bowl, polished inside and out, eliminates crevices where food and bacteria can accumulate, making sanitation faster and more thorough.
• XPS board lining beneath the benchtop surface reduces noise and condensation, improving comfort and longevity in a wet kitchen environment.
• Flat-packed delivery simplifies transport and handling, while the included tools and instruction manual allow rapid on-site assembly with minimal downtime.
• Fully adjustable polished stainless steel disc feet compensate for uneven floors, ensuring a stable, level working surface at all times.
• Optional lockable castor kits provide the flexibility to reposition the bench as kitchen layouts or service requirements change.
• Stainless steel 'U' channel reinforcements under the benchtop maintain rigidity under load, with the number of channels scaling as bench width increases.
• A 2-year parts-only warranty provides assurance of product quality and manufacturer support for commercial operators.

Key Features

• Overall dimensions: 1200mm wide x 700mm deep x 900mm high
• Single sink bowl: 450mm wide x 450mm deep x 300mm high with a 90mm diameter drain hole
• Right bowl positioning: when facing the bench, the dishwasher inlet and sink are on the right side
• All construction in 1.2mm SUS304 (18/8) stainless steel
• 15mm wet edge to contain water and reduce spillage onto the floor
• Bowls are fully welded and polished both inside and out for hygiene and durability
• Splashbacks: stainless steel backed, 150mm high, 40mm thick, bevelled and fully enclosed
• Benchtop lined with 15mm XPS board and a stainless steel panel for insulation and noise reduction
• Stainless steel 'U' channel reinforcements under the benchtop; number of channels increases with bench width
• 4 legs per bench (2100mm and 2400mm wide benches are supplied with 6 legs)
• Legs: 1.2mm stainless steel, 42mm diameter
• Fully adjustable polished stainless steel disc feet that complement the leg finish
• Optional lockable castor kits available for added mobility
• Supplied flat-packed for ease of transport and storage
• Includes instruction manual and assembly tools
• Specially designed for quick and simple assembly
• 2-year parts-only warranty

Specifications

• Width (mm): 1200
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 41.3
• Packed Width (mm): 770
• Packed Depth (mm): 1270
• Packed Height (mm): 530
• Warranty (months): 2 Years Parts Only
