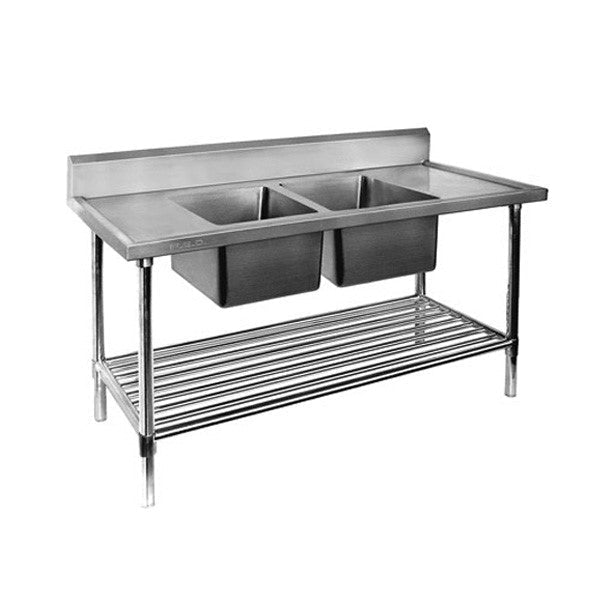

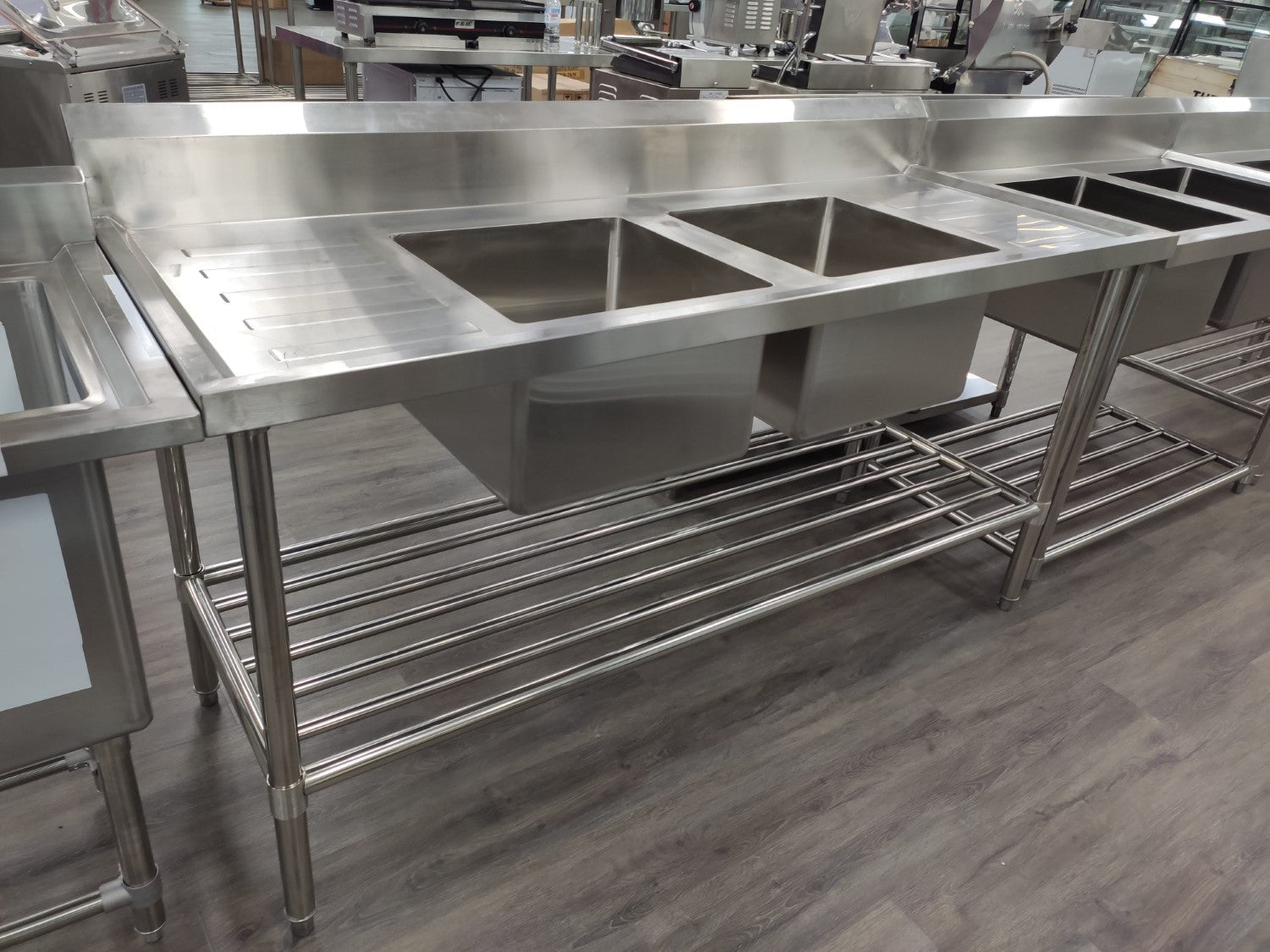

Modular Systems DSB6-1200C/A Double Centre Sink Bench with Pot Undershelf 1200mm

The Modular Systems DSB6-1200C/A is a 1200mm wide double centre sink bench constructed from 1.2mm SUS304 (18/8) stainless steel throughout, purpose-built for the rigours of commercial kitchen environments. The centre-positioned twin bowl configuration integrates seamlessly with the pot undershelf below and a fully enclosed bevelled splashback above, delivering a compact, self-contained washing and preparation station suited to restaurants, cafes, catering facilities and high-volume food service operations.

Supplied flat-packed with an instruction manual and all required tools, the bench is engineered for quick and simple assembly without specialist tradespeople. The benchtop is reinforced with XPS board lining, a stainless steel panel, and stainless steel 'U' channel supports underneath, ensuring long-term structural rigidity even under sustained heavy use. A free optional leg brace is available in place of the pot undershelf and must be specified at the time of ordering.

Key Benefits

• Centre bowl positioning keeps the washing zone central on the bench, allowing prep space on either side and supporting efficient kitchen workflow.
• Flat-packed delivery with included tools and instruction manual simplifies transport, site handling and assembly, reducing setup time and labour costs.
• Fully adjustable stainless steel polished disc feet accommodate uneven floors without shimming, keeping the bench level and stable during busy service periods.
• XPS board lining combined with stainless steel 'U' channel reinforcements under the benchtop resists flex and impact, maintaining a solid work surface over years of heavy daily use.
• Fully welded bowls polished inside and out eliminate hidden crevices where bacteria and food debris can accumulate, supporting food safety and hygiene compliance.
• The pot undershelf provides immediate accessible storage for pots, pans and heavy equipment directly beneath the sink, keeping the work area organised and reducing bench clutter.
• Optional lockable castor kits allow the bench to be repositioned easily for thorough floor cleaning or kitchen reconfiguration without tools.
• A free optional leg brace (specified at order) replaces the pot undershelf where open under-bench access is preferred, offering layout flexibility across different kitchen setups.

Key Features

• 1200mm wide double sink bench; overall dimensions 1200mm W x 600mm D x 900mm H
• 1.2mm SUS304 (18/8) stainless steel construction throughout bench, legs and undershelf
• Two centre-positioned bowls, each 400mm W x 400mm D x 300mm H with 90mm diameter drain hole
• Bowls are fully welded and polished inside and out for hygiene and durability
• 15mm wet edge around bowl openings
• Benchtop lined with 15mm XPS board and stainless steel panel for rigidity and insulation
• Stainless steel 'U' channel reinforcements under the benchtop; number of channels increases with bench width
• Splashback: stainless steel backed, 150mm high, 40mm thick, bevelled and fully enclosed
• 4 legs per bench (2100mm and 2400mm wide benches are supplied with 6 legs)
• Legs: 1.2mm stainless steel, 42mm diameter
• Fully adjustable stainless steel polished disc feet to suit uneven floors
• Lockable castor kits available as an optional accessory
• Pot undershelf: 1.2mm SUS304 (18/8) stainless steel; outer frame tubes 38mm diameter x 1.2mm; inner tubes 25mm diameter x 1mm with 40mm spacing
• Free optional leg brace available as an alternative to the pot undershelf; must be specified at time of order
• Specially designed for quick and simple self-assembly; supplied flat-packed with instruction manual and tools included
• 2 years parts only warranty

Specifications

• Width (mm): 1200
• Depth (mm): 600
• Height (mm): 900
• Weight (kg): 31.5
• Packed Width (mm): 670
• Packed Depth (mm): 1270
• Packed Height (mm): 530
• Shipping Weight: 40
• Warranty (months): 2 Years Parts Only
