Modular Systems 400 x 350 x 200mm Bowl Stainless Steel Weld-In Insulated Ice Well - IB-403520
Couldn't load pickup availability
Open here
Overview

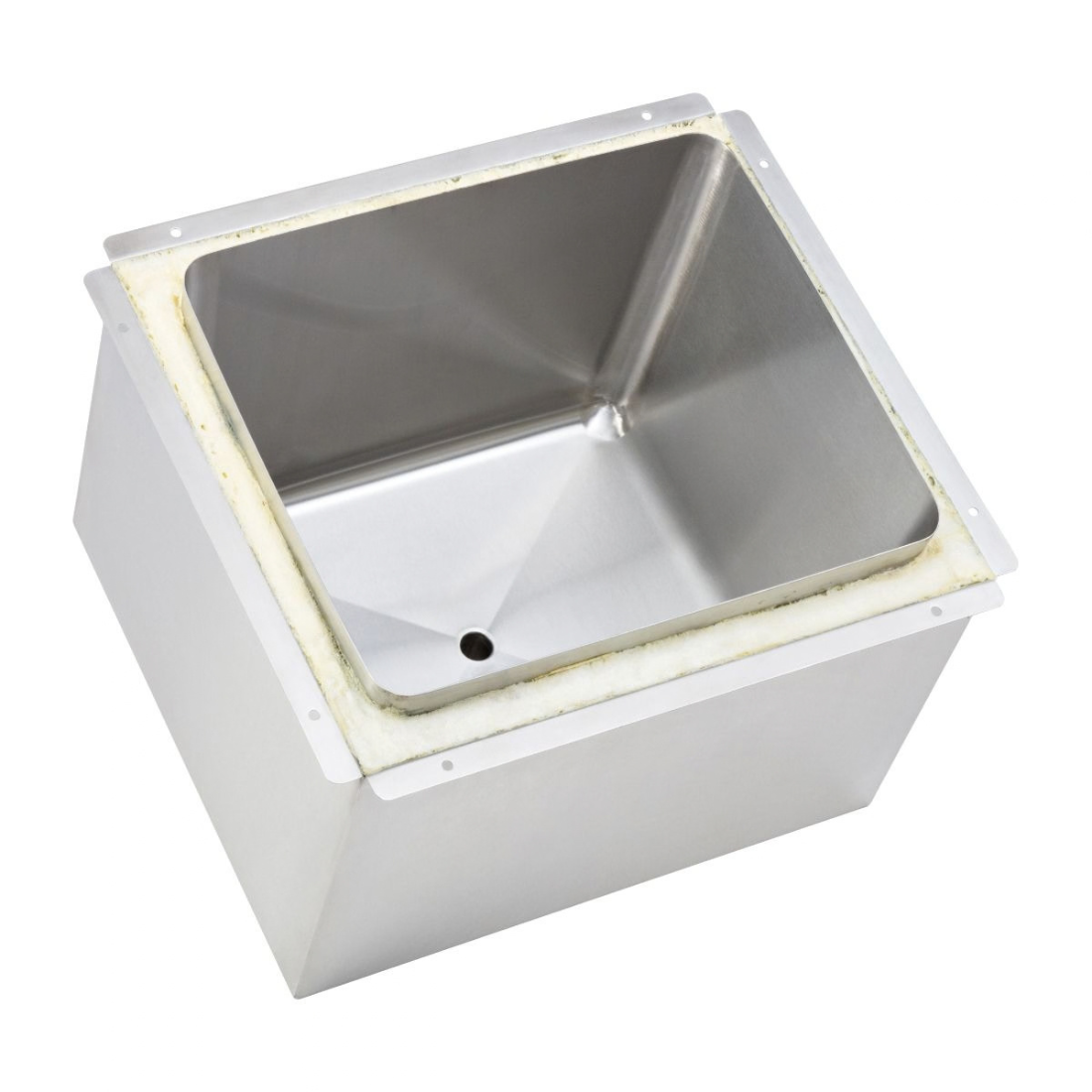

Modular Systems 400 x 350 x 200mm Bowl Stainless Steel Weld-In Insulated Ice Well - IB-403520
The Modular Systems weld-in insulated ice well is built for bars, cafés and commercial kitchens across Australia. AISI304 stainless steel construction gives durability and easy cleaning, and double-skinned insulated walls help keep ice colder for longer.
The IB-403520 has a 400 × 350 × 200mm fabricated inner bowl for ice storage, a weld-in design with 8 screw holes for secure bench installation and a centred stainless steel drain that connects to existing drainage. Choosing your model: the IB-303020 has a 300 × 300 × 200mm fabricated bowl and the IB-403520 a larger 400 × 350 × 200mm bowl. Each has a matching lid sold separately (IB-303020-LID / IB-403520-LID).
Key Features
- Insulated construction – Double-skinned insulated walls help keep ice colder for longer.
- AISI304 stainless steel – AISI304 stainless steel construction for durability and easy cleaning.
- Fabricated inner bowl – 400 × 350 × 200mm fabricated inner bowl for ice storage, with radius corners that support easy cleaning.
- Weld-in installation – Weld-in design with 8 screw holes for secure bench installation.
- Centred drain – Centred stainless steel drain connects to existing drainage.
- Matching lid available – Matching stainless steel lid (IB-403520-LID, sold separately) helps keep ice clean and reduce melting.
Specifications
| Fabricated Bowl Size (W × D × H mm) | 400 × 350 × 200 |
|---|---|
| Top Flange Material | 1.08mm 304 S/S with flanges |
| Drain | 25Ø × 72mm S/S |
| Construction | AISI304 stainless steel, double-skinned insulated walls |
| Installation | Weld-in, 8 screw holes |
| Matching Lid | IB-403520-LID (sold separately) |
Packaging
| Packing Dimensions (L × W × H mm) | 550 × 500 × 350 |
|---|---|
| Net Weight (kg) | TBC |
| Gross Weight (kg) | TBC |
Specifications
| Width | 400 mm |
|---|---|
| Depth | 300 mm |
| Height | 200 mm |
