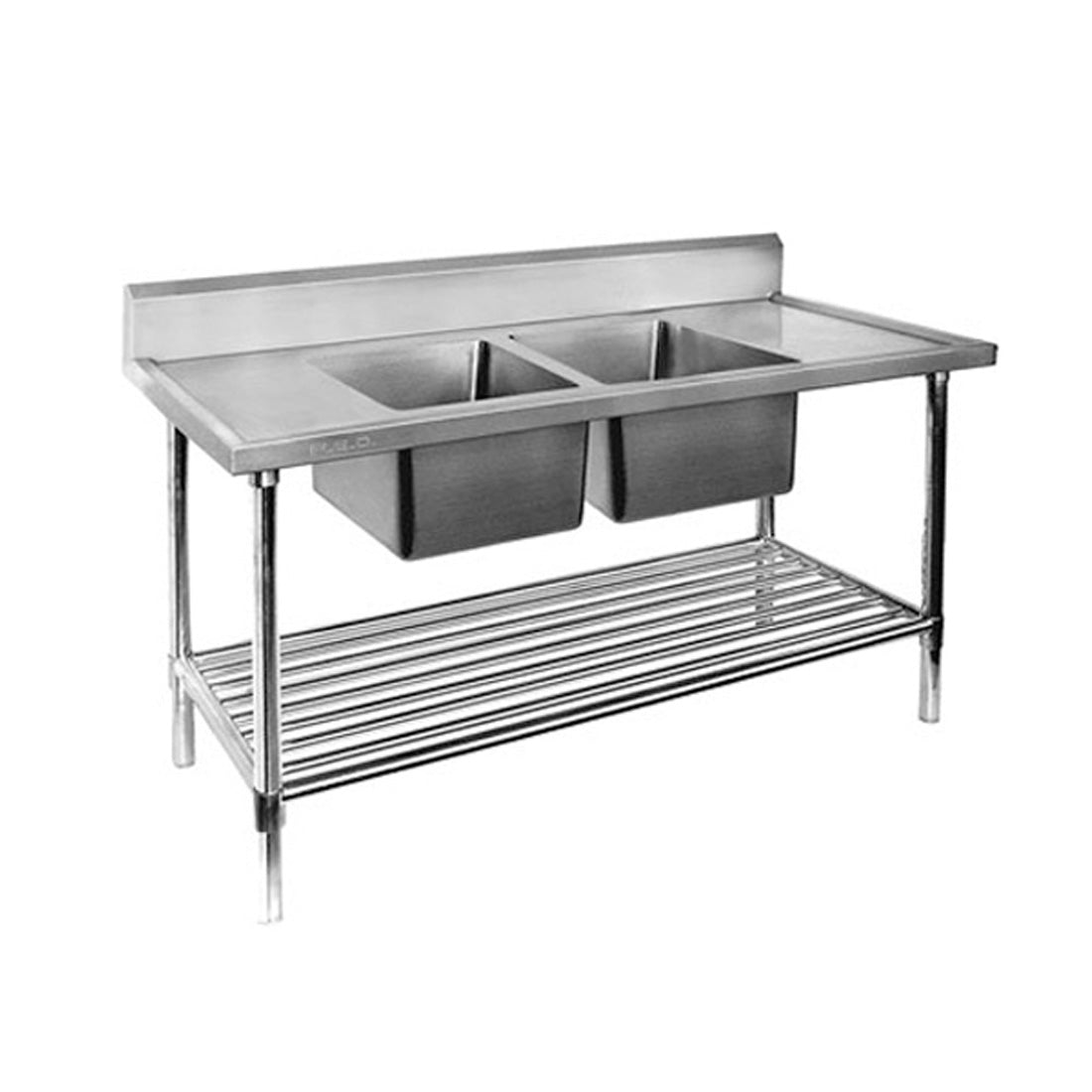

Modular Systems DSB6-1500C/A Modular System Double Centre Sink Bench with Pot Undershelf

Overview

Modular Systems DSB6-1500C/A Double Centre Sink Bench with Pot Undershelf – 1500mm

The Modular Systems DSB6-1500C/A is a 1500mm wide all-stainless steel double centre sink bench purpose-built for professional commercial kitchens, restaurants, cafés and catering facilities. Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, it combines two fully welded and polished bowls with a reinforced benchtop and a tubular pot undershelf, delivering a hygienic, durable and highly functional washing and preparation station in a single unit.

Supplied flat-packed with an instruction manual and all required tools, the bench is specially engineered for quick and simple on-site assembly, making it practical for new fit-outs and refurbishments alike. A free optional leg brace can be substituted for the pot undershelf if required – simply specify on ordering. The unit carries a 2-year parts-only warranty, backed by Modular Systems' established commercial kitchen range.

Key Benefits

• Two fully welded, internally and externally polished bowls provide a seamless hygienic wash area that is easy to clean and resists bacterial build-up.
• SUS304 (18/8) stainless steel construction throughout withstands the rigours of heavy daily use, hot water, cleaning chemicals and physical impact.
• XPS board-lined benchtop with stainless steel panel and 'U' channel reinforcements underneath delivers exceptional surface rigidity, reducing flex even under heavy loads.
• Fully adjustable stainless steel polished disc feet allow precise levelling on uneven floors, with optional lockable castor kits available for mobile applications.
• Flat-pack delivery with included instruction manual and tools simplifies transport, reduces freight costs and enables fast, straightforward assembly on site.
• The enclosed, bevelled stainless steel splashback protects the wall surface and keeps the work area clean during high-volume washing tasks.
• A tubular pot undershelf with 40mm-spaced inner tubes provides accessible below-bench storage for pots, trays and equipment, keeping the workspace organised.
• Free optional leg brace (in place of the pot shelf) offers structural flexibility to suit different kitchen layouts and workflow requirements – specify at time of order.
• Centre bowl positioning maximises usable bench space on either side of the sinks, supporting simultaneous washing and food preparation activities.

Key Features

• 1500mm wide x 600mm deep x 900mm high overall bench dimensions
• Double sink configuration with centre bowl positioning
• Each bowl: 400mm W x 400mm D x 300mm H with a 90mm diameter drain hole
• Bowls are fully welded and polished inside and out
• 1.2mm SUS304 (18/8) stainless steel used throughout the bench construction
• 15mm wet edge around bowl openings
• Benchtop lined with 15mm XPS board and stainless steel panel for rigidity and insulation
• Special stainless steel 'U' channel reinforcements under the benchtop; channel quantity increases with bench width
• Splashback: stainless steel-backed, 150mm high, fully enclosed and bevelled
• Legs: 1.2mm stainless steel, 42mm diameter tube
• 4 legs supplied on this 1500mm bench; 2100mm and 2400mm wide models include 6 legs
• Fully adjustable stainless steel polished disc feet
• Optional lockable castor kits available separately
• Pot undershelf: 1.2mm (18/8) stainless steel construction
• Pot undershelf outer frame: 38mm diameter, 1.2mm wall tube
• Pot undershelf inner tubes: 25mm diameter, 1mm wall tube at 40mm spacing
• Free optional leg brace available as a substitute for the pot undershelf – must be specified at time of order
• Supplied flat-packed for ease of transport and reduced freight costs
• Includes instruction manual and assembly tools
• Specially designed for quick and simple assembly
• 2-year parts-only warranty

Specifications

• Width (mm): 1500
• Depth (mm): 600
• Height (mm): 900
• Weight (kg): 45
• Packed Width (mm): 670
• Packed Depth (mm): 1570
• Packed Height (mm): 530
• Shipping Weight: 45
• Warranty (months): 2 Years Parts Only
