Modular Systems DSB7-1200C/A Double Centre Sink Bench with Pot Undershelf

Overview

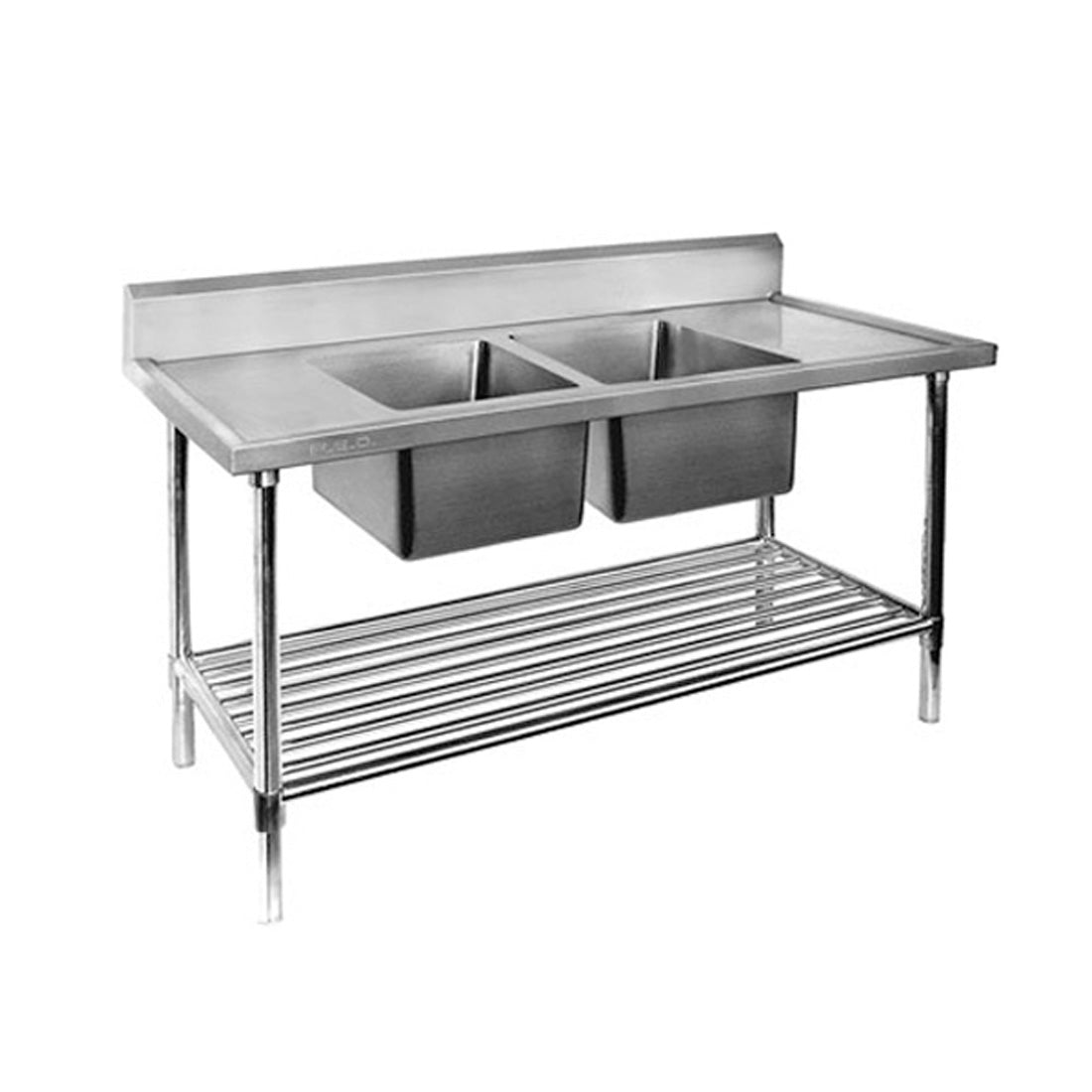

Modular Systems DSB7-1200C/A Double Centre Sink Bench with Pot Undershelf 1200mm

The Modular Systems DSB7-1200C/A is a 1200mm wide all-stainless steel double centre sink bench purpose-built for demanding commercial kitchen environments. Constructed from 1.2mm thick SUS304 (18/8) stainless steel throughout, it features two fully welded and polished bowls in a centre-positioned layout, a protective splashback, and a practical pot undershelf, making it an essential workstation for restaurants, cafes, catering facilities, and high-volume hospitality operations.

Supplied flat-packed with an instruction manual and all necessary tools, the DSB7-1200C/A is engineered for quick and simple on-site assembly. A free optional leg brace is available as an alternative to the pot undershelf and must be specified at the time of ordering. Fully adjustable polished stainless steel disc feet ensure stability on uneven floors, and lockable castor kits are available as an optional upgrade for added mobility.

Key Benefits

• Fully welded and internally and externally polished bowls provide a hygienic, easy-to-clean surface that resists corrosion and withstands the rigours of heavy daily use.
• The 15mm wet edge around the benchtop helps prevent water seeping over the edge, protecting floors and reducing slip hazards in busy kitchen environments.
• XPS board lining and a stainless steel panel under the benchtop, reinforced with SUS304 'U' channel supports, add structural rigidity and resist deflection under heavy loads.
• Fully adjustable polished stainless steel disc feet allow the bench to be levelled precisely on uneven surfaces, ensuring stable, safe operation.
• Flat-packed delivery simplifies transport and storage, while the included instruction manual and tools mean the unit can be assembled quickly without specialist trades.
• A free optional leg brace can replace the pot undershelf for kitchens requiring a more open under-bench configuration, providing flexibility to suit different workflow needs.
• Lockable castor kits are available as an option, allowing the bench to be repositioned easily during cleaning or kitchen reconfiguration.
• The 90mm diameter drain holes in each bowl are compatible with standard commercial plumbing fittings, making installation and maintenance straightforward.
• A 2-year parts-only warranty provides confidence in long-term reliability for commercial kitchen operators.

Key Features

• Overall dimensions: 1200mm wide x 700mm deep x 900mm high
• Bowl dimensions: 400mm wide x 400mm deep x 300mm high per bowl
• Centre bowl positioning with two bowls
• Bowls are fully welded and polished inside and out
• 90mm diameter drain hole per bowl
• 15mm wet edge on benchtop to contain water
• 1.2mm thick SUS304 (18/8) stainless steel benchtop construction
• Benchtop lined with 15mm XPS board and a stainless steel panel for added strength
• Special stainless steel 'U' channel reinforcements beneath the benchtop; number of channels increases with bench width
• Splashback: stainless steel backed, 150mm high, bevelled, fully enclosed
• Legs: 1.2mm stainless steel, 42mm diameter round tube
• 4 legs per bench (6 legs on 2100mm and 2400mm wide benches)
• Fully adjustable stainless steel polished disc feet to match leg finish
• Lockable castor kits available as an optional accessory
• Pot undershelf: 1.2mm SS (18/8); outer frame tubes 38mm diameter x 1.2mm wall; inner tubes 25mm diameter x 1mm wall with 40mm spacing
• Free optional leg brace available as an alternative to the pot undershelf; must be specified at time of order
• Supplied flat-packed for ease of transport
• Includes instruction manual and assembly tools
• Specially designed for quick and simple assembly
• Weight: 40.35kg
• Packed dimensions: 770mm wide x 1270mm deep x 530mm high
• 2-year parts-only warranty

Specifications

• Width (mm): 1200
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 40.35
• Packed Width (mm): 770
• Packed Depth (mm): 1270
• Packed Height (mm): 530
• Shipping Weight: 129.5
• Warranty (months): 2 Years Parts Only
• Splash Back: 150mm high and 30mm thick splashback protects walls
