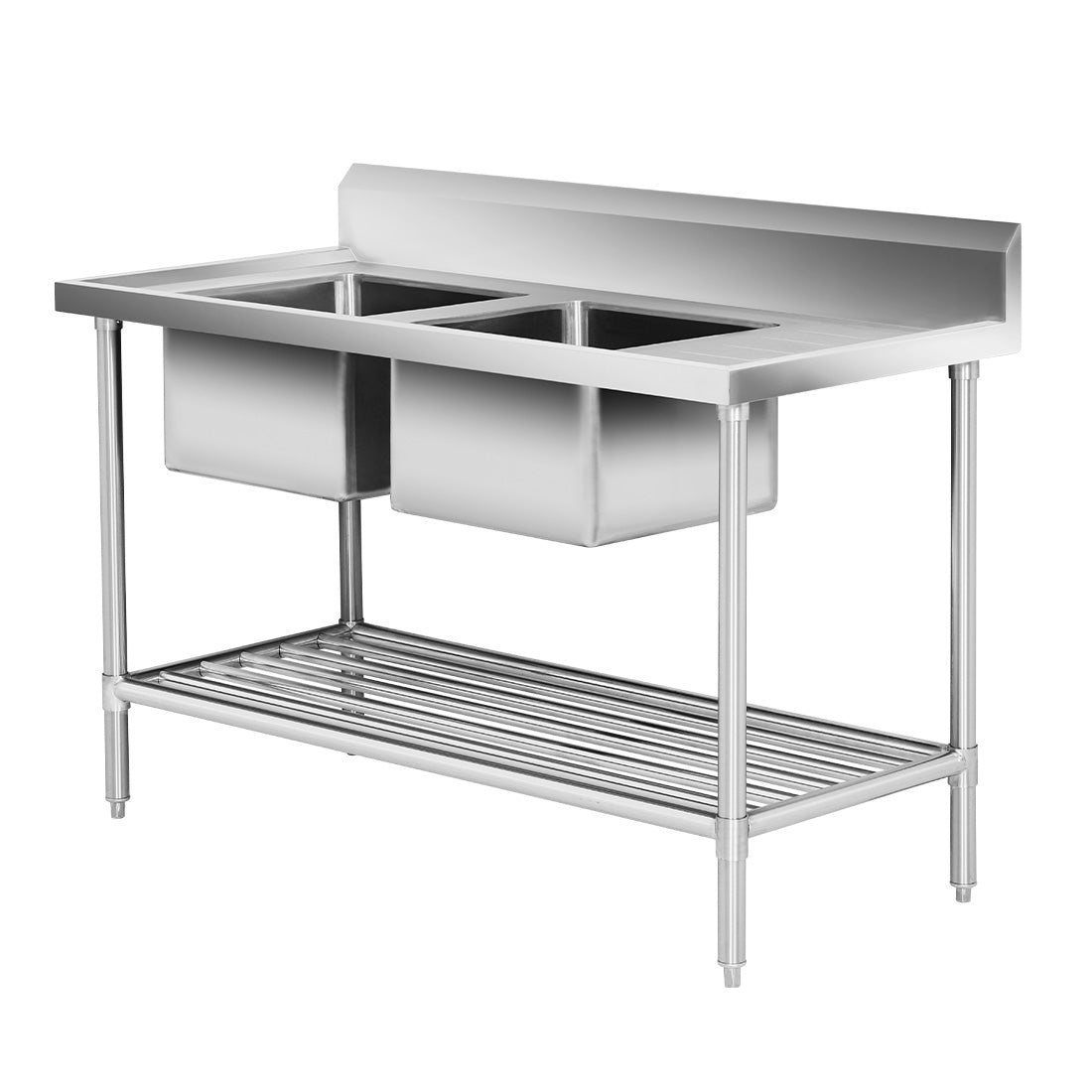

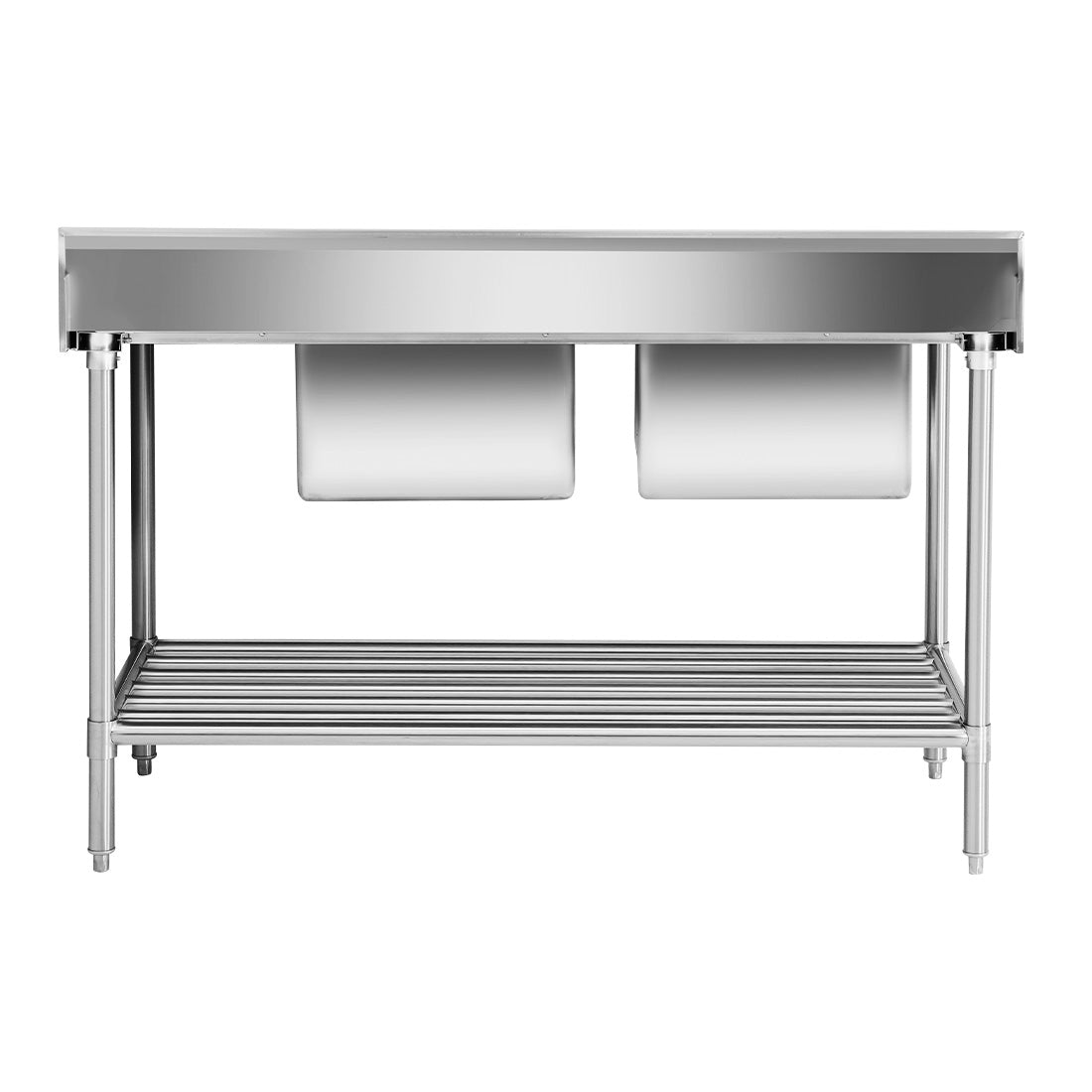

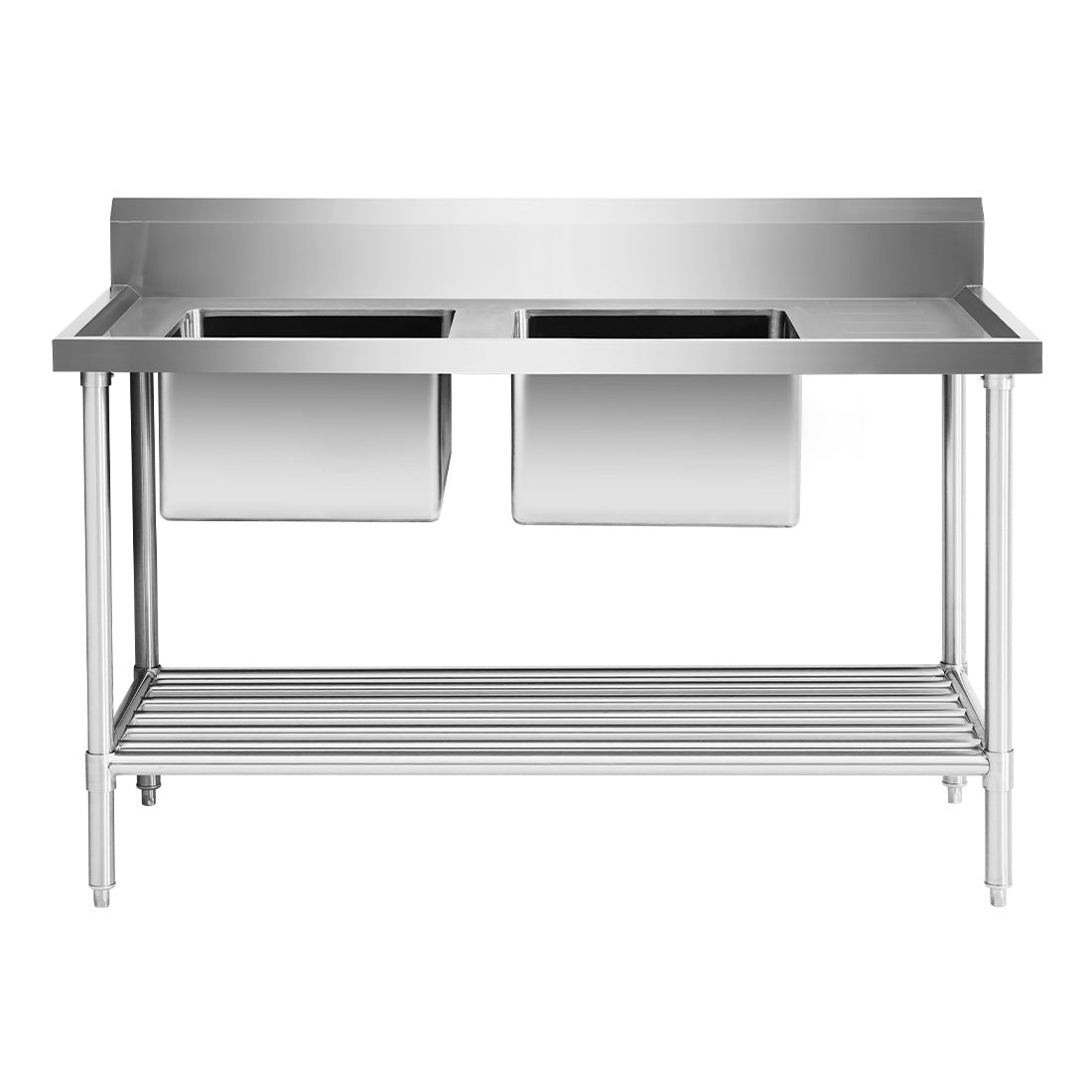

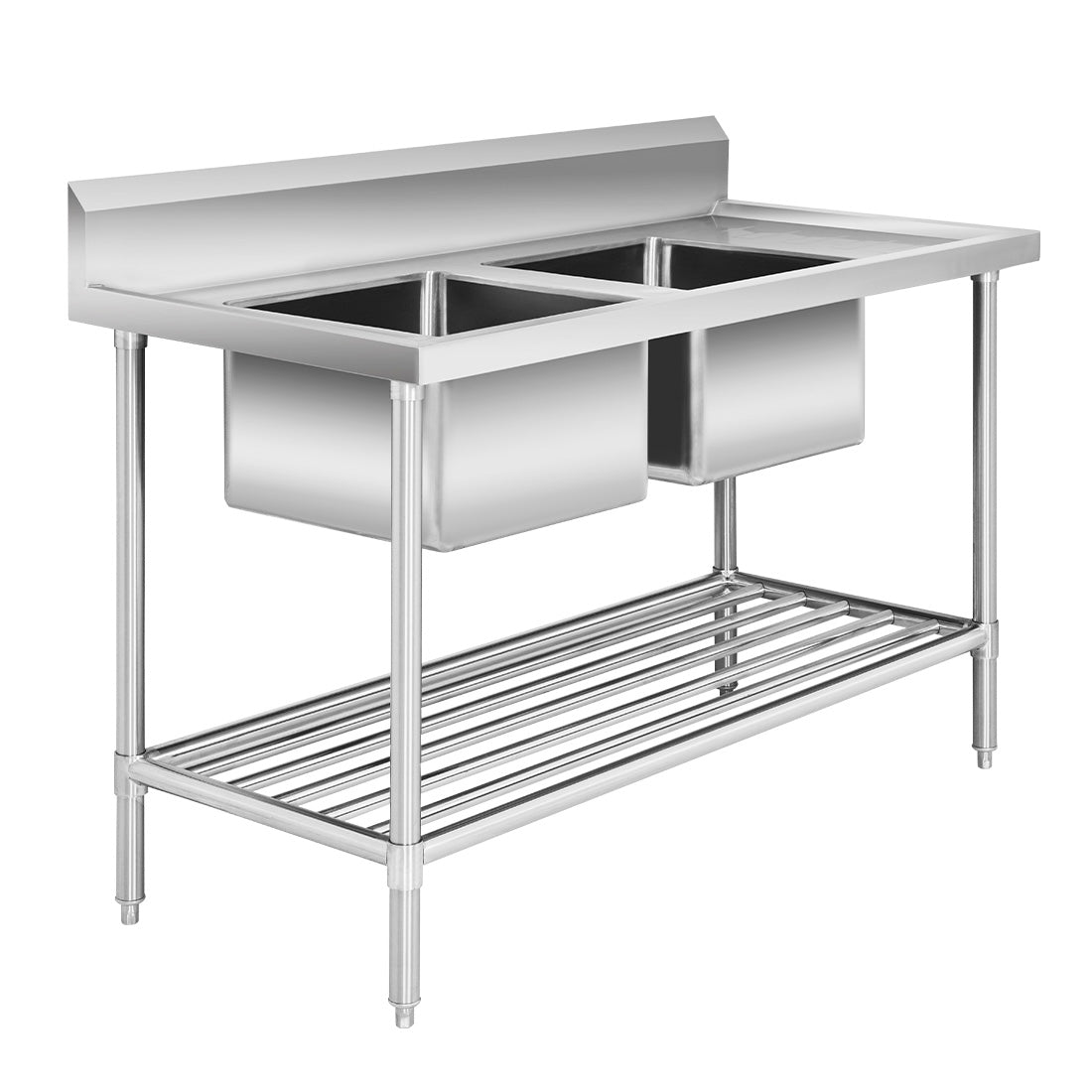

Modular Systems DSB7-1500L/A Double Left Sink Bench with Pot Undershelf

Overview

Modular Systems DSB7-1500L/A Double Left Sink Bench with Pot Undershelf 1500mm

The Modular Systems DSB7-1500L/A is a 1500mm wide all-stainless steel double sink bench with left bowl positioning and an integrated pot undershelf, purpose-built for the rigorous demands of commercial kitchens, restaurants, cafes, and catering operations. Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, it combines fully welded and polished bowls, a reinforced benchtop, and a bevelled enclosed splashback into a cohesive, hygienic workstation that maximises both washing capacity and preparation space.

Supplied flat-packed with an instruction manual and all necessary tools, the bench is engineered for quick and straightforward on-site assembly. The pot undershelf can be substituted at no extra cost with a leg brace to suit different kitchen layouts, and optional lockable castor kits are available for mobile applications. A two-year parts-only warranty backs the unit, providing confidence for long-term commercial use.

Key Benefits

• Dual bowls deliver generous washing and rinsing capacity side by side, reducing bottlenecks during high-volume service periods.
• Fully welded, polished bowl interiors and exteriors resist corrosion, simplify cleaning, and support strict food safety and hygiene standards.
• The 15mm wet edge and fully enclosed bevelled splashback contain water splashes, keeping surrounding work surfaces dry and reducing slip hazards.
• XPS board lining and stainless steel 'U' channel reinforcements under the benchtop add structural rigidity, preventing flex under heavy loads.
• Fully adjustable polished stainless steel disc feet compensate for uneven floors, ensuring a stable and level work surface in any kitchen environment.
• Flat-packed supply with included tools and instructions cuts installation time and freight costs, getting the bench operational faster.
• Free choice between a pot undershelf or a leg brace at time of order allows the bench to be configured to suit available space and workflow needs.
• Optional lockable castor kits enable the unit to be repositioned easily for cleaning or layout changes without specialist tools.
• SUS304 (18/8) stainless steel construction throughout ensures long service life and compliance with commercial kitchen material standards.

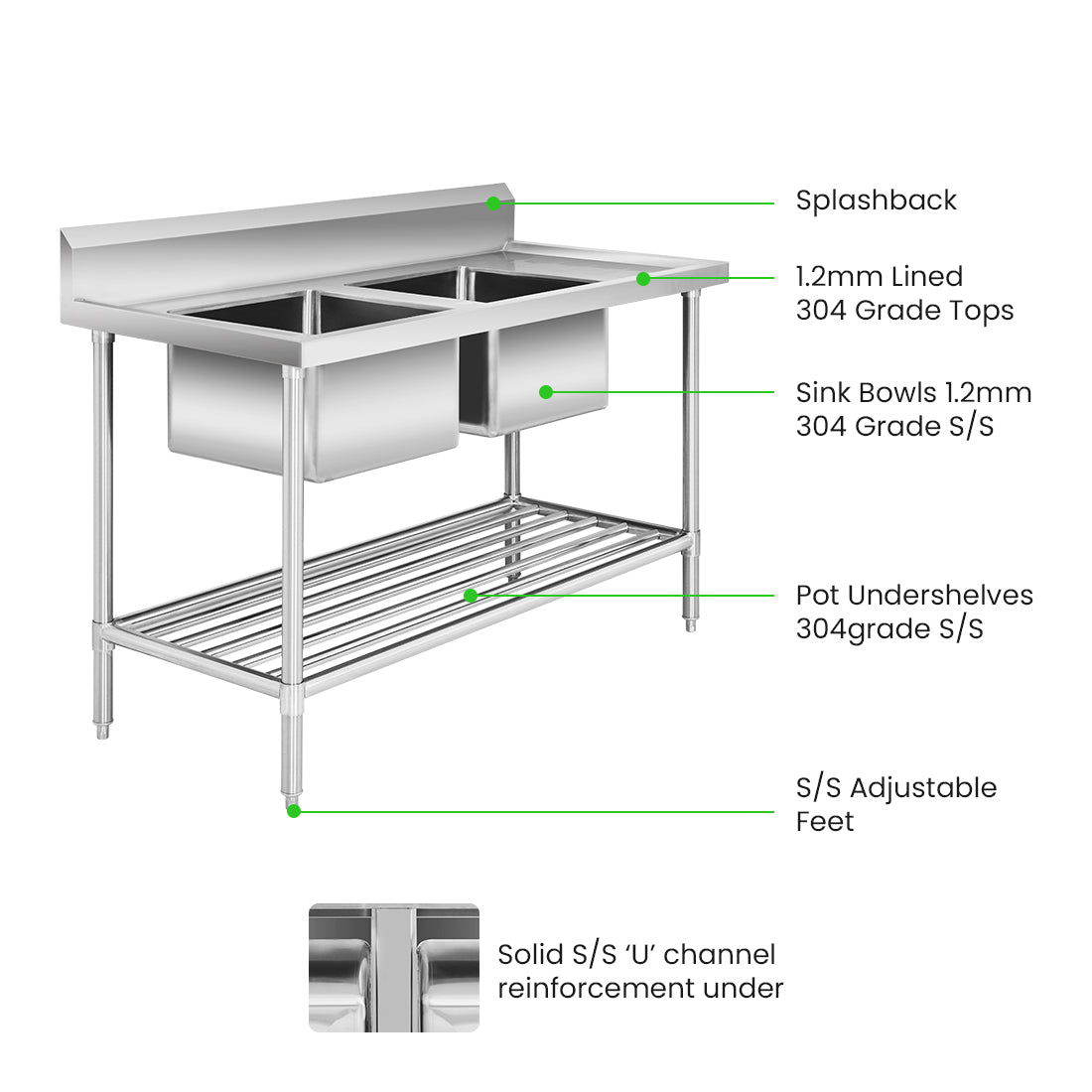

Key Features

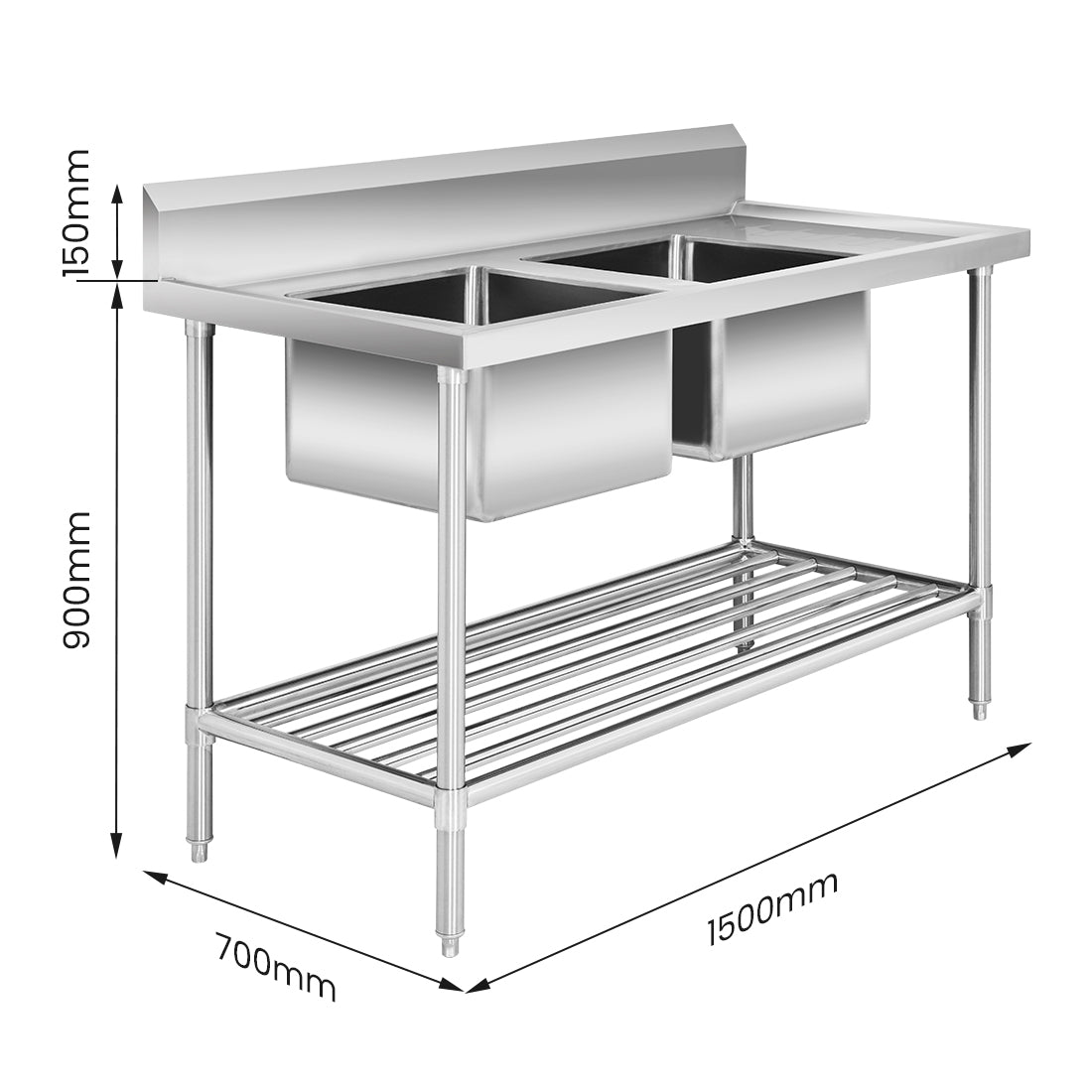

• Overall dimensions: 1500mm wide x 700mm deep x 900mm high
• Bowl size: 450mm wide x 450mm deep x 300mm high per bowl
• Left bowl positioning with double bowl configuration
• 90mm diameter drain hole per bowl for efficient water drainage
• 1.2mm SUS304 (18/8) stainless steel used throughout construction
• Bowls are fully welded and polished inside and out

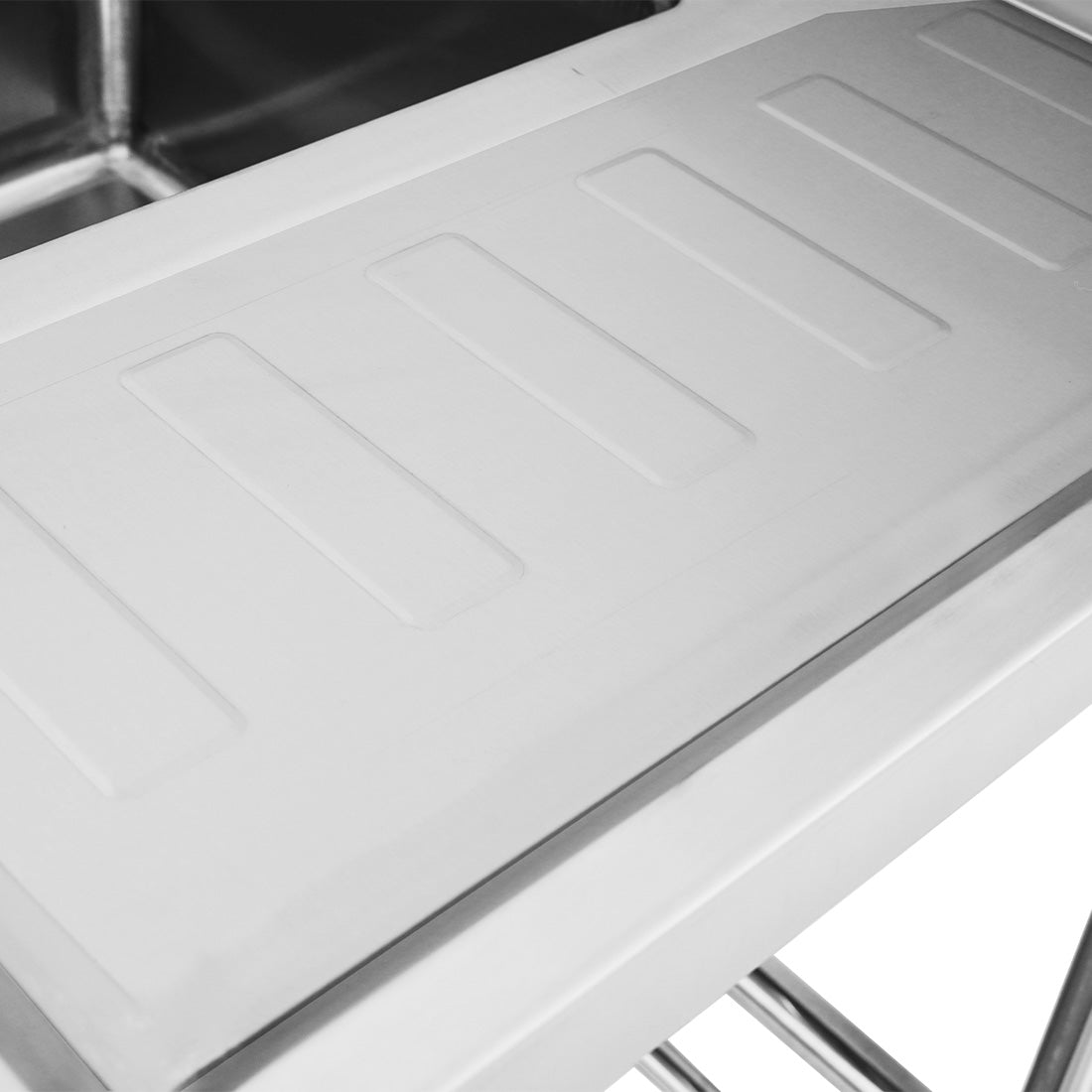

• 15mm wet edge to contain water on the bench surface
• Benchtop lined with 15mm thick XPS board and a stainless steel panel for insulation and rigidity
• Special stainless steel 'U' channel reinforcements beneath the benchtop; number of channels increases with bench width
• Splashback: stainless steel backed, 150mm high, 40mm thick, bevelled and fully enclosed
• Four legs per bench (1.2mm stainless steel, 42mm diameter tube)
• Fully adjustable stainless steel polished disc feet

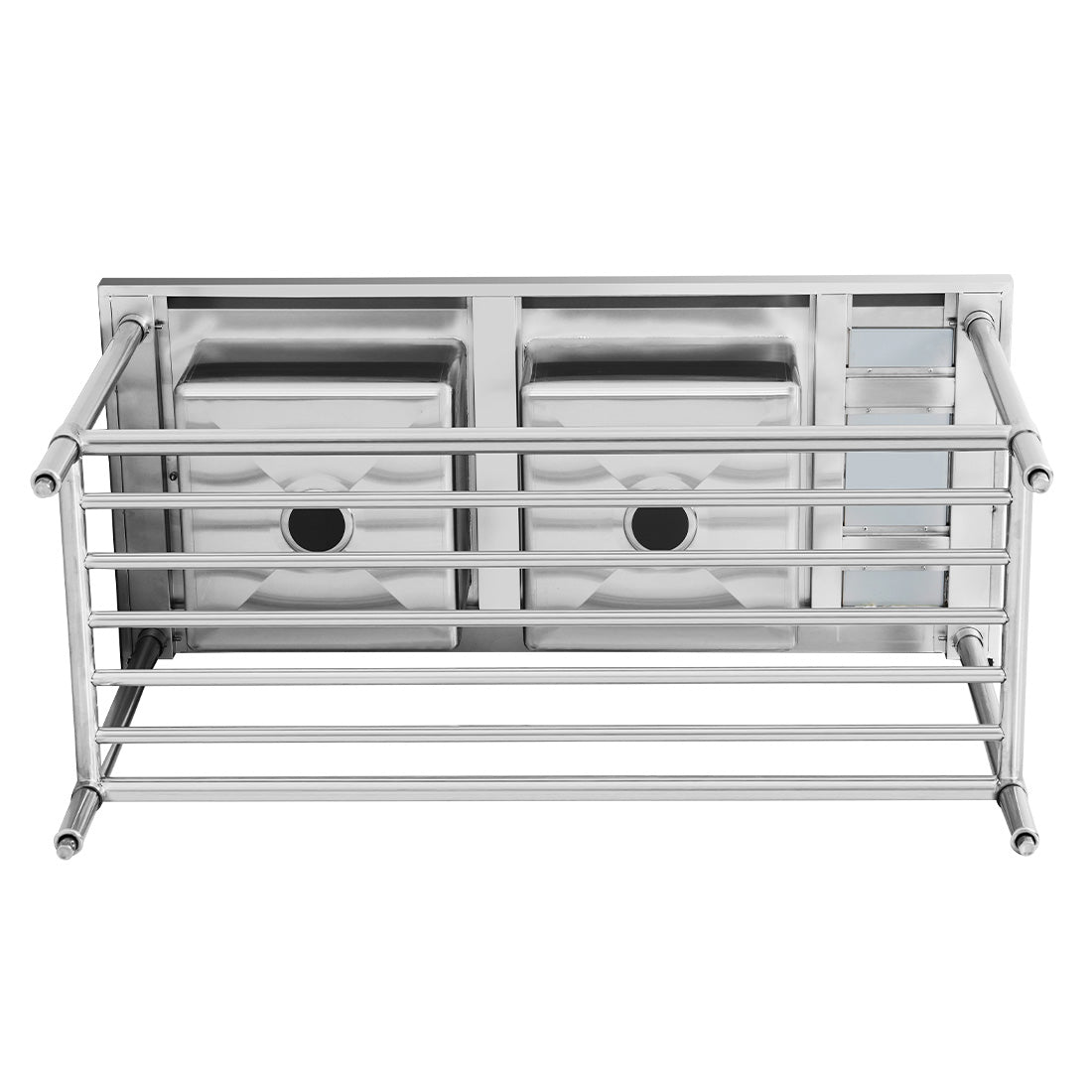

• Pot undershelf included: 1.2mm SUS304 (18/8) stainless steel; outer frame 38mm diameter x 1.2mm tube; inner tubes 25mm diameter x 1mm tube with 40mm spacing
• Free optional leg brace available as an alternative to the pot undershelf; must be specified at time of order
• Optional lockable castor kits available separately
• Supplied flat-packed for ease of transport and handling
• Includes instruction manual and assembly tools
• Specially designed for quick and simple assembly
• 2-year parts-only warranty

Specifications

• Width (mm): 1500
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 47.1
• Packed Width (mm): 770
• Packed Depth (mm): 1570
• Packed Height (mm): 530
• Shipping Weight: 50
• Warranty (months): 2 Years Parts Only
• Capacity (Litres): 1500
• Splash Back: 150 mm high × 30 mm thick
