Modular Systems DSB7-1500R/A Modular System Double Right Sink Bench with Pot Undershelf

Overview

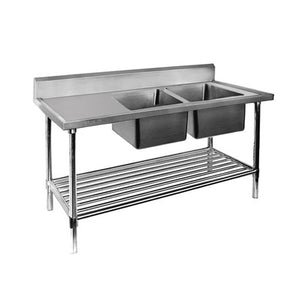

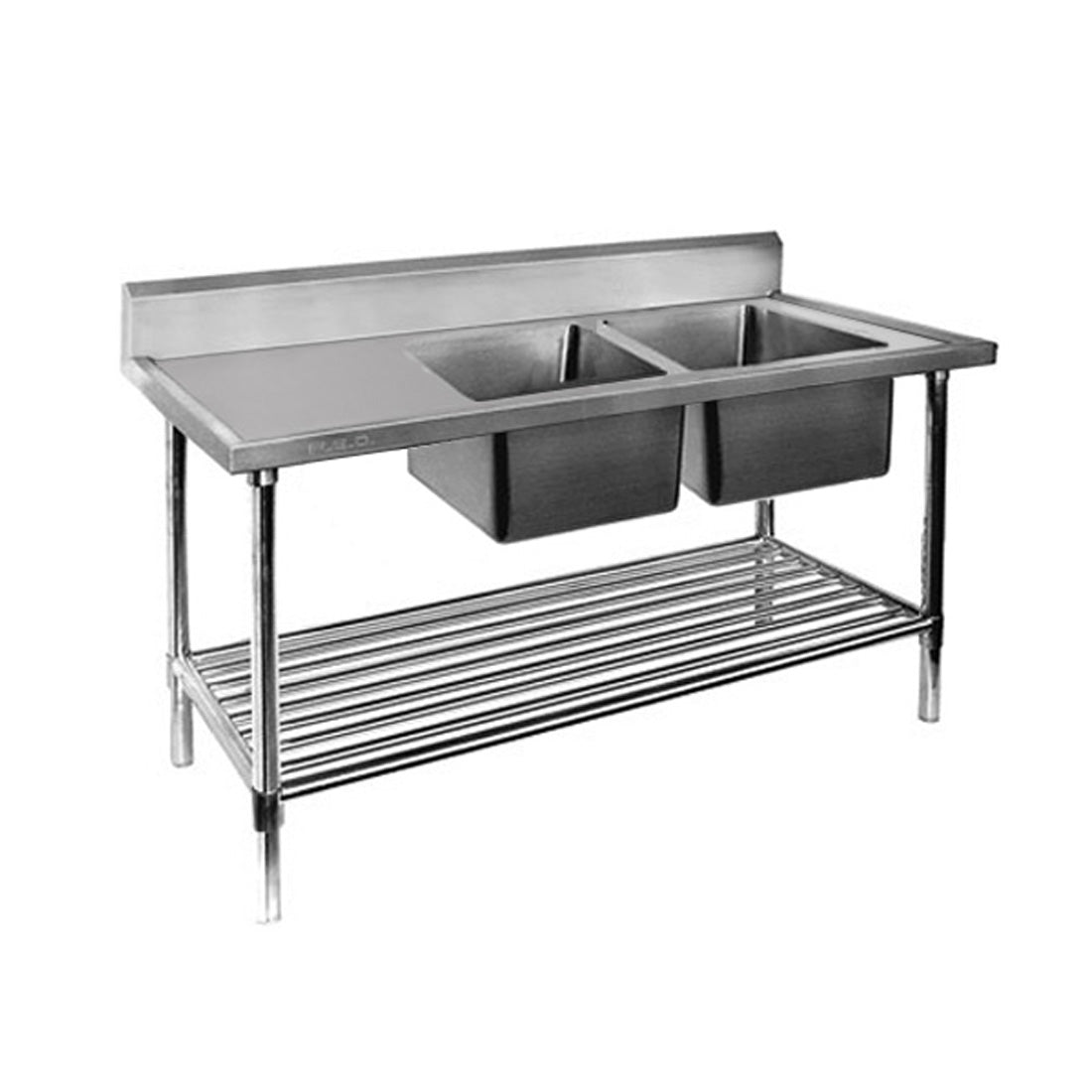

Modular Systems DSB7-1500R/A Double Right Sink Bench with Pot Undershelf 1500mm

The Modular Systems DSB7-1500R/A is a 1500mm wide commercial stainless steel sink bench featuring a double right bowl configuration, an integrated pot undershelf, and a full-length splashback. Constructed throughout from 1.2mm SUS304 (18/8) stainless steel, it delivers the durability, hygiene, and structural integrity required for demanding commercial kitchen environments including restaurants, cafés, and catering facilities.

Supplied flat-packed with all necessary tools and an instruction manual, this bench is engineered for quick and straightforward on-site assembly. The benchtop is lined with 15mm XPS board and reinforced with stainless steel 'U' channel supports, while fully welded and polished bowls, adjustable disc feet, and a bevelled enclosed splashback combine to create a practical, long-lasting washing and preparation station.

Key Benefits

• Fully welded, seamless bowl construction eliminates crevices where bacteria can accumulate, supporting hygiene compliance in food service operations.
• The 15mm wet edge between bowls minimises water spillage onto the benchtop and surrounding floor areas during busy service periods.
• Flat-pack supply with included tools and instruction manual means the bench can be transported efficiently and assembled on-site without specialist tradespeople.
• Fully adjustable polished stainless steel disc feet allow the bench to be levelled precisely on uneven kitchen floors, preventing rocking and improving stability.
• XPS board lining and stainless steel 'U' channel reinforcements under the benchtop provide structural rigidity that increases with bench size, ensuring long-term load-bearing performance.
• The integrated pot undershelf maximises storage space beneath the bench, keeping bulky cookware accessible and the surrounding area tidy.
• An optional free leg brace can be substituted for the pot shelf on order, giving operators flexibility to configure the bench to suit their specific workflow.
• Optional lockable castor kits allow the bench to be repositioned easily for cleaning or kitchen reconfiguration without requiring tools.
• A 150mm high, bevelled, fully enclosed stainless steel splashback protects walls and surrounding surfaces from water and food splatter.

Key Features

• Overall dimensions: 1500mm wide x 700mm deep x 900mm high
• Double sink configuration with right bowl positioning
• Each bowl measures 450mm wide x 450mm deep x 300mm high
• Each bowl features a 90mm diameter drain hole
• Bowls are fully welded and polished both inside and out
• 15mm wet edge design between bowls to reduce water spillage
• Benchtop constructed from 1.2mm SUS304 (18/8) stainless steel
• Benchtop lined with 15mm thick XPS board and a stainless steel panel for insulation and rigidity
• Special stainless steel 'U' channel reinforcements under the benchtop; number of channels increases with bench width
• Splashback: stainless steel backed, 150mm high, 30mm thick, bevelled and fully enclosed
• Legs: 1.2mm stainless steel, 42mm diameter tube
• 4 legs standard on this bench (2100mm and 2400mm wide benches use 6 legs)
• Fully adjustable polished stainless steel disc feet that complement the leg finish
• Pot undershelf constructed from 1.2mm SUS304 (18/8) stainless steel
• Pot undershelf outer frame: 38mm diameter x 1.2mm wall tube
• Pot undershelf inner tubes: 25mm diameter x 1mm wall tube with 40mm spacing
• Free optional leg brace available as a substitute for the pot shelf; must be specified at time of order
• Lockable castor kits available as an optional accessory
• Supplied flat-packed for ease of transport and storage
• Comes with an instruction manual and all required assembly tools
• Designed for quick and simple assembly
• Complies with HACCP and Australian Watermark standards
• 2-year parts only warranty

Specifications

• Width (mm): 1500
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 49.5
• Packed Width (mm): 770
• Packed Depth (mm): 1570
• Packed Height (mm): 530
• Shipping Weight: 48.5
• Warranty (months): 2 Years Parts Only
