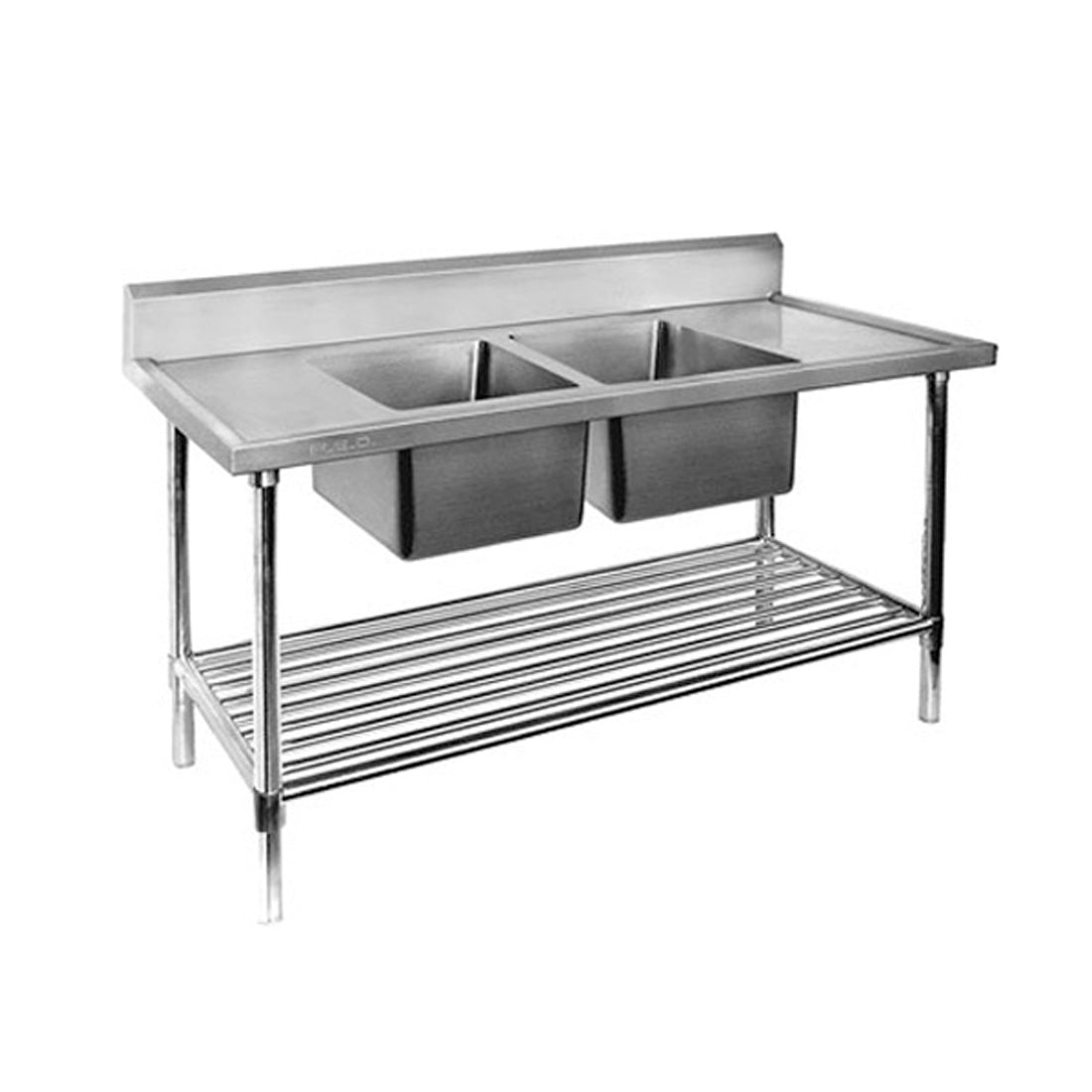

Modular Systems DSB7-1800C/A Double Centre Sink Bench with Pot Undershelf

Overview

Modular Systems DSB7-1800C/A Double Centre Sink Bench with Pot Undershelf 1800mm

The Modular Systems DSB7-1800C/A is a 1800mm wide all-stainless steel double centre sink bench purpose-built for demanding commercial kitchen environments. Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, it features two fully welded and polished bowls positioned centrally along the bench, a 15mm wet edge to contain water, an insulated benchtop with XPS board lining, and a sturdy pot undershelf beneath. Every component, from the bevelled enclosed splashback to the adjustable polished disc feet, is engineered for long-term hygiene and durability in restaurants, cafes, catering facilities, hospitals, and other professional food service operations.

The unit arrives flat-packed with an instruction manual and all necessary tools included, allowing quick and straightforward on-site assembly without specialist tradespeople. A free optional leg brace can be substituted for the pot undershelf if preferred; simply specify on order. Lockable castor kits are also available as an optional accessory for facilities that require the bench to be repositioned. Backed by a 2-year parts-only warranty, the DSB7-1800C/A delivers a reliable, space-efficient washing and preparation station that supports HACCP-compliant kitchen hygiene standards.

Key Benefits

• Fully welded, inside-and-out polished bowls eliminate crevices where bacteria can harbour, making cleaning fast and supporting food safety compliance.
• Centre bowl positioning maximises usable bench surface on both sides of each sink, improving workflow efficiency during high-volume service periods.
• 15mm wet edge around each bowl contains water and splashing, keeping the bench surface drier and reducing slip hazards in busy kitchen environments.
• Flat-packed delivery with included tools and instruction manual means the bench can be transported through standard doorways and assembled on-site without specialist labour.
• Fully adjustable stainless steel polished disc feet allow precise levelling on uneven floors, ensuring a stable, rattle-free work surface.
• XPS board-lined benchtop with SUS304 stainless steel panel and concealed 'U' channel reinforcements underneath provides a rigid, impact-resistant work surface that resists flexing under heavy loads.
• Optional lockable castor kits enable the bench to be relocated easily for cleaning, kitchen reconfiguration, or compliance inspections.
• Free optional leg brace in place of the pot undershelf gives flexibility to configure the unit to suit specific storage or access requirements at no extra cost.
• Stainless steel pot undershelf keeps pots, pans, and bulky equipment close at hand beneath the sink, reducing travel time and keeping the kitchen organised.

Key Features

• Overall dimensions: 1800mm wide x 700mm deep x 900mm high
• Bowl size: 450mm wide x 450mm deep x 300mm high per bowl; two bowls, centre-positioned
• 90mm diameter drain hole per bowl for efficient water drainage
• 1.2mm SUS304 (18/8) stainless steel construction throughout
• 15mm wet edge surrounds bowls to contain water on the bench surface
• Bowls are fully welded and polished inside and out for seamless hygiene
• Benchtop lined with 15mm XPS board and stainless steel panel for rigidity and insulation
• Special stainless steel 'U' channel reinforcements under benchtop; number of channels increases with bench width
• Splashback: stainless steel backed, 150mm high, bevelled and fully enclosed
• Splashback thickness: 40mm (supplier specification)
• Legs: 1.2mm stainless steel, 42mm diameter round tube, 4 legs on 1800mm bench
• Fully adjustable stainless steel polished disc feet match leg finish and allow levelling on uneven floors
• Pot undershelf: 1.2mm SUS304 (18/8) stainless steel; outer frame 38mm diameter x 1.2mm tube; inner tubes 25mm diameter x 1mm tube with 40mm spacing
• Free optional leg brace available as substitute for pot undershelf; specify at time of ordering
• Supplied flat-packed for ease of transport and handling
• Includes instruction manual and all necessary assembly tools
• Lockable castor kits available as an optional accessory
• 2-year parts-only warranty
• Weight: 56.15kg

Specifications

• Width (mm): 1800
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 56.15
• Packed Width (mm): 770
• Packed Depth (mm): 1870
• Packed Height (mm): 530
• Shipping Weight: 55
• Warranty (months): 2 Years Parts Only
